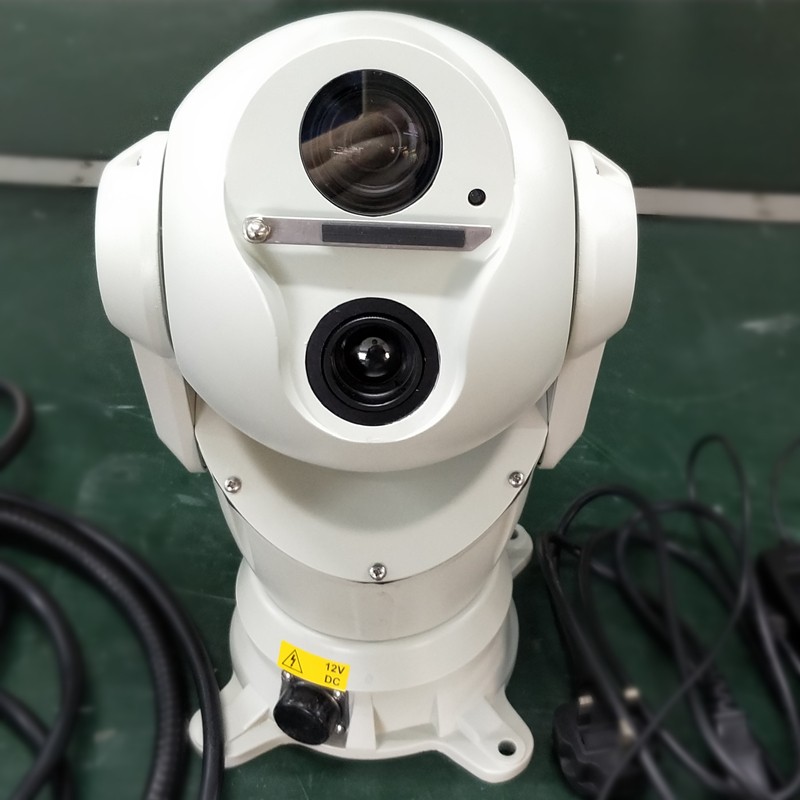

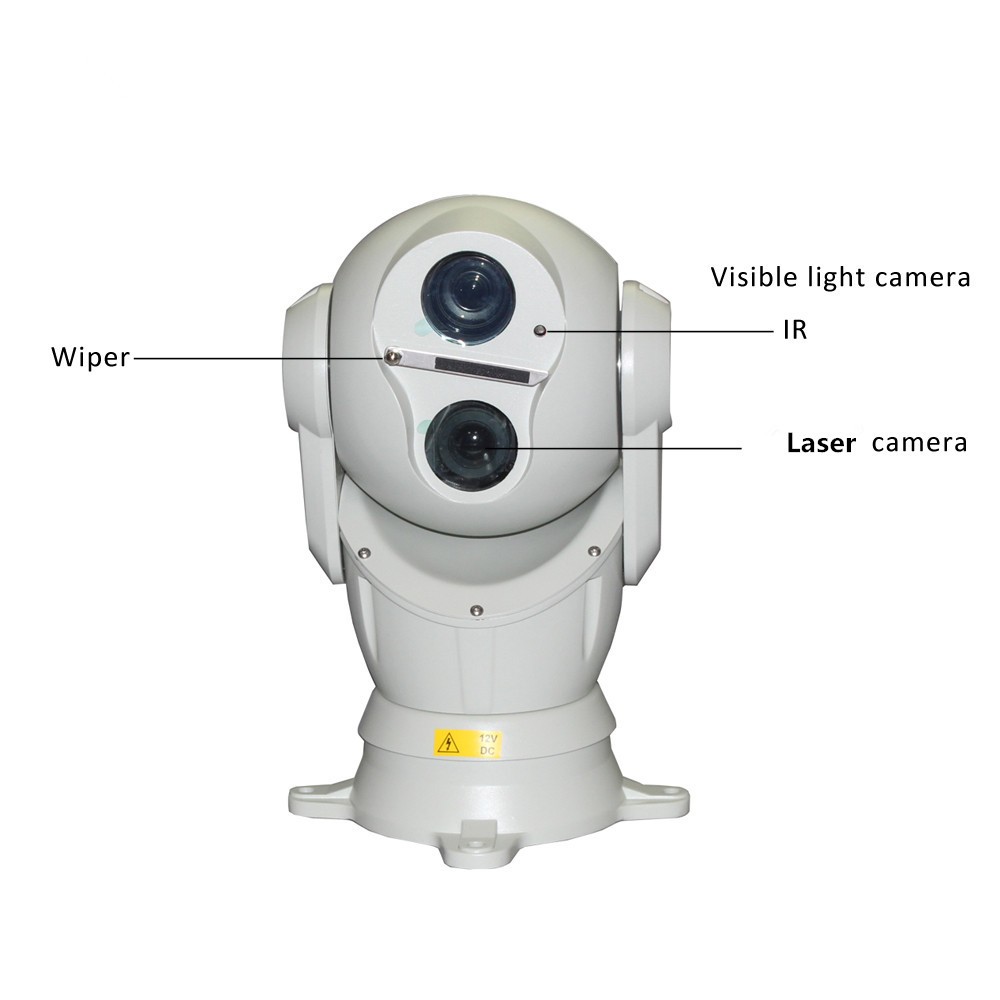

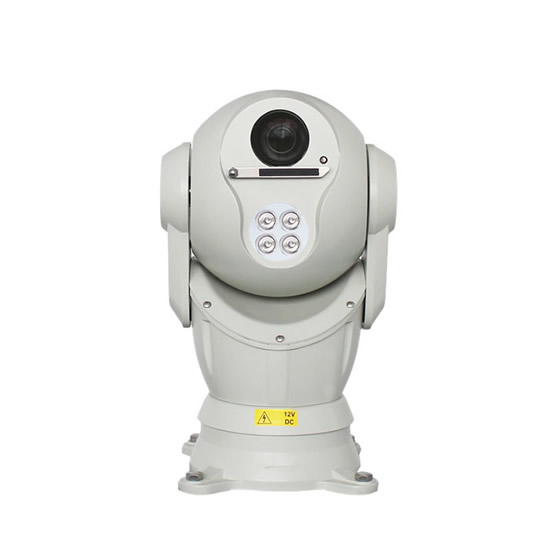

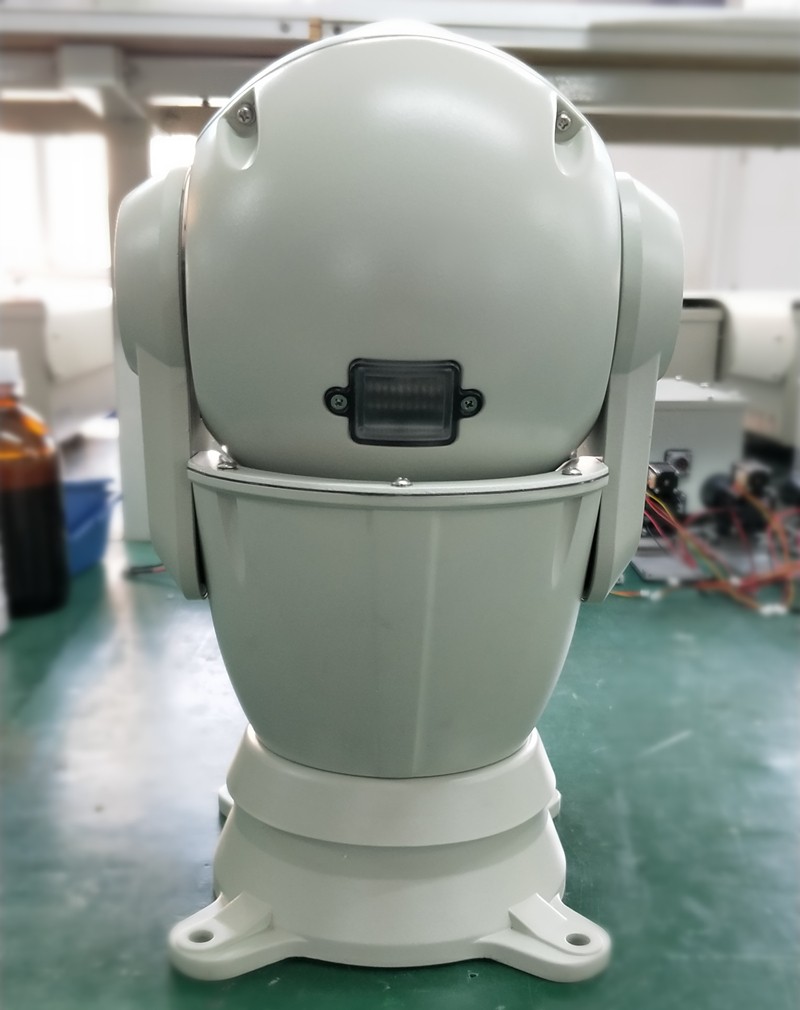

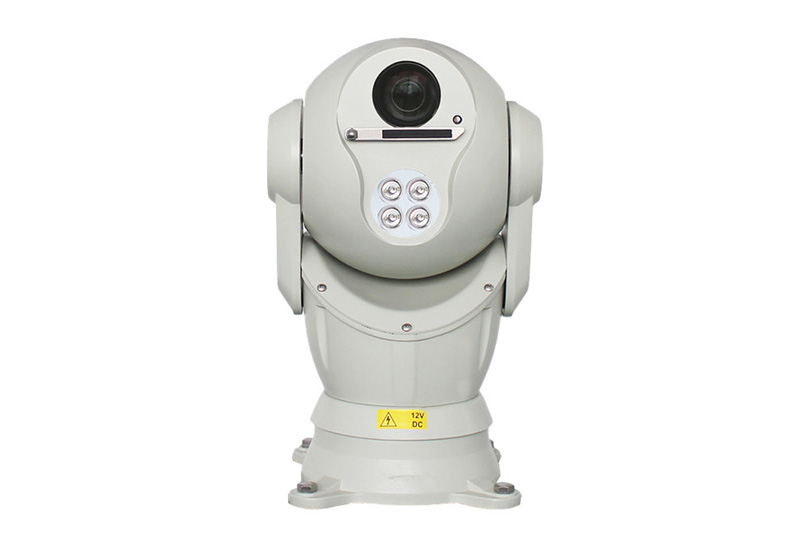

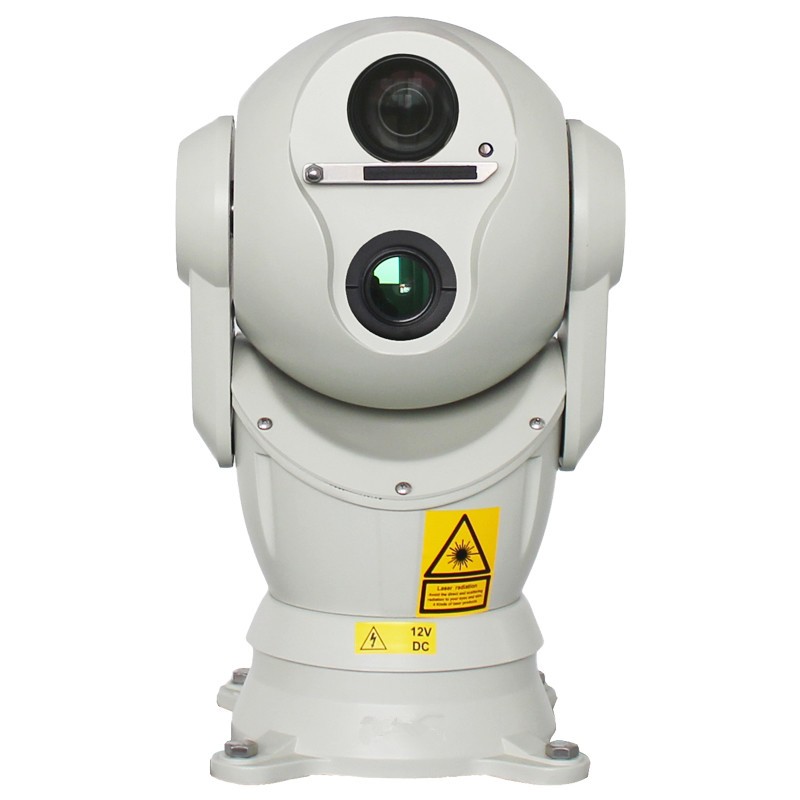

100m Night Vision Infrared PTZ camera
Product Name:
Array Infrared PTZ camera
Model: :
SHJ-ST-A-IR
SHJ-ST-HD-IR
SHJ-ST-SDI-IR
SHJ-ST-AHD(CVI/TVI)-IR
Features:
● Independent defogging and defrosting module, which truly solves the fogging of camera lens caused by temperature difference in outdoor environment
●The camera compartment uses high-quality heating parts to make the entire warehouse body work together to form an effective anti-fog and defogging pattern.
●Adopting the integrated structure of the upper and lower spindles, the PTZ camera bin and infrared bin will not be bumped and misplaced.
●SSTndard volSTge regulator module filters the insSTnSTneous unsSTble current of the vehicle to keep the gimbal sSTble
●PTZ high-speed roSTtion is smoother, low-speed roSTtion without jitter
●High-strength aluminum alloy design, protection grade IP66
●PTZ full range of dead angle monitoring
IR: PTZ adopts imported array infrared lights，Multi-angle work together, the working life up to 30,000 hours, night vision is 100meters
HD IP: PTZ support mainstream megapixel digiSTl high-definition movement and HD SENSOR HD picture capture, compatible with mainstream HD platform and seamless docking, the maximum support 1080P output, support for dual-stream and high-definition capture, support IE browser
SDI HD：PTZ support megapixel HD movement, HD-SDI digiSTl interface output, megapixel digiSTl high-definition image lossless, real-time transmission, no delay, a variety of resolution adjusSTble (1080p / 60 1080p / 30 1080p / 25 720p / 60 720p / 30 720p / 25)
Coaxial HD：PTZ support common AHD / CVI / TVI coaxial HD movement, and support coaxial HD DVR output, the image without any coding compression, full real-time high-definition picture coaxial transmission
Application:

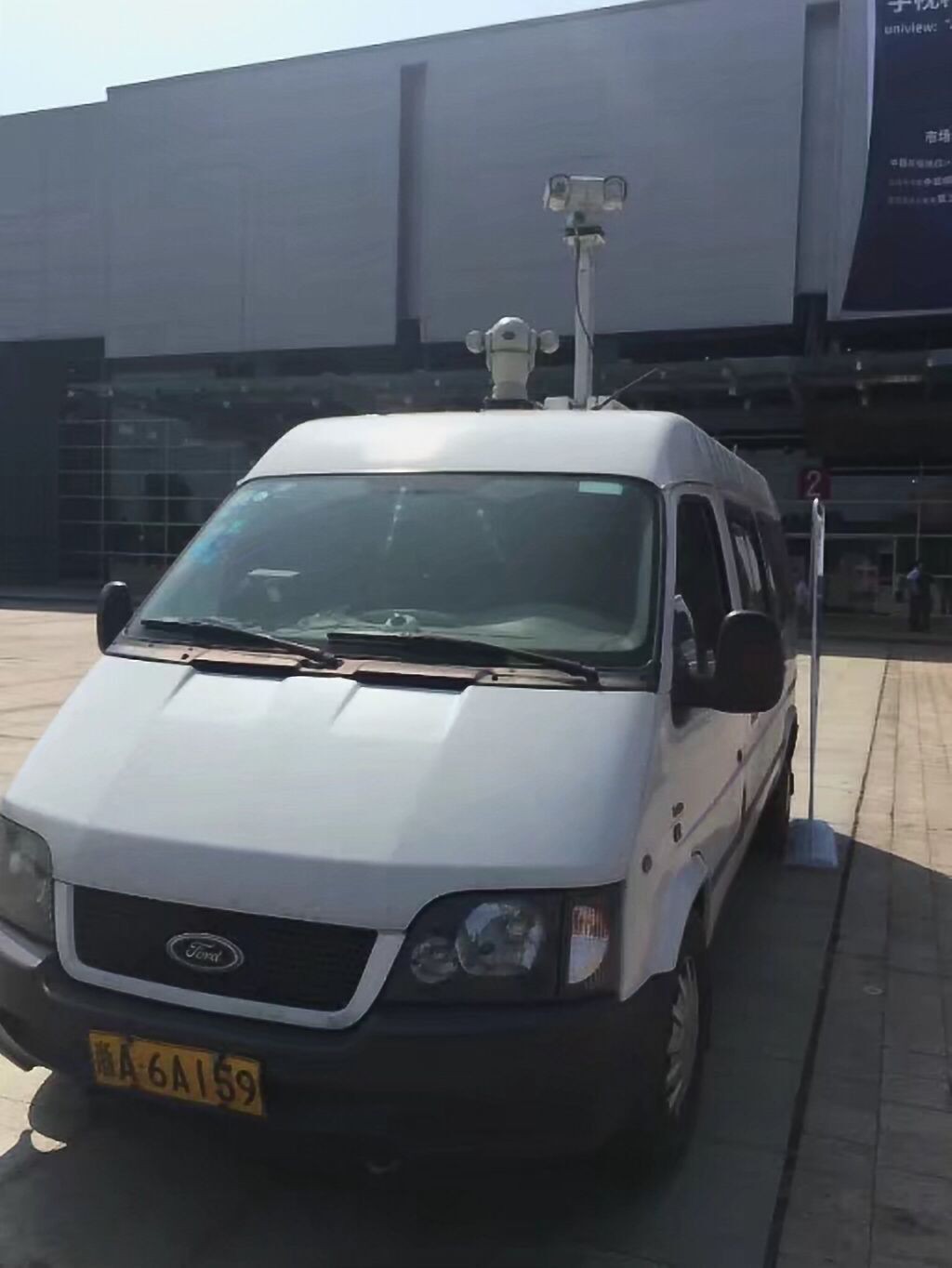

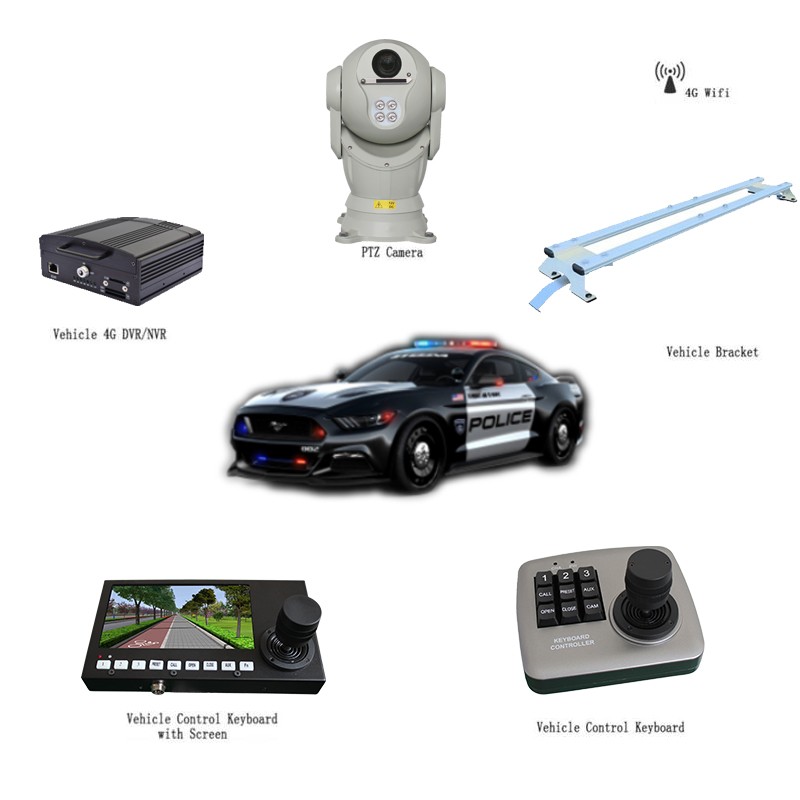

110 police mobile law enforcement / fire emergency command / 120 emergency command system / road mobile patrol / urban management law enforcement / special vehicle mobile inspection
PTZ Function | |
Pan preset speed | 150°/s |
Tilt preset speed | 120°/s |
Pan control speed | 0°~100°/S |
Tilt control speed | 0°~90°/S |
Pan range | 360°endless rotation |
Tilt range | +90° ~ -60° |
Control Way | RS485, Built-in 16 protocol, Baud Rate from 2400Bps to 19200Bps optional |
Relative Humidity | Less than 90% |
IP Grade | IP66 |
Working Temperature | -35° ~ +55° |
Impact resisSTnce requirements | ≥4G |
Wiper | Support |
InsSTllation | Variety of insSTllation according to the environment |
Weight | 6kg |
Network parameters： | |
Video Compression | H.264/H.265 |
Audio Compression | G.722.1、G.711-a law、G.711-u law、MP2L2、G.726、AAC、PCM |
Compression output rate | 32Kbps—12Mbps |
Support Protocol | TCP/IP、HTTP、DHCP、DNS、DDNS、RTP、RTSP、PPPoE、SMTP、NTP、UPnP |
Interface Protocol | ONVIF/PSIA/CGI/ISAPI |
Storage Function | Support MicroSD storage |
Intelligent Arlarm | Motion detection, mask alarm, full memory, memory misSTke |

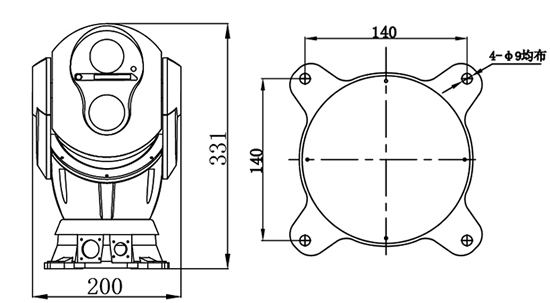

Measures and Diagram：(mm)
