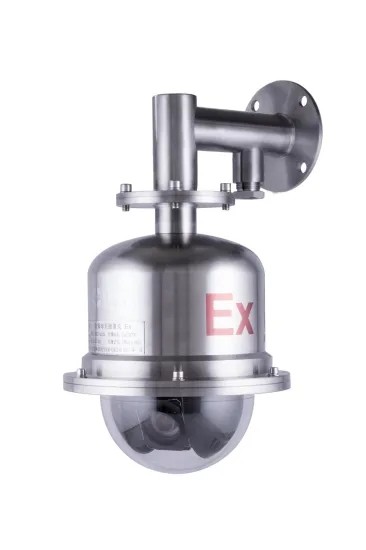

2.0 Megapixel Explosion-Proof HD High-Speed Dome Camera
(SHJ-TB100Q)

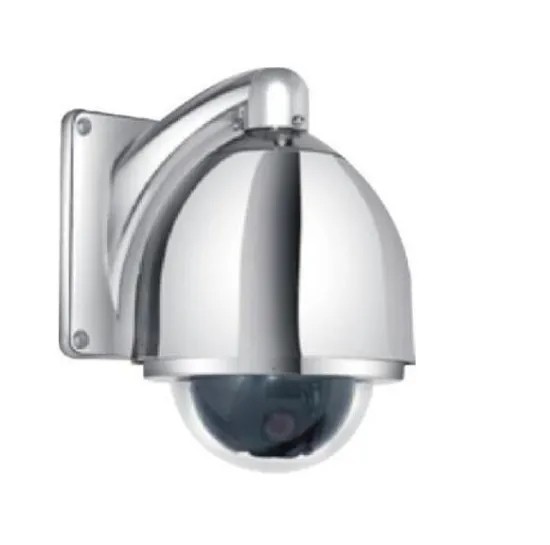

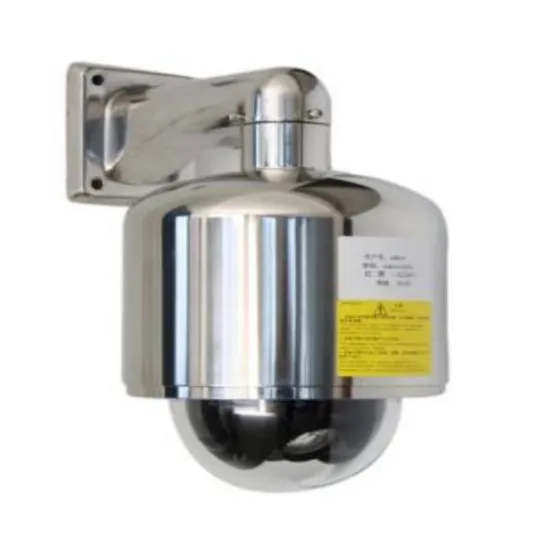

Three housing can be optional
1. Applicable to Zone 1, Zone 2 Explosive Gas Environment; Zone 21, Zone 22 Flammable Dust Environment
2.Transparent cover with aerpspace materials, impact resistance of more than 7J, light transmission rate of 99% or more
3.Large space structure design, built-in power supply, fiber modules and so on.
4.Movement works smoothly, ultra-low noise, no jitter on the screen
5.Conductive slip ring, the use of Japan ALPS structure, life of 10 million turn
6.Using TVS board lightning protection technology, optional quick connector, with hot swap function.
Technical Parameter
Model | SHJ-BAQ2018B | |
Certificate specification | ||
Manufacture standard | GB3836.1-2010、GB3836.2-2010、GB12476.1-2013 、GB12476.5-2013 | |
Explosion-proof mode | ExdⅡCT6Gb,ExtD A21 IP66 T80℃ | |
Protect grade | IP66（2m/2h) | |
Working temperature(℃) | -40℃～60℃ | |
Cable in/out device | 1pc G3/4’’/ M25 explosion-proof conduit interface | |
Mechanical parameter | ||
Material | 304//316L Stainless Steel | |
Transmission structure | Conductive slip ring, High strength alluminum alloy(LY12)gear, With precision synchronous belt | |
Pan/Tilt rotation angle(°) | Pan: 360°unlimited position；Tilt：-2°~ 90°(180°automatically flip) | |
Rotation speed(°/s) | Pan：0.2°~ 160°/s；Tilt：120°/s；Line scanning: 25°/s | |
Cruise track | 8 pcs cruise track(16 / 8 preset position/group，each preset position run speed and dwell time can be set) | |
Dimensions | Φ240×340 | |
Weight | 14Kg | |
Electrical parameter | ||
Analog | Image sensor | 1/3-type Interline Transfer CCD |
Optical | 23/36 zoom | |
HR | 700TVL(Color)，720TVL(White black) | |
Network | Image sensor | 1/2.8" Progressive Scan CMOS |
Optical | 20/30 zoom | |
Pixels | 1.3/2.1MP | |
Network protocol | TCP/IP、HTTP、DHCP、DNS、DDNS、RTP、RTSP、PPPoE、SMTP、NTP、UPnP、SNMP、FTP、802.1x、QoS、HTTPS、IPv6 (SIP、SRTP、optional) ONVIF | |
Video compression comccoococompression | H.264/MPEG4/MJPEG | |
Control interface | Communication | RS-485 、PELCO-D，P protocol (According to clients requirements) |
Baud rate | Baud rate 2400 / 4800 / 9600 / 19200（Optional） | |
Lightning protection | 1 channel power supply/1 channel network/1 channel RS485/1 channel video | |
Power supply | Voltage | AC24V、AC110V、AC220V、AC230V |
Consumption | 30W | |
