ATEX Explosion proof CCTV Camera
Model: SHJ-AEP100-B
Product Introduction:

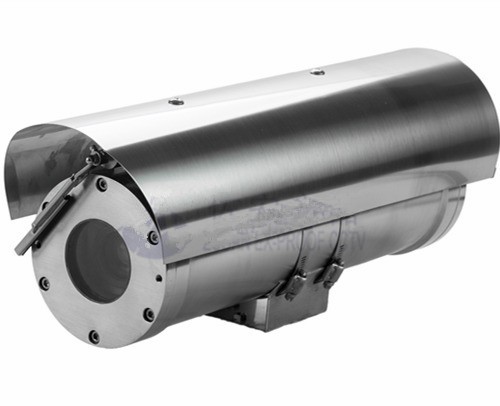

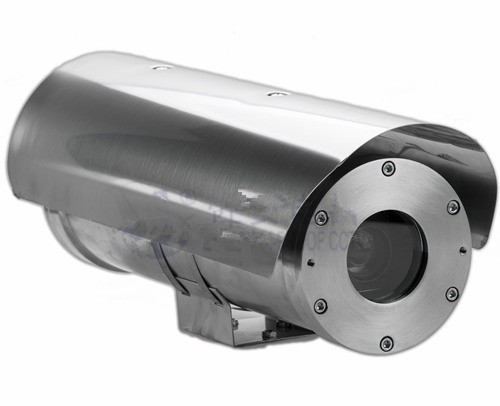

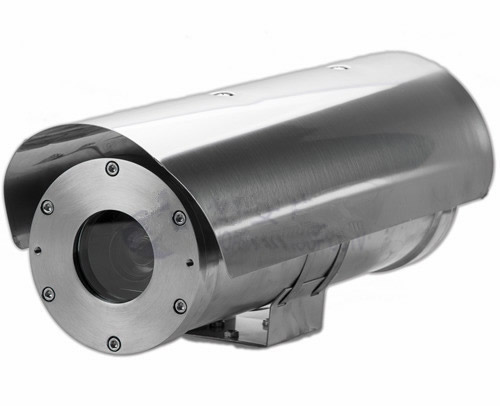

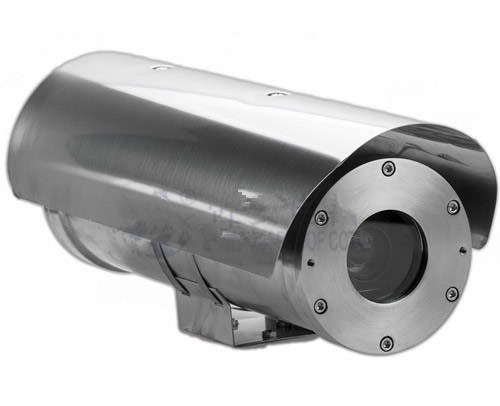

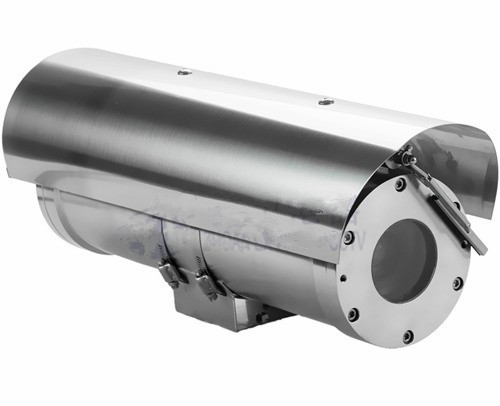

SHJ-AEP100-B is ATEX and IECEx certified explosion proof CCTV Camera. Equipped with sunshade, the SHJ-AEP100-B can be applied for industry hazardous outdoor locations. Bigger enclosure can load client bullet camera, zoom camera and box camera.
Certificate
ATEX Certificate Mark | Ⅱ2G Ex db ⅡC T6 Gb, Ⅱ2D Ex tb ⅢC T80 ºC Db |
Certificate | ATEX, IECEx |
Standards | IEC/EN60079 |
Mechanical
Housing | Stainless steel 304 or 316L |
Surface | Optional electro-polish or painting |
Ingress protection | IP68 (1.2m/ 45min) |
Cable thread hole | M25X1.5, or M27×1.25、 |
Electrical
Voltage | AC100V～AC240V or AC24V |
Power | 15W/25W (with thermostat) |
Surge Protect | Optional, TVS6000V surge protect |
Optical Fiber output | Optional, multimode or single mode |
Optical Video signal | 1-way video output |
Optional network signal | RJ45 |
Optical Audio | 1-way input, 1-way output |
Optical Alarm | 2-way alarm input, 1-way alarm output |
Address code | 0/1 |
Trail cable | 2m integrated cable |
Ambient
Ambient temperature | -25°～+60°/-40℃～+60℃ |
Air pressure | 80Kpa to 110Kpa |
Relative Humidity | ≦95% (no condensation) |
Communication
Communication type | RS485 |
Protocol | Pelco-D, Pelco-P |
Communicate Rate | 2400~19200bps adjustable |
485 Communication | Support |
General
Model | SHJ-AEP100-A | SHJ-AEP100-B |
Sun-shield | Yes | Optional |
Wiper | Yes | No |
Overall dimension | 524*179*215mm | 524*179*208mm |
Weight | 15.5kg | 12.5kg |
