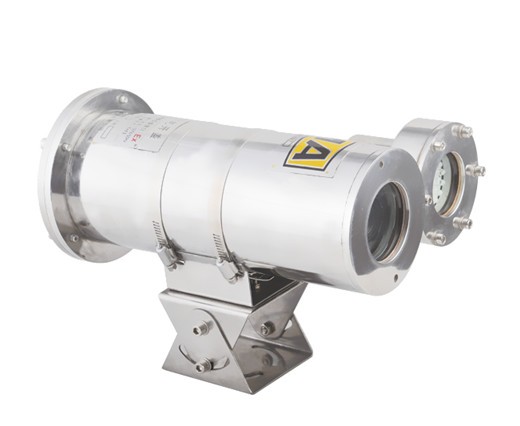

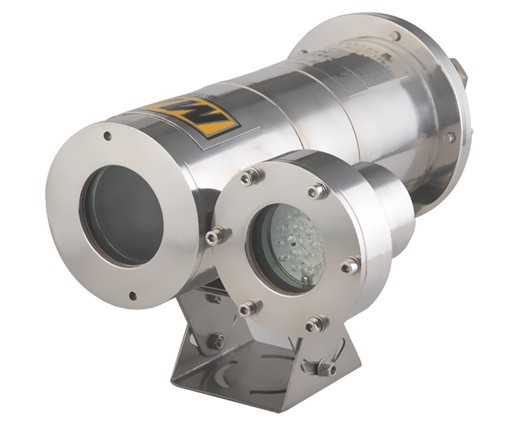

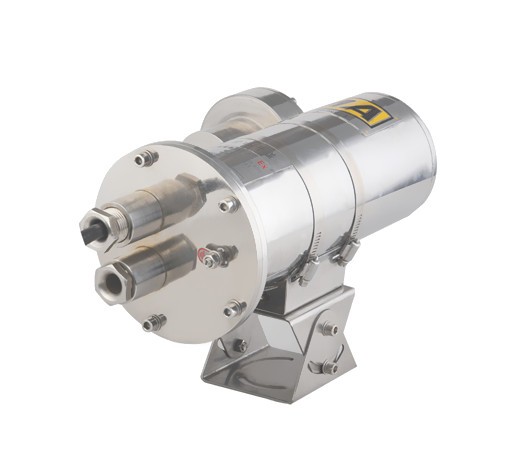

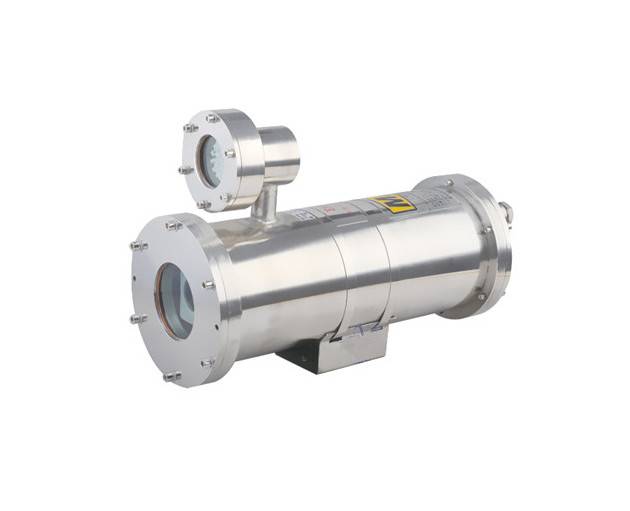

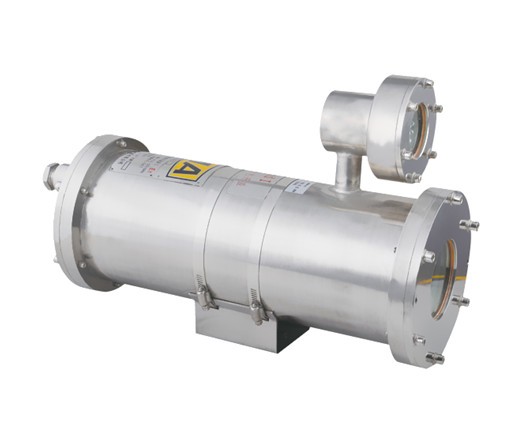

Coal Mining CCTV camera with cold light
Model: SHJ-CM167
Product Introduction:
1.SHJ-CM167 is coal mining CCTV camera with cold light
2.Housing material: stainless steel 304
3.Overall dimension: 430*165*266mm
4.Weight: 12kg
5.Mounted: Wall, pole
Certificate
Certificate Mark | ExdI |
Certificate No | 2102008 |
MA No | MAK100017/MAK100015 |
Standards | GB3836-2000 Q/320412ZAF018-2009 |
Mechanical
Housing | Stainless steel 304 |
Weight | 12kg |
Cable thread hole | 2 pcs G3/4 or NPT3/4 |
Overall dimension | 430*165*266mm |
Mounted | wall, pole |
Electrical
Voltage | AC127V, 50Hz |
Input supply | 30VA |
Work wave | 1310nm |
Optical singal power | -12~4 DBM |
Transmit distance | 20km |
Optiical singal ouptut | FC connector |
Video output | optical access, internet access |
Cold lights | 30m distance |
Ambient
Ambient temperature | 0 to +40℃ |
Air pressure | 80Kpa to 106Kpa |
Relative Humidity | ≦95% (no condensation) |
Analog Camera
Image Sensor | 1/3" interline-transfer CCD |
Effective pixel | PAL 976*582 NTSC 976*494 |
Min. Illumination | Color 0.04Lux B/W: 0.004Lux |
Shutter Time | 1/50(1/60) sec~ 1/10,000 sec |
Day&Night | Auto ICR |
Horizontal resolution | 700TVL (color), 720TVL (B&W) |
S/N ratio | ＞50dB（AGC off） |
Network camera
Image Sensor | 1/2.8" interline-transfer CCD |
Effective pixel | 1.3MP, 2MP, 3MP |
Min. Illumination | Color 0.05Lux B/W: 0.01Lux |
Day&night | Auto/ Color/ BW |
S/N ratio | ＞52dB（AGC off） |
Gain | off/ lower/ higher |
White Balance | Auto/ Manual/ Auto tracking white balance/ indoor/outdoor/ Sodium Lamp/ Fluorescent Lamp |
3D DNR | Support |
BLC | ON/OFF |
Image setting | Mirror, Saturation, Brightness, Contrast, Sharpness adjustable |
Optical zoom | 20X / 30X |

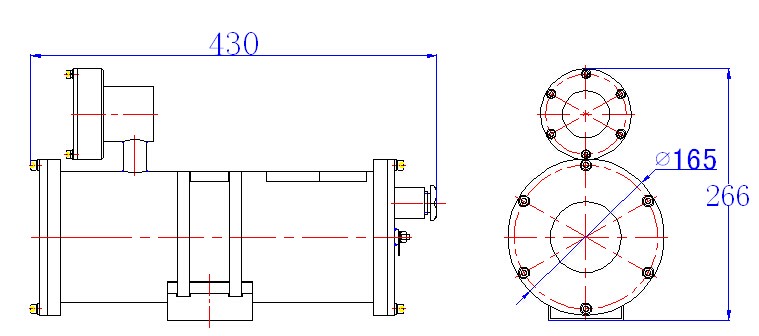

Drawing: (mm)
