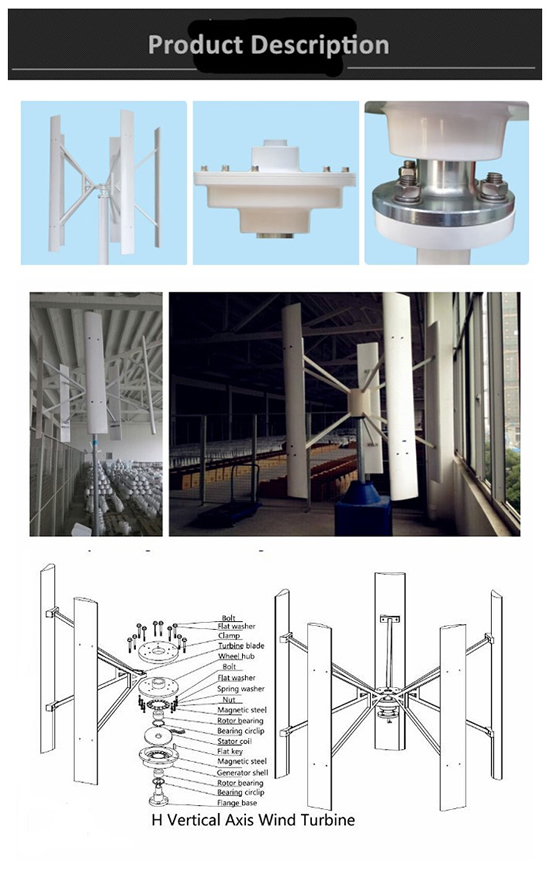

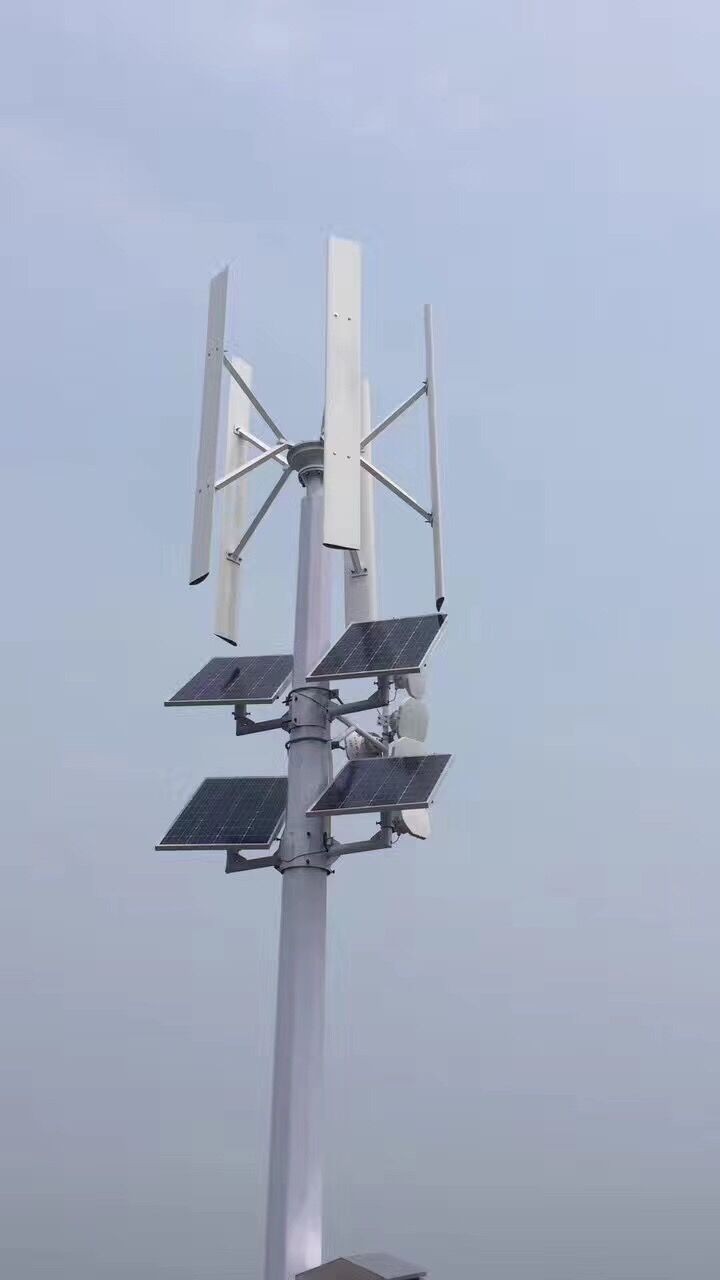

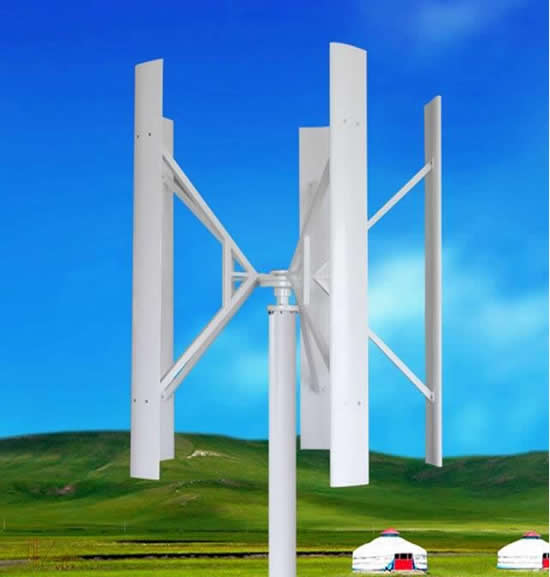

H-Type Vertical Axis Wind turbine(100W-800W)
Product advantages
1.Low start up speed, high wind energy utilization.

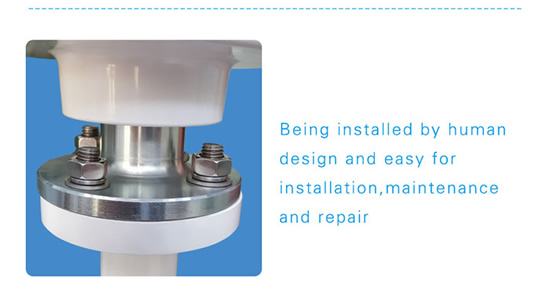

2.Easy installation, tube or flange connection optional.

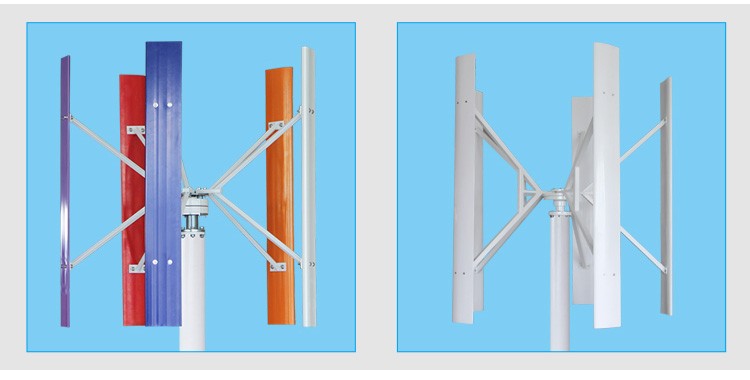

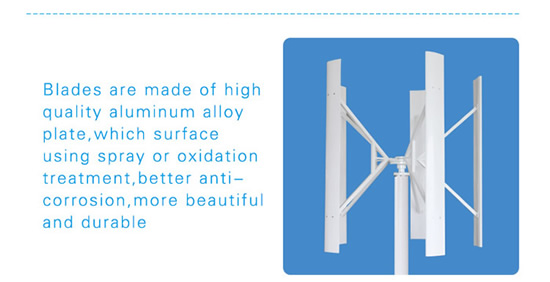

3.Blades using new art of precision injection molding , matched with optimized
aerodynamic shape and structure,which enhance the wind energy utilization and
annual output.
4.Body of casting aluminum alloy, with 2 bearings swivel , making it survive stronger
wind and run more safely.

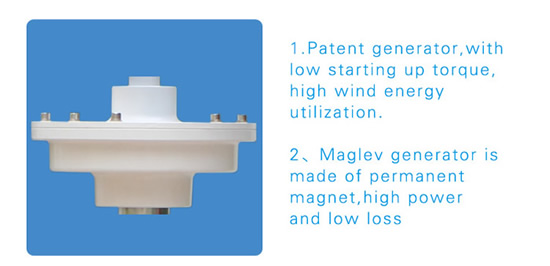

5.Patented permanent magnet ac generator with special stator,effectively reduce torque,
well match the wind wheel and generator, and ensure the performance of whole system.
6.Controller, inverter can be matched according to customers’ specific needs.
Prameter Data:
Total power | 100w | 200w | 300w | 400w | 500w | 600w | 800w | |
Blade diameter | 0.8m | 0.8m | 1.0m | 1.0m | 1.6m | 1.8m | 2m | |
Blade high | 1m | 1.2m | 1.3m | 1.4m | 1.8m | 2m | 2.2m | |
Blades number | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |
Rotor blade material | Aluminum alloy | |||||||
Rated speed | 12m/s | 12m/s | 12m/s | 12m/s | 12m/s | 12m/s | 12m/s | |
Rated power | 100w | 200w | 300w | 400w | 500w | 600w | 500w | |
Max power | 120w | 220w | 330w | 420w | 515w | 610w | 530w | |
Rated voltage | 12/24v | 12/24v | 12/24v | 12/24v | 12/24v | 48v | 48v | |
Start up wind speed | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | |
Security wind speed | 35m/s | 35m/s | 35m/s | 35m/s | 35m/s | 35m/s | 35m/s | |
Generator | Maglev generator | |||||||
