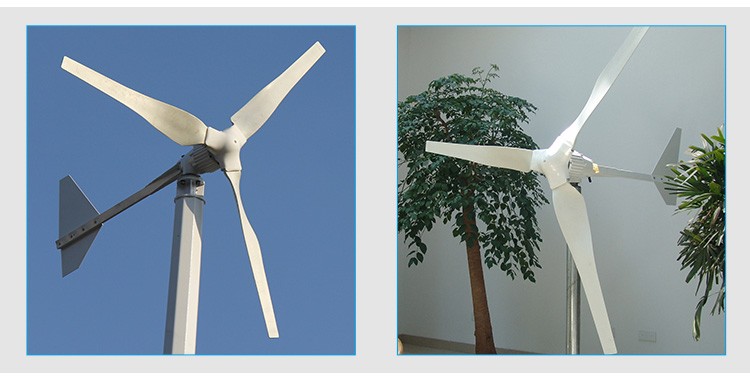

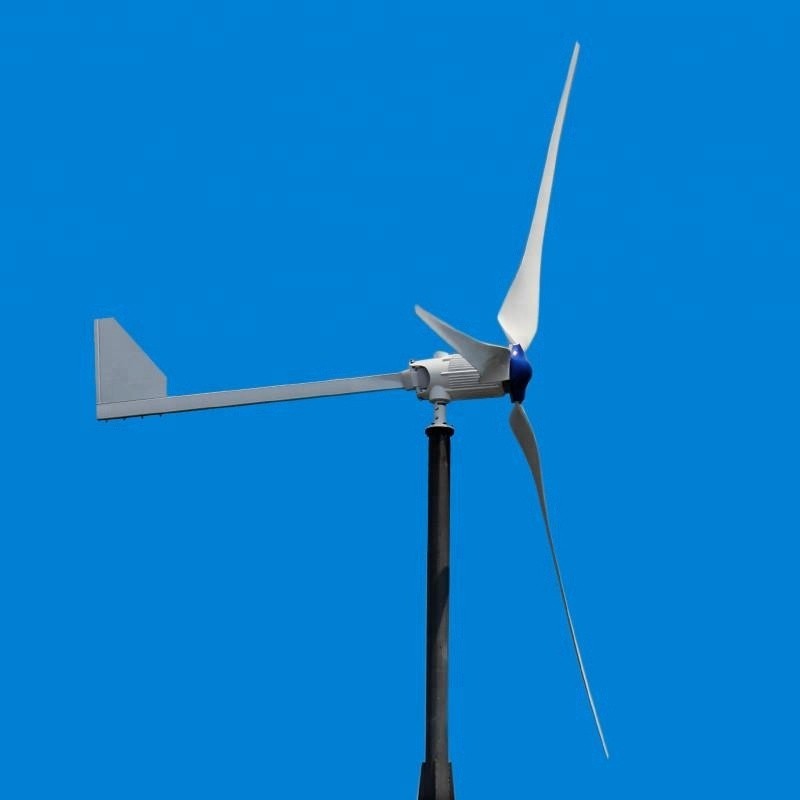

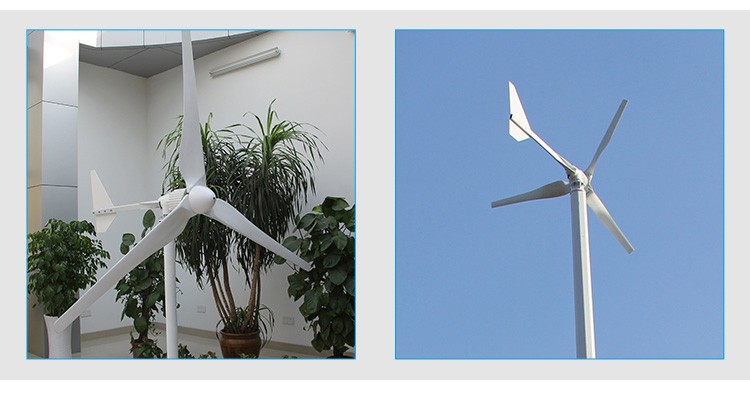

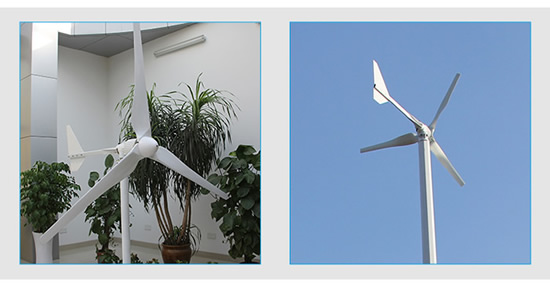

Horizontal Wind turbine 100W-700W
Features:
1.Carbon steel body, compact, safe

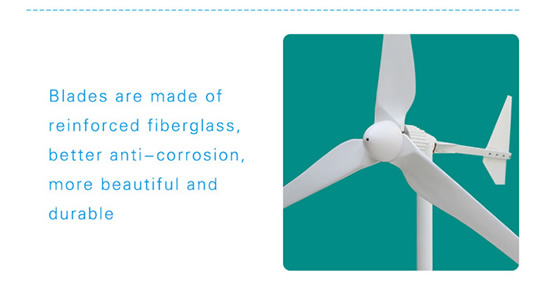

2.Reinforced glass fiber blades,matched with optimized aerodynamic shape and structure,which enhance the wind energy utilization and annual output.

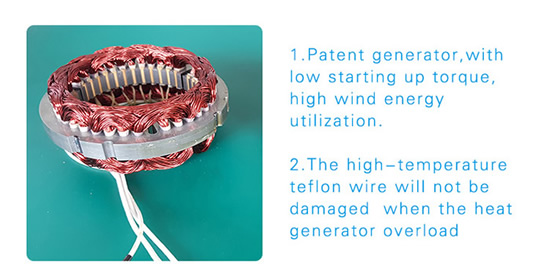

3.Patented permanent magnet ac generator with special stator,effectively reduce torque, well match the wind wheel and generator, and ensure the performance of whole system.
4.Tail adopts mechanical yaw technique, making it survive storm and run safely
5.With epoxy zinc rich primer and polyurethane anti-corrosion treatment,be ultraviolet-proof, acid rain resistant, salt resistant
6.Controller,inverter can be matched accroding to customers’ specific needs
Parameter Data:
Model | SHJ-NEG100P |
Rated Power(w) | 100w |
Max Power(w) | 140w |
Rated Voltage（v) | 12/24v |
Rated rotated speed(r/m) | 600r/m |
Top net weight(kg) | 3.1kg（6.8lb） |
Output Current | AC |
Start Torque(N*M)： | 0.08Nm |
generator | 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |

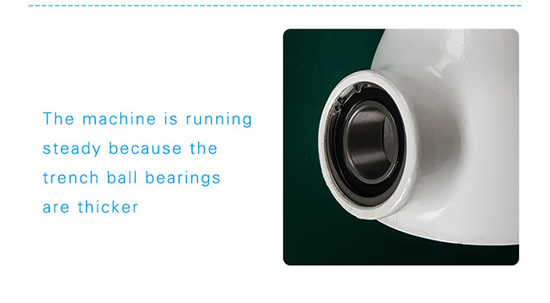

Bearing | HRB or for your order |
Shaft Material | stainless steel |
Shell Material | aluminum alloy |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Working temperature | -40℃ - 80 ℃ |
Model | SHJ-NEG200S |
Rated Power(w) | 200w |
Max Power(w) | 240w |
Rated Voltage（v) | 12/24v |
Rated rotated speed(r/m) | 600r/m |
Top net weight(kg) | 3.4kg |
Output Current | AC |
Start Torque(N*M)： | 0.12Nm |
generator | 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | stainless steel |
Shell Material | aluminum alloy |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Working temperature | -40℃ - 80 ℃ |
Model | SHJ-NEG300M |
Rated Power(w) | 300w |
Max Power(w) | 345w |
Rated Voltage（v) | 12/24v |
Rated rotated speed(r/m) | 600r/m |
Top net weight(kg) | 4.3kg |
Output Current | AC |
Start Torque(N*M)： | 0.28Nm |
generator | 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | stainless steel |
Shell Material | aluminum alloy |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Working temperature | -40℃ - 80 ℃ |
Model | SHJ-NEG400M |
Rated Power(w) | 400w |
Max Power(w) | 435w |
Rated Voltage（v) | 12/24v |
Rated rotated speed(r/m) | 600r/m |
Top net weight(kg) | 4.5kg |
Output Current | AC |
Start Torque(N*M)： | 0.32Nm |
generator | 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | stainless steel |
Shell Material | Aluminum alloy |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Working temperature | -40℃ - 80 ℃ |
Model | SHJ-NEG500M2 |
Rated Power(w) | 500w |
Max Power(w) | 536w |
Rated Voltage（v) | 12/24/48v |
Rated rotated speed(r/m) | 600r/m |
Top net weight(kg) | 6.1kg |
Output Current | AC |
Start Torque(N*M)： | 0.42Nm |
generator | 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | stainless steel |
Shell Material | Aluminum alloy |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Working temperature | -40℃ - 80 ℃ |
Model | SHJ-NEG600M2 |
Rated Power(w) | 600w |
Max Power(w) | 636w |
Rated Voltage（v) | 12/24/48v |
Rated rotated speed(r/m) | 600r/m |
Top net weight(kg) | 6.3kg |
Output Current | AC |
Start Torque(N*M)： | 0.52Nm |
generator | 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | stainless steel |
Shell Material | Aluminum alloy |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Working temperature | -40℃ - 80 ℃ |
Model | SHJ-NEG700M2 |
Rated Power(w) | 700w |
Max Power(w) | 720w |
Rated Voltage（v) | 12/24/48v |
Rated rotated speed(r/m) | 800r/m |
Top net weight(kg) | 6.7kg |
Output Current | AC |
Start Torque(N*M)： | 0.58Nm |
Rated Torque (N*M) | 18.5Nm |
generator | 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | Stainless steel |
Shell Material | Aluminum alloy |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Working temperature | -40℃ - 80 ℃ |
