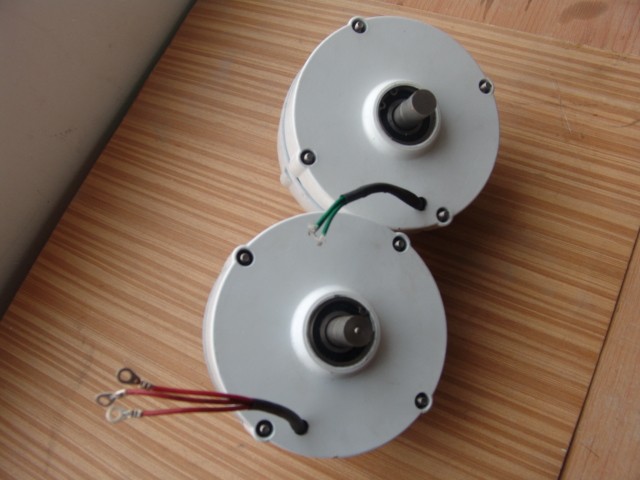

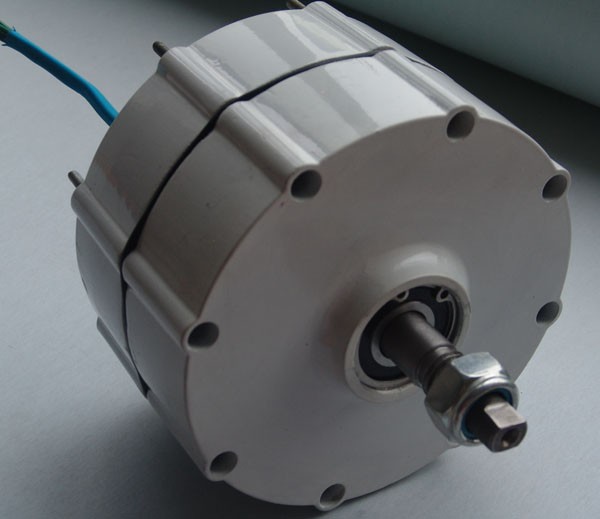

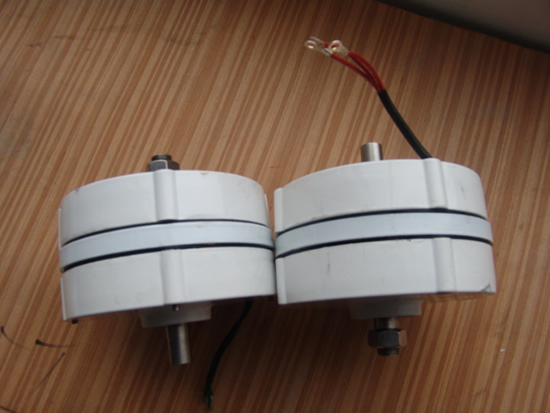

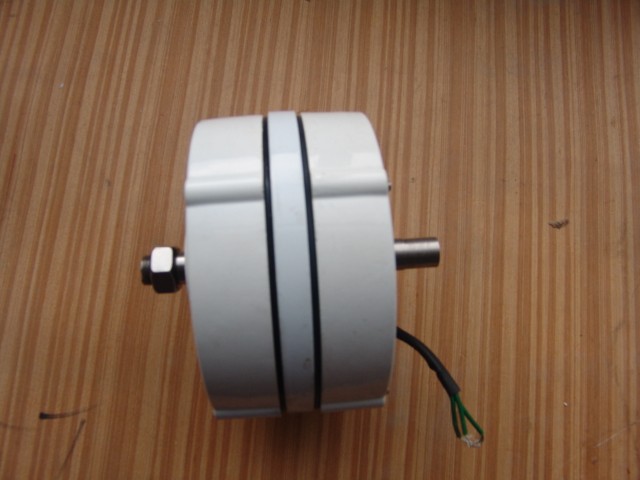

Horizontal Wind turbine 100W-700W
Features:
• Low start up speed
• Low torque
• Gear-less, direct drive, low RPM generator.
• For use in all environments
• Excellent heat dissipation
• High quality bearing and magnet, easy to send out quantity of heat and keep magnetic property.
• Designed for 20-years operation life.
Parameter Data:
Model | SHJ-NEG100P |
Rated Power(w) | 100w |
Max Power(w) | 140w |
Rated Voltage（v) | 12/24v |
Rated rotated speed(r/m) | 600r/m |
Top net weight(kg) | 3.1kg（6.8lb） |
Output Current | AC |
Start Torque(N*M)： | 0.08Nm |

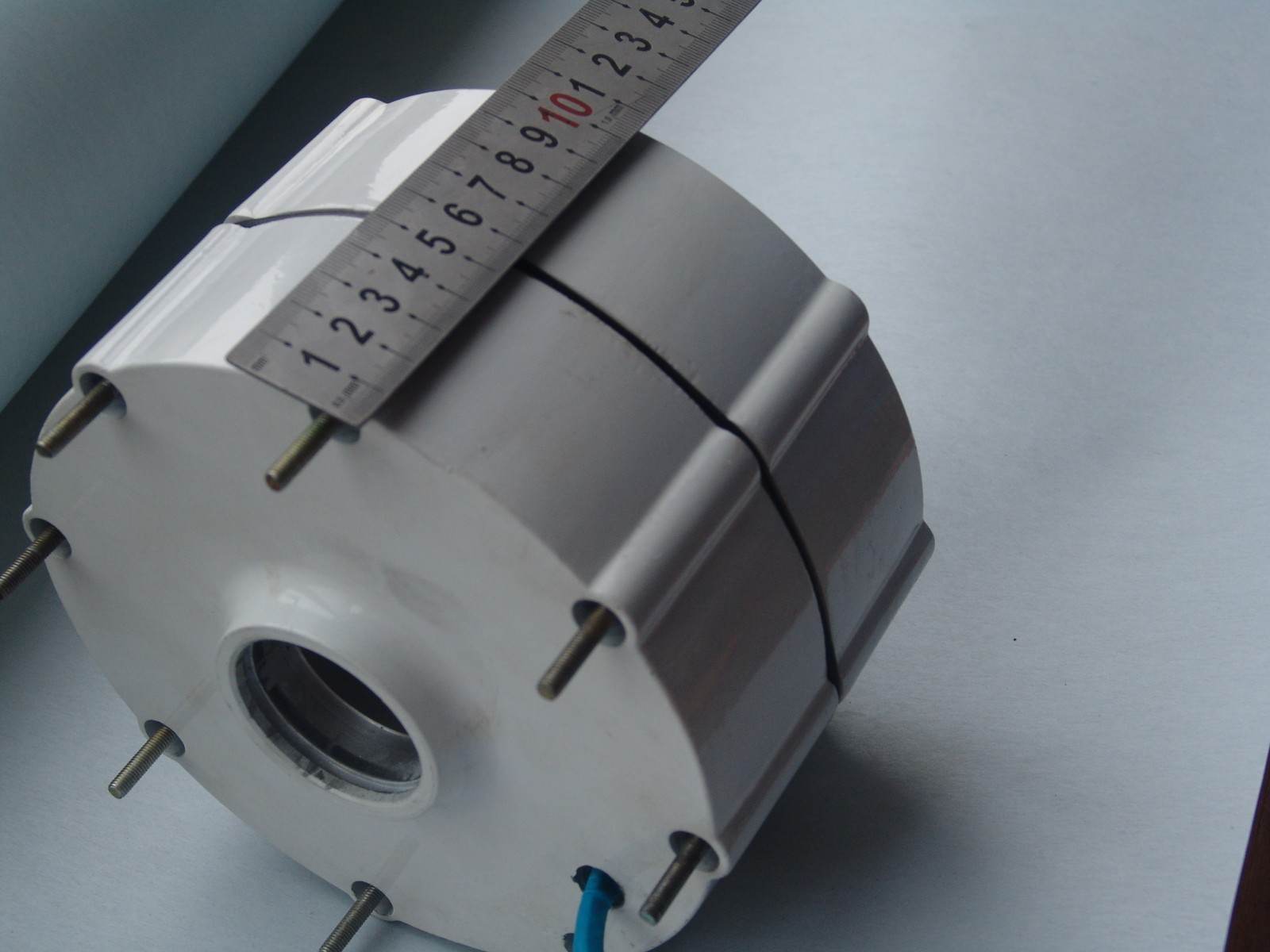

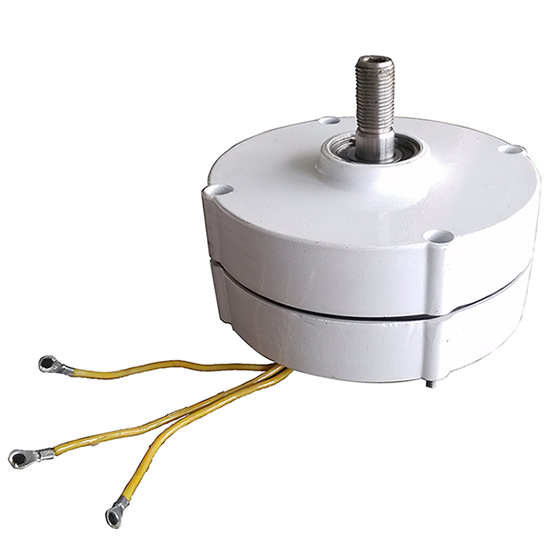

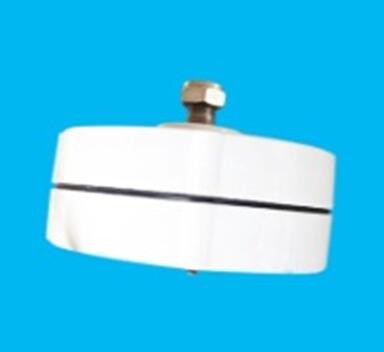

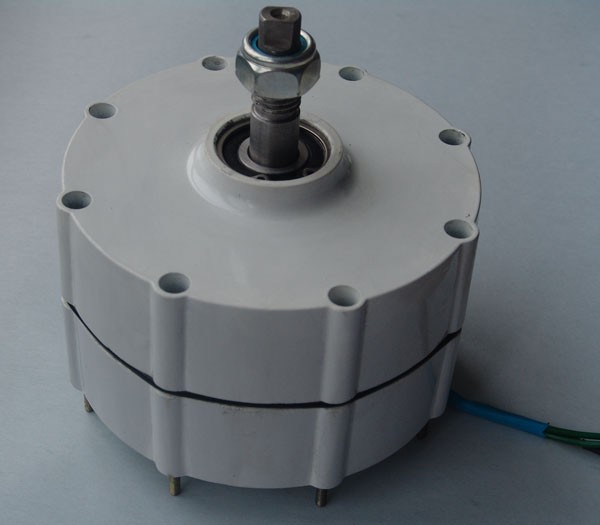

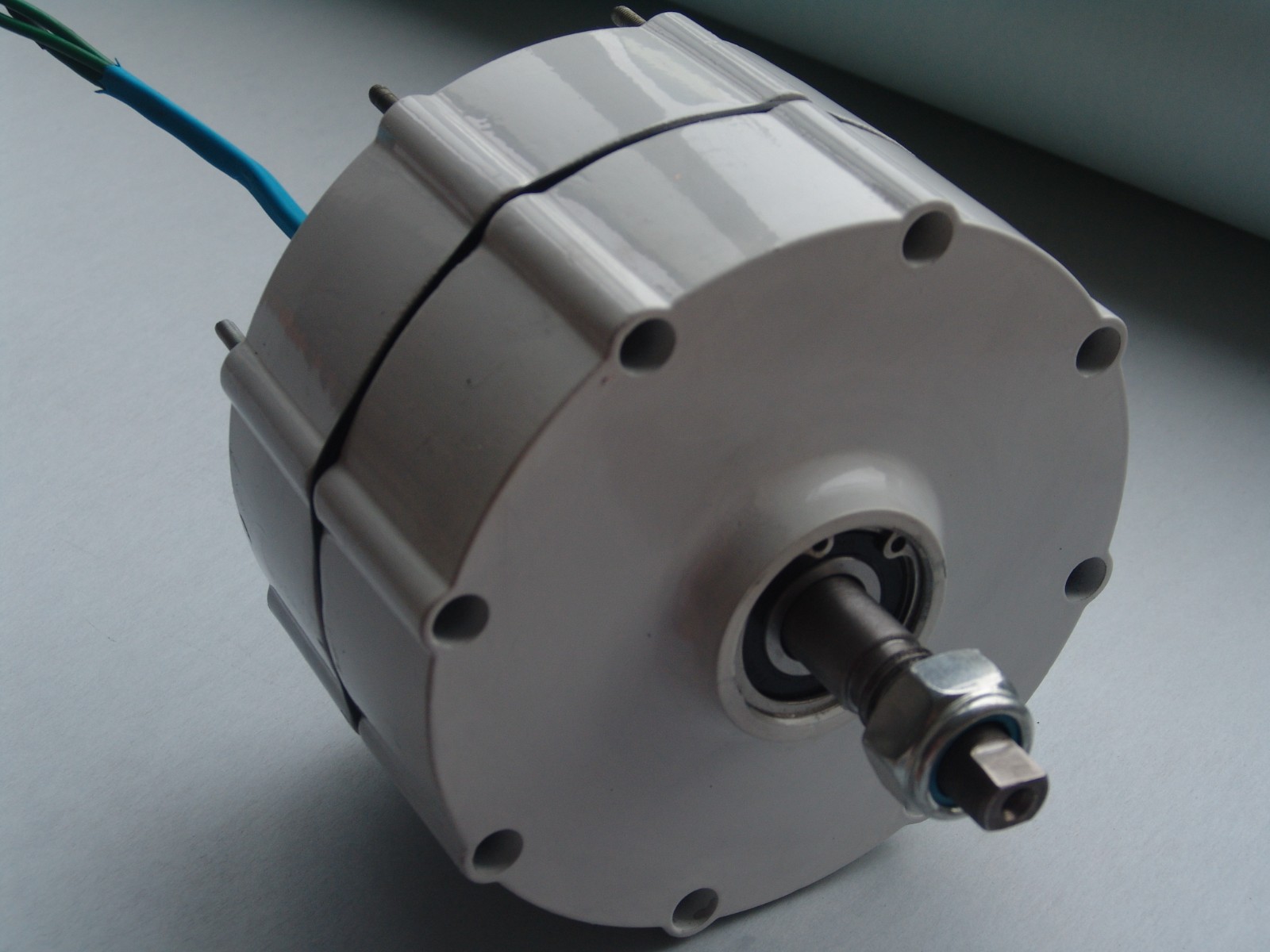

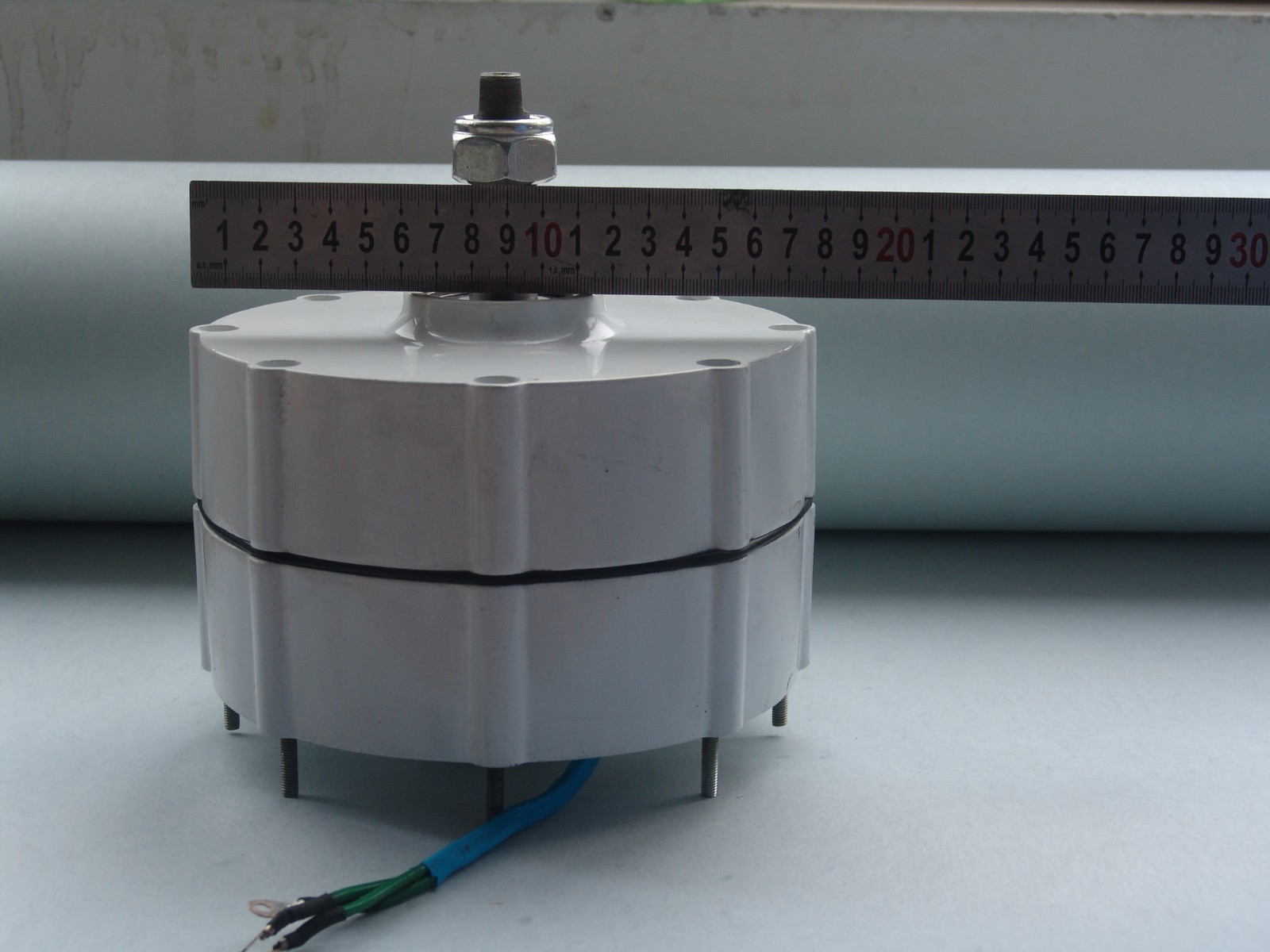

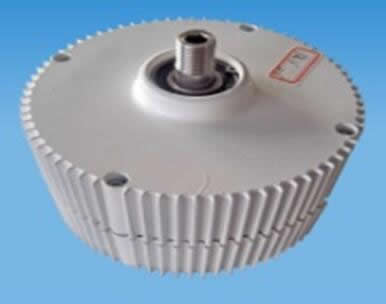

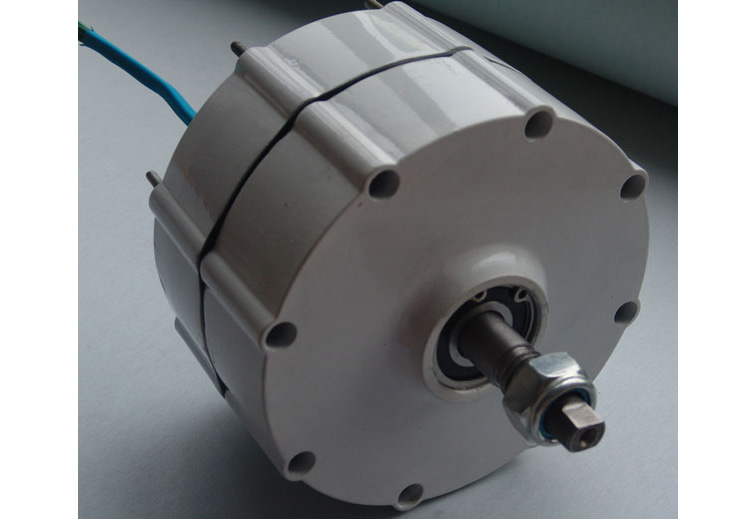

generator | 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | stainless steel |
Shell Material | aluminum alloy |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Working temperature | -40℃ - 80 ℃ |
Model | SHJ-NEG200S |
Rated Power(w) | 200w |
Max Power(w) | 240w |
Rated Voltage（v) | 12/24v |
Rated rotated speed(r/m) | 600r/m |
Top net weight(kg) | 3.4kg |
Output Current | AC |
Start Torque(N*M)： | 0.12Nm |
generator | 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | stainless steel |
Shell Material | aluminum alloy |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Working temperature | -40℃ - 80 ℃ |
Model | SHJ-NEG300M |
Rated Power(w) | 300w |
Max Power(w) | 345w |
Rated Voltage（v) | 12/24v |
Rated rotated speed(r/m) | 600r/m |
Top net weight(kg) | 4.3kg |
Output Current | AC |
Start Torque(N*M)： | 0.28Nm |
generator | 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | stainless steel |
Shell Material | aluminum alloy |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Working temperature | -40℃ - 80 ℃ |
Model | SHJ-NEG400M |
Rated Power(w) | 400w |
Max Power(w) | 435w |
Rated Voltage（v) | 12/24v |
Rated rotated speed(r/m) | 600r/m |
Top net weight(kg) | 4.5kg |
Output Current | AC |
Start Torque(N*M)： | 0.32Nm |
generator | 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | stainless steel |
Shell Material | Aluminum alloy |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Working temperature | -40℃ - 80 ℃ |
Model | SHJ-NEG500M2 |
Rated Power(w) | 500w |
Max Power(w) | 536w |
Rated Voltage（v) | 12/24/48v |
Rated rotated speed(r/m) | 600r/m |
Top net weight(kg) | 6.1kg |
Output Current | AC |
Start Torque(N*M)： | 0.42Nm |
generator | 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | stainless steel |
Shell Material | Aluminum alloy |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Working temperature | -40℃ - 80 ℃ |
Model | SHJ-NEG600M2 |
Rated Power(w) | 600w |
Max Power(w) | 636w |
Rated Voltage（v) | 12/24/48v |
Rated rotated speed(r/m) | 600r/m |
Top net weight(kg) | 6.3kg |
Output Current | AC |
Start Torque(N*M)： | 0.52Nm |
generator | 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | stainless steel |
Shell Material | Aluminum alloy |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Working temperature | -40℃ - 80 ℃ |
Model | SHJ-NEG700M2 |
Rated Power(w) | 700w |
Max Power(w) | 720w |
Rated Voltage（v) | 12/24/48v |
Rated rotated speed(r/m) | 800r/m |
Top net weight(kg) | 6.7kg |
Output Current | AC |
Start Torque(N*M)： | 0.58Nm |
Rated Torque (N*M) | 18.5Nm |
generator | 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | Stainless steel |
Shell Material | Aluminum alloy |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Working temperature | -40℃ - 80 ℃ |
