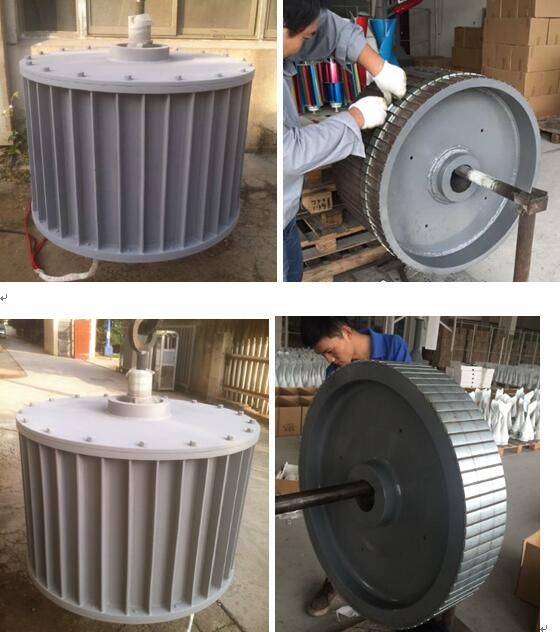

Permanent Magnet Generator 500KW-1MW
Features:
• Low start up speed
• Low torque
• Gear-less, direct drive, low RPM generator.
• For use in all environments
• Excellent heat dissipation
• High quality bearing and magnet, easy to send out quantity of heat and keep magnetic property.
• Designed for 20-years operation life.
Parameter Data:
Model | 500kw-90rpm |
Rated Power(w) | 500kw |
Max Power(w) | 550kw |
Rated Voltage（v) | 400v |
Rated rotated speed(r/m) | 90r/m |
Output Current | AC |
Rated Torque(N*M): | 53055.5Nm |
generator | 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | Iron |
Shell Material | Carbon Steel |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Model | SHJ-750kw-77rpm |
Rated Power(w) | 750kw |
Max Power(w) | 780kw |
Rated Voltage（v) | 400v |
Rated rotated speed(r/m) | 77r/m |
Output Current | AC |
Rated Torque(N*M): | 93019.5Nm |
generator | 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | Iron |
Shell Material | Carbon Steel |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Model | SHJ-750kw-100rpm |
Rated Power(w) | 750kw |
Max Power(w) | 780kw |
Rated Voltage（v) | 400v |
Rated rotated speed(r/m) | 100r/m |
Output Current | AC |
Rated Torque(N*M): | 71625Nm |
generator | 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | Iron |
Shell Material | Carbon Steel |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Model | SHJ-1000kw-100rpm |
Rated Power(w) | 1000kw |
Max Power(w) | 1050kw |
Rated Voltage（v) | 400v |
Rated rotated speed(r/m) | 100r/m |
Output Current | AC |
Rated Torque(N*M): | 95500Nm |
generator | 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | Iron |
Shell Material | Carbon Steel |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
