Intelligent integrated PTZ camera
Model：
SHJ-TE-A (Analog)
SHJ-TE-HD (HD IP)
SHJ-TE-SDI (SDI HD)
SHJ-TE-AHD(CVI/TVI) (Coaxial HD)
Features：
● Integrated with weather-proof high speed PTZ.
● It combines with cameras ,intelligent PTZ and decoder ,cover housing, wipers, automatic heater, windows defroster and defogger, sun-shield housing.
● It integrates with high-end motor, good stability and low noise.
● Heavy wind resistance ,smoothly running ,ensure accurate positioning.
● Weather-proof design, with sun-shield housing, wiper
● High die-cast aluminum casing, anti-shock, anti-corrosion ,IP 66
HD IP: PTZ support mainstream megapixel digital high-definition movement and HD SENSOR HD picture capture, compatible with mainstream HD platform and seamless docking, the maximum support 1080P output, support for dual-stream and high-definition capture, support IE browser
SDI HD: PTZ support megapixel HD movement, HD-SDI digital interface output, megapixel digital high-definition image lossless, real-time transmission, no delay, a variety of resolution adjustable (1080p / 60 1080p / 30 1080p / 25 720p / 60 720p / 30 720p / 25)
Coaxial HD: PTZ support common AHD / CVI / TVI coaxial HD movement, and support coaxial HD DVR output, the image without any coding compression, full real-time high-definition picture coaxial transmission
Application:

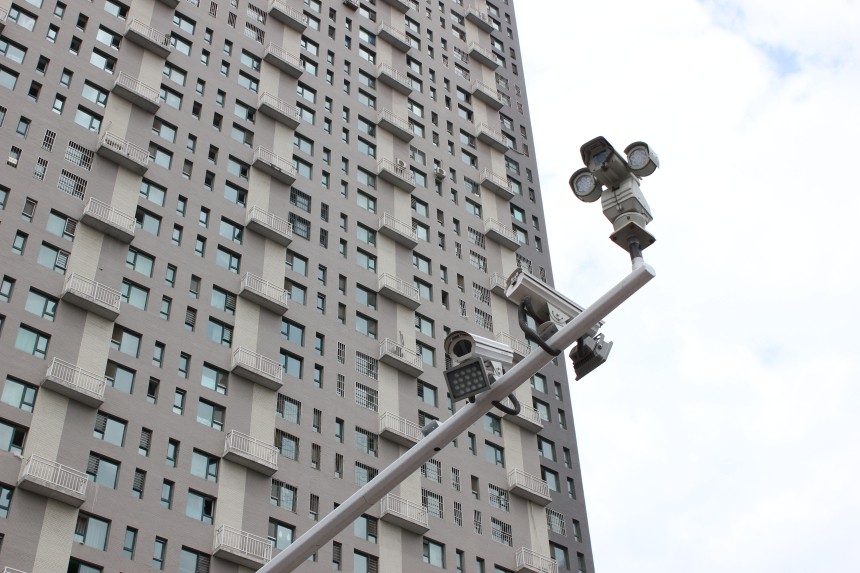

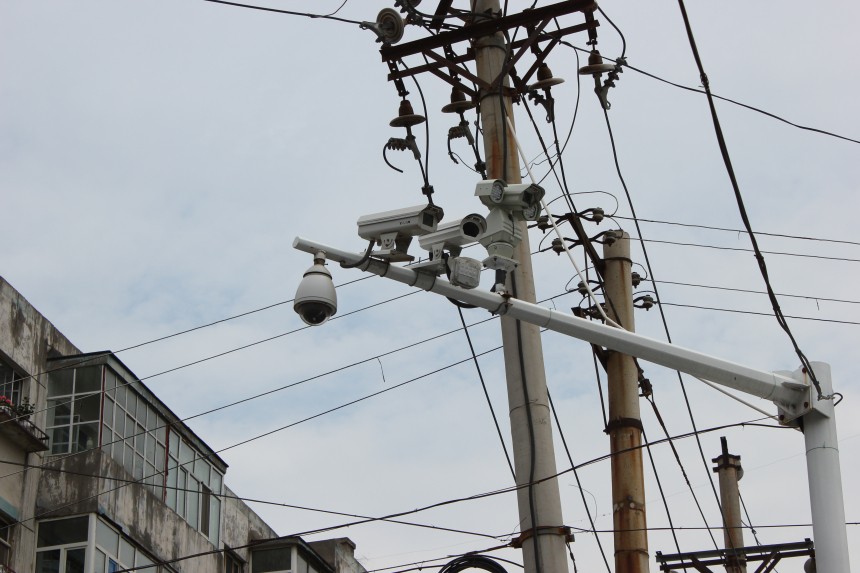

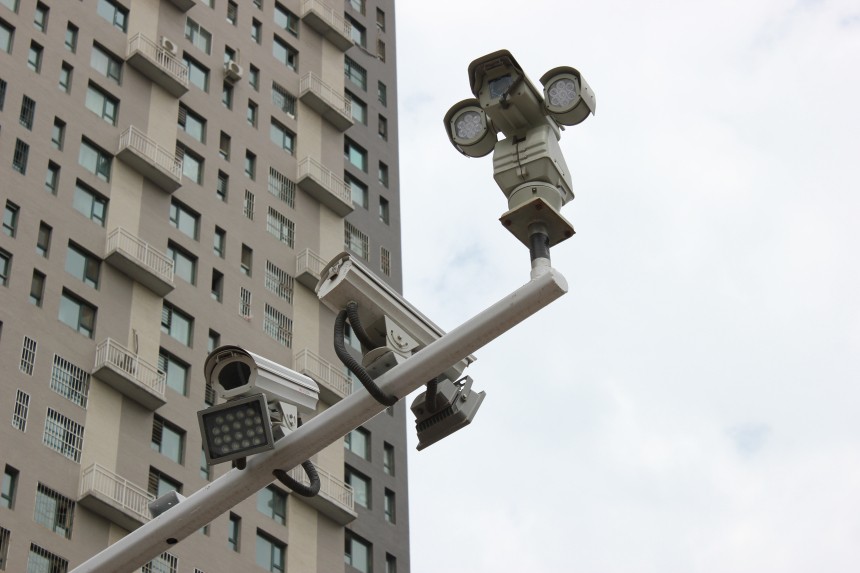

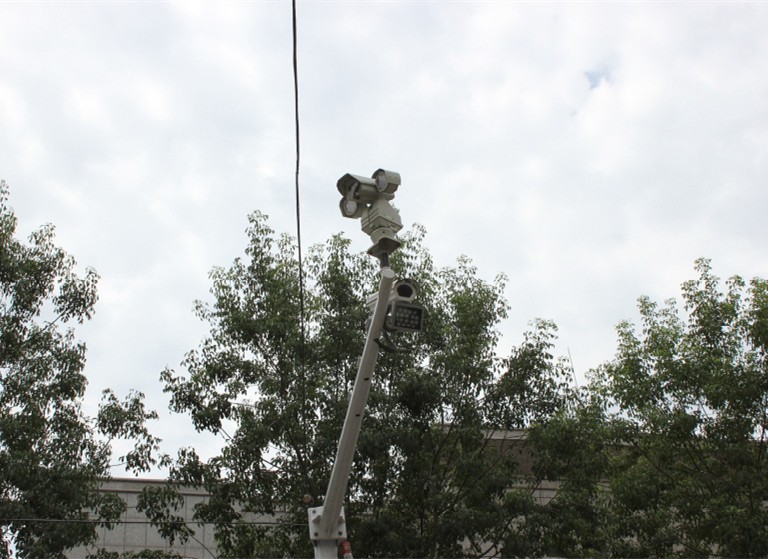

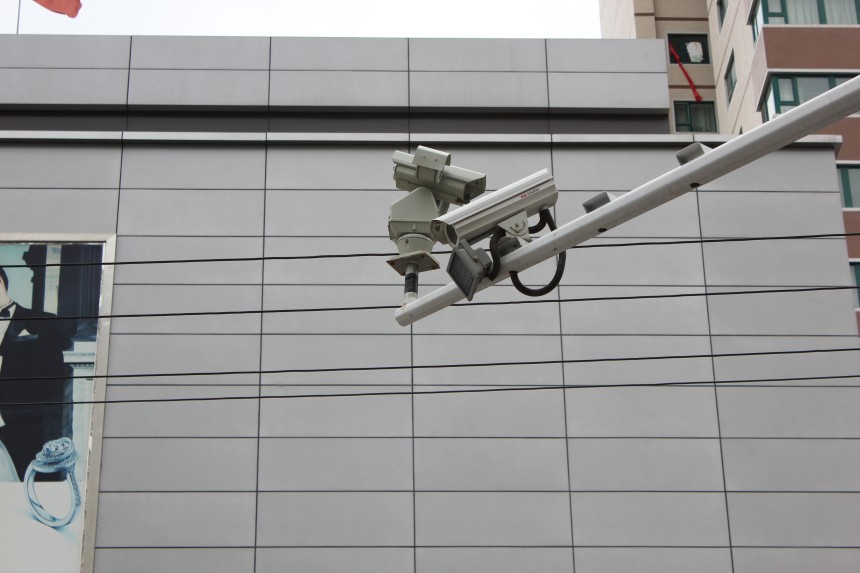

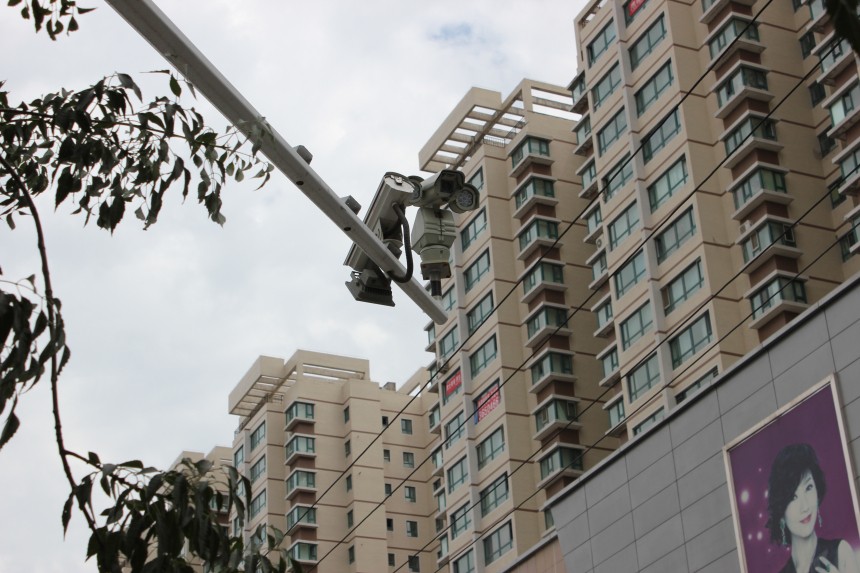

City road monitoring / expressway monitoring / railway monitoring / substation monitoring / high-rise building peripheral monitoring / coastal defense monitoring
Product Technical Data：
PTZ Function | |
Pan preset speed | 100°/S |
Tilt preset speed | 30°/S |
Pan control speed | 0°—40°/S |
Tilt control speed | 0°—20°/S |
Pan range | 360°endless rotation |
Tilt range | —70° — ＋35° |
Preset positions、Tracking | 256 positions 6 tracking |
Control Way | RS485, built-in 16 protocols, baud rate from 2400Bps to 19200Bps |
Relative Humidity | Less than 90% |
IP Grade | IP66 |
Working Temperature | -35°C—+55°C |
Power Consumption | DC24V/AC24V/AC110V/AC220V optional |
Impact resistance requirements | ≥4G |
Wiper | Support |
Weight | 10KG |
Network parameters： | |
Video Compression | H.265/H.264 |
Compression output rate | 32kbps-12Mbps |
Audio Compression | G.722.1、G.711-a law、G.711-u law、MP2L2、G.726、AAC、PCM |
Storage Function | Support micro SD |
Intelligent Arlarm | Motion detection, occlusion alarm, memory full, memory error, audio anomaly detection, cross-border detection, area intrusion detection |
Support Protocol | TCP/IP、HTTP、DHCP、DNS、DDNS、RTP、RTSP、PPPoE、SMTP、NTP、UPnP、SNMP、FTP、802.1x、QoS、HTTPS、IPv6 (SIP、SRTP、OPTIONAL) |
General function | Dual stream, heartbeat, password protection |

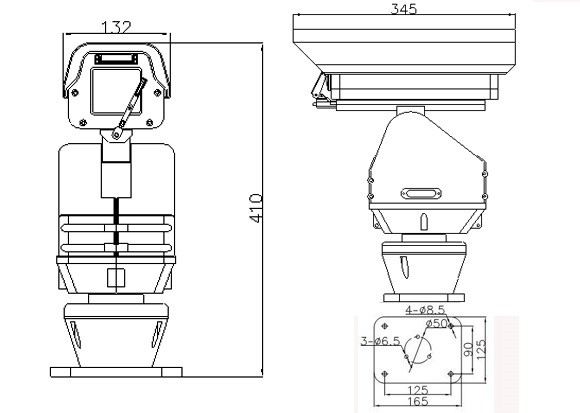

Measures:(mm)
