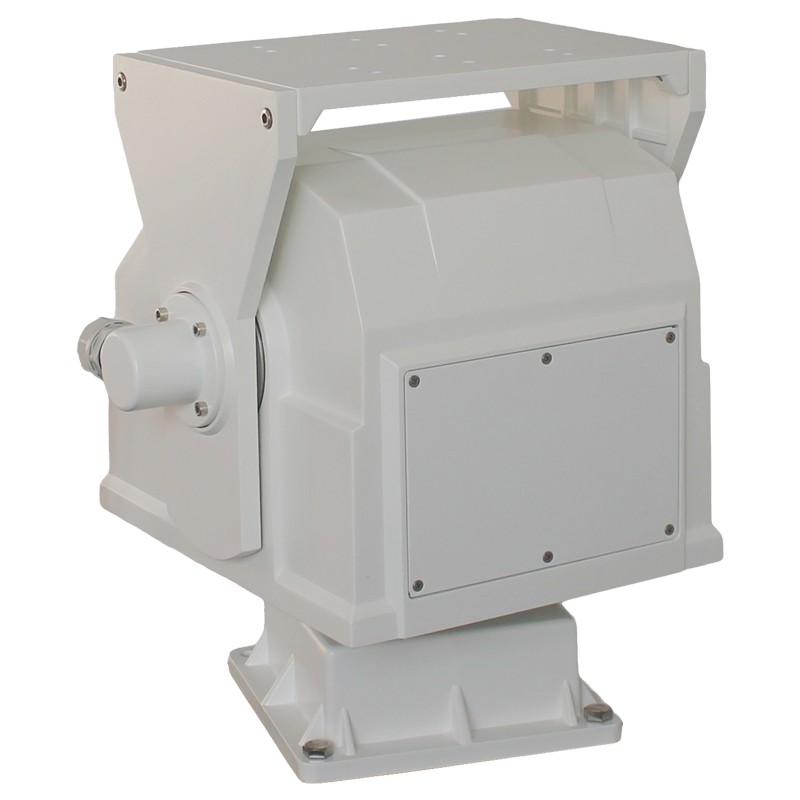

22kg Heavy Duty Top Loading Pan Tilt Head
Product Name:
Loading 22KG Heavy Duty Top Loading Pan Tilt Head
Model: SHJ-TX30
Product Accessories:
SHJ-HS18(18 inch dual housing)
SHJ-H23(23 inch housing)
SHJ-H29(29 inch housing)
Features:
1. Professional wiper structure, high and low temperature test design, high temperature anti-ice;
2. Advanced electromagnetic compatibility test, with triple lightning protection technology;
3. PTZ worm using large transmission ratio design, metal structures, copper gear wheel, torque, strong bearing capacity, after a power failure with high-strength self-locking capability;
4. Dynamic voltage drive technology, head high load capacity, wind, seismic capability;
HD IP: PTZ support mainstream megapixel digital high-definition movement and HD SENSOR HD picture capture, compatible with mainstream HD platform and seamless docking, the maximum support 1080P output, support for dual-stream and high-definition capture, support IE browser
Product Application:
Forest fire prevention, safe cities, prisons, warehouses, oil depots, long-distance pipelines, large factories, mines, garages, sea side defense, marine fisheries, ecological protection areas, reservoirs, and other military bases.
PTZ Specification:
Pan Manual Control Speed | 0.01°/S -- 40°/S |
Tilt Manual Control Speed | 0.01 /S -- 15°/S |
Pan Angle | 360°Endless Rotation |
Tilt Angle | +40°~-75° |
Preset Position | 256 Positions |
Tracking | 8 channel |
Automatic Scan | 8 channel |
Automatic Home | Support |
Cruis Tracking | 4 channel |
Auxiliary switch | 2 groups |
Loading | Top Load 22KG |
Control Way | RS485 control，Angle of rotation can be achieved backhaul and angle control |
Relative Humidity | 90% |
IP Grade | IP66 |
Working Temperature | -40 ℃ - 55℃ |
Power | AC24V/DC24V |
Consumption | ≤100W |
Weight | 15KG |
Network parameters： | |
Video Compression | H.264/H.265 |
Audio Compression | G.722.1、G.711-alaw、G.711-ulaw、MP2L2、G.726 |
Compression output rate | 32Kbps—16Mbps |
Support Protocol | TCP/IP、HTTP、DHCP、DNS、DDNS、RTP、RTSP、PPPoE、SMTP、NTP、UPnP |
Interface Protocol | ONVIF/PSIA/CGI/ISAPI |
Communication Protocol | PelcoD-P Protocol |
Storage Function | Support MicroSD storage |
Intelligent Arlarm | Motion detection, mask alarm, full memory, memory mistake |
While previewing video | Most 10 Channels |
Dual-Stream | 960P+D1 |
User Rights | At most 32 users，with three grades: Administrator, Operator, and ordinary users can only view |
Safe Mode | Authorized user name and password, and MAC address binding; HTTPS encryption; IEEE 802.1x network access control, IP address filtering |
ROI Code | Support 24pcs，Grade can be adjusted |

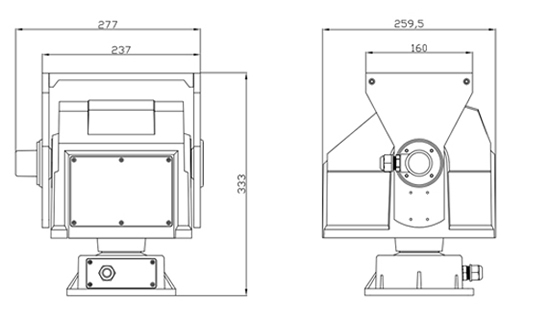

Measures:(mm)
