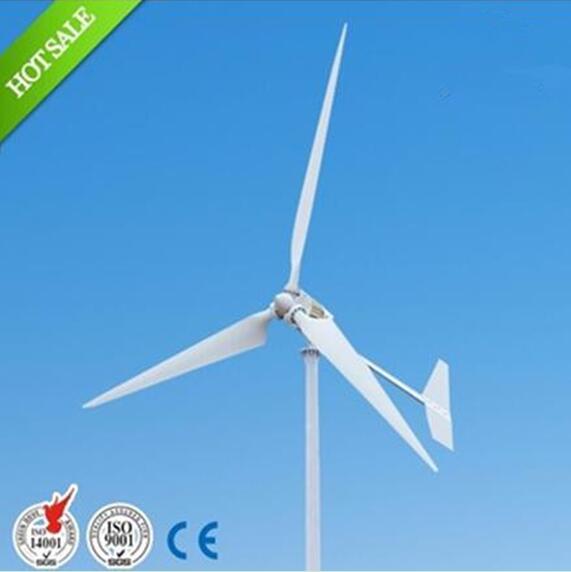

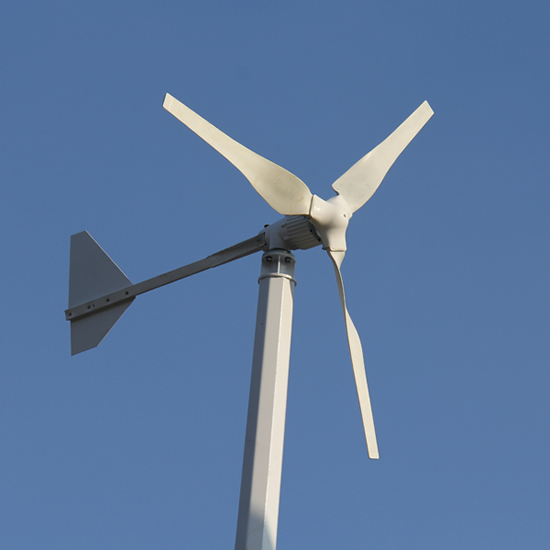

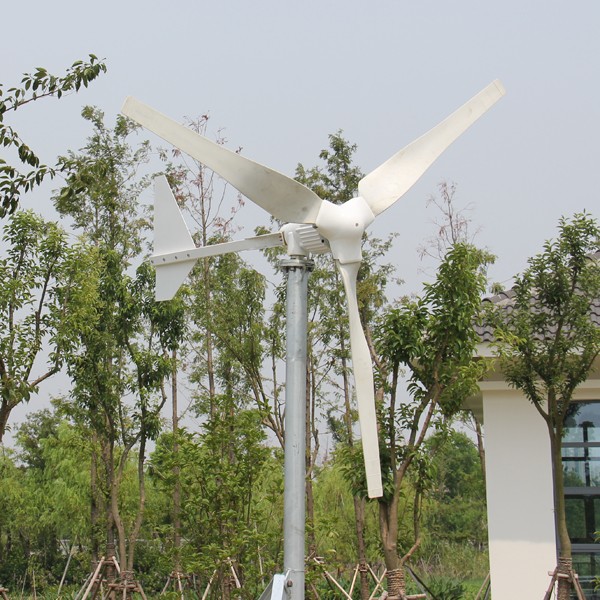

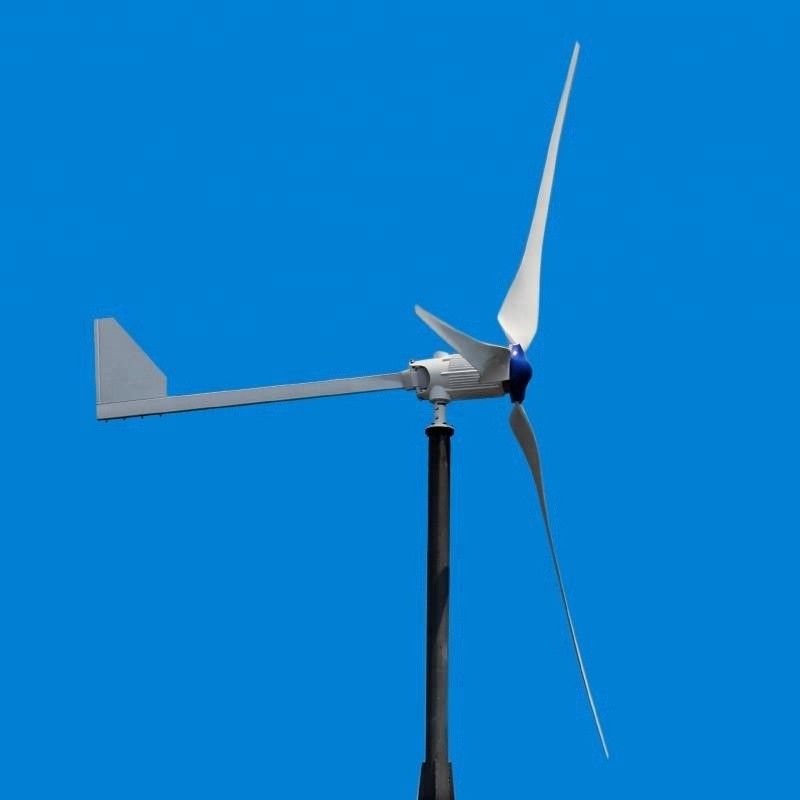

Horizontal Wind turbine 1KW-10KW
Features:
1.Carbon steel body, compact, safe
2.Reinforced glass fiber blades,matched with optimized aerodynamic shape and structure,which enhance the wind energy utilization and annual output.
3.Patented permanent magnet ac generator with special stator,effectively reduce torque, well match the wind wheel and generator, and ensure the performance of whole system.
4.Tail adopts mechanical yaw technique,making it survive storm and run safely
5.With epoxy zinc rich primer and polyurethane anti-corrosion treatment,be ultraviolet-proof, acid rain resistant, salt resistant
6.Controller,inverter can be matched accroding to customers’ specific needs
Parameter Data:
Model | SHJ-1000M5 |
Rated power | 1000W |
Maximum power | 1050W |
Rated voltage | 24/48v |
Start-up wind speed | 2.5m/s |
Rated wind speed | 12.5m/s |
Survival wind speed | 40m/s |
Top net weight | 30kg |
Wheel diameter | 2.4m |
Number of blades | 3 |
Blades material | Reinforced glass fiber |
Generator type | Three phase permanent magnet ac generator |
Magnet material | NdFeB |
Generator case | Die-casting aluminum |
Control system | Electromagnet |
Speed regulation | Automatically adjust windward |
Working temperature | -40°C - 80°C |
Certificates | CE, ISO14001, ISO 9001, TUV |
Model | SHJ-WH2000 |
Rated Power | 2000W |
Max Power | 2100W |
Blades Rotor Diameter | 3200mm/3650mm |
Blade Quantity & Material | 3Pcs / FRP |
Rated Rotate Speed | 400(r/min) |
Start Torque | 2.0(N.M) |
Generator Type | PMG AC Direct Drive |
Generator Material | Aluminum body+100% copper wire+ Nd-Fe-B |
Normal Output Voltage from Generator | 48v AC / 96v AC |
Optional Output Voltage from Inverter | 110V-240VAC |
Start Wind Speed | 2.5m/s (5.6 mph) |
Rated Wind Speed | 12m/s (26.88mph) |
Working Wind Speed | 3-25m/s (6.72-56 mph) |
MAX.Design Wind Speed | 50m/s (112mph) |
Suggested Tower Height | 6m(19.68ft) higher available |
Top Weight | 55kg |
Protection method | Tail vane Auto lean |
Working life | 15-20years |
Model | SHJ-WH3000 |
Rated Power | 3000W |
Max Power | 3530W |
Blades Rotor Diameter | 4900mm/5200mm |
Blade Quantity & Material | 3Pcs / FRP |
Rated Rotate Speed | 280(r/min) |
Start Torque | 3.6(N.M) |
Generator Type | PMG AC Direct Drive |
Generator Material | Carbon steel body+ 100% copper wire+ Nd-Fe-B |
Normal Output Voltage from Generator | 48v AC / 96v AC /120v AC |
Optional Output Voltage from Inverter | 110V-240VAC |
Start Wind Speed | 2.5m/s (5.6 mph) |
Rated Wind Speed | 10m/s (22.4mph) |
Working Wind Speed | 3-25m/s (6.72-56 mph) |
MAX. Design Wind Speed | 50m/s (112mph) |
Suggested Tower Height | 9m(29.52ft) higher available |
Approx Top Weight | 220kg |
Protection method | Tail vane Auto lean |
Working life | 15-20years |
Model | SHJ-WH5000 |
Rated Power | 5000W |
Max Power | 6130W |
Blades Rotor Diameter | 5800mm/6100mm |
Blade Quantity & Material | 3Pcs / FRP |
Rated Rotate Speed | 280(r/min) |
Approx Start Torque | 5.6(N.M) |
Generator Type | PMG AC Direct Drive |
Generator Material | Carbon steel body+100% copper wire+ Nd-Fe-B |
Normal Output Voltage from Generator | 96vAC /220vAC /240vAC |
Optional Output Voltage from Inverter | 110V-240VAC |
Start Wind Speed | 2.5m/s (5.6 mph) |
Rated Wind Speed | 10m/s (22.4mph) |
Working Wind Speed | 3-25m/s (6.72-56 mph) |
MAX. Design Wind Speed | 50m/s (112mph) |
Suggested Tower Height | 9m(29.52ft) higher available |
Approx Top Weight | 295kg |
Protection method | Tail vane Auto lean |
Working life | 15-20years |
Model | SHJ-WH10K |
Rated Power | 10KW |
Max Power | 12KW |
Blades Rotor Diameter | 7000mm |
Blade Quantity & Material | 3Pcs / FRP |
Rated Rotate Speed | 150(r/min) |
Approx Start Torque | 11.5(N.M) |
Generator Type | PMG AC Direct Drive |
Generator Material | Aluminum body+ copper wire +Nd-Fe-B |
Normal Output Voltage from Generator | 220vAC /240vAC / 380vAC |
Optional Output Voltage from Inverter | 110V-240VAC |
Start Wind Speed | 3m/s (6.72mph) |
Rated Wind Speed | 10m/s (22.4mph) |
Working Wind Speed | 3-25m/s (6.72-56 mph) |
MAX. Design Wind Speed | 50m/s (112mph) |
Suggested Tower Height | 12m(39.36ft) higher available |
Approx Top Weight | 400kg |
Protection method | Tail vane Auto lean |
Working life | 15-20years |
Noise | 55dB |
