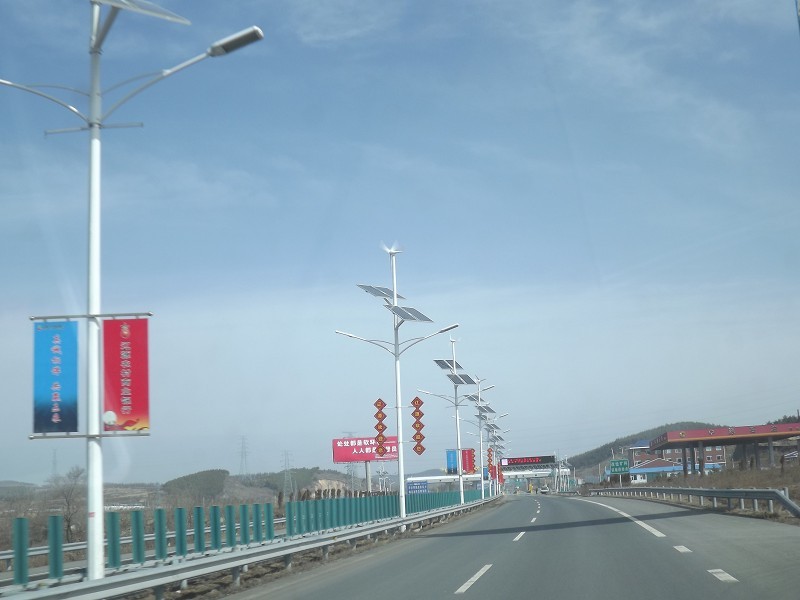

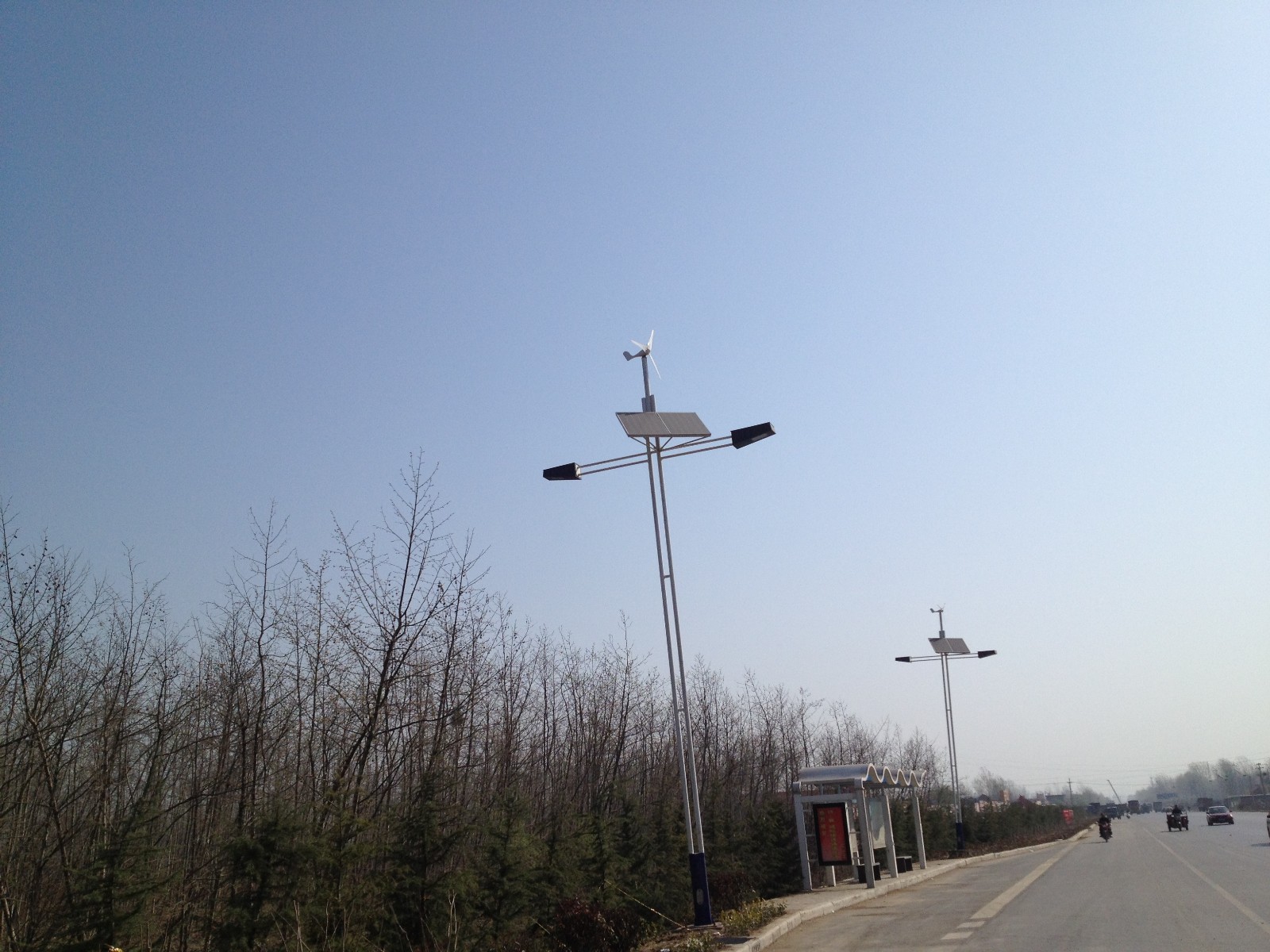

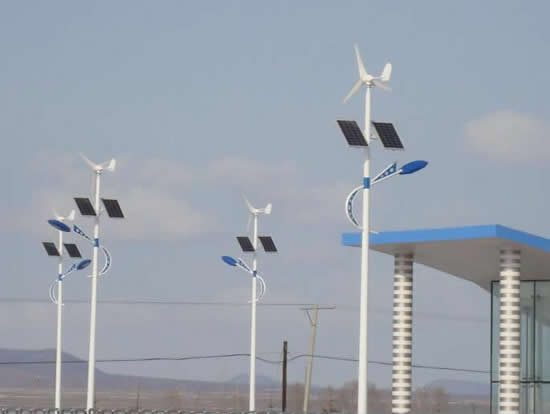

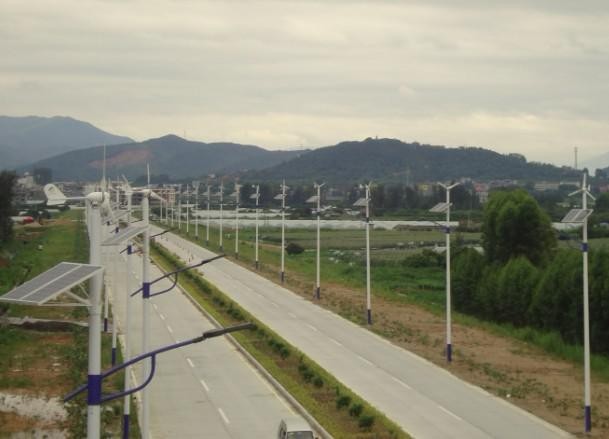

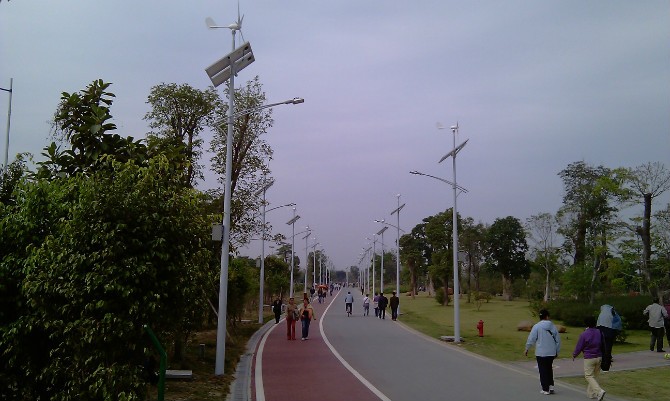

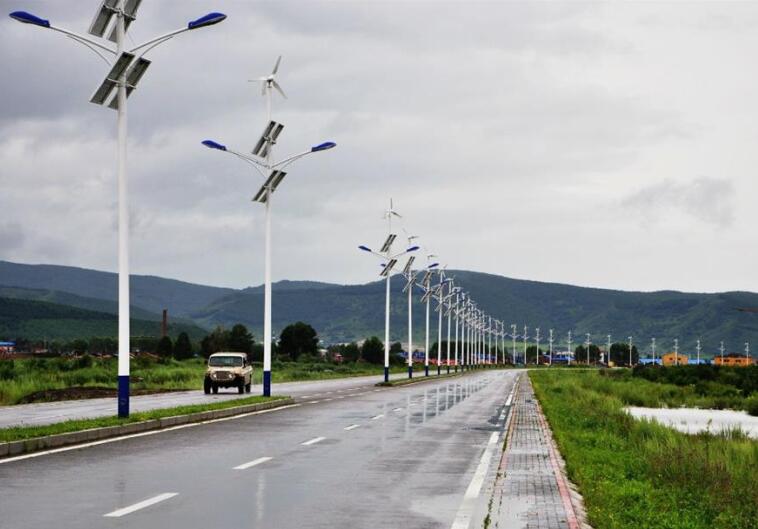

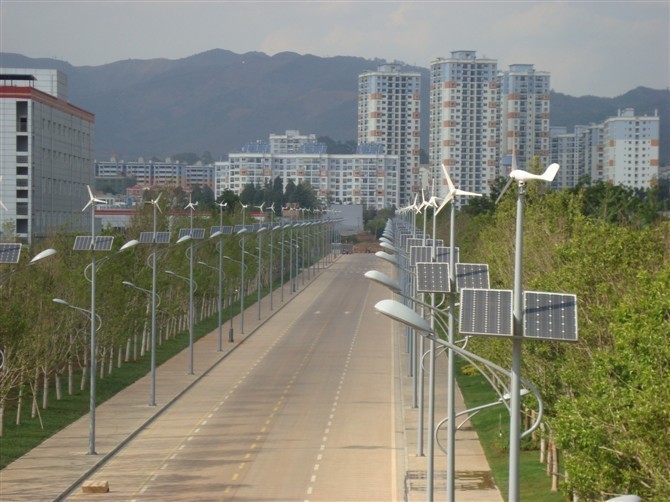

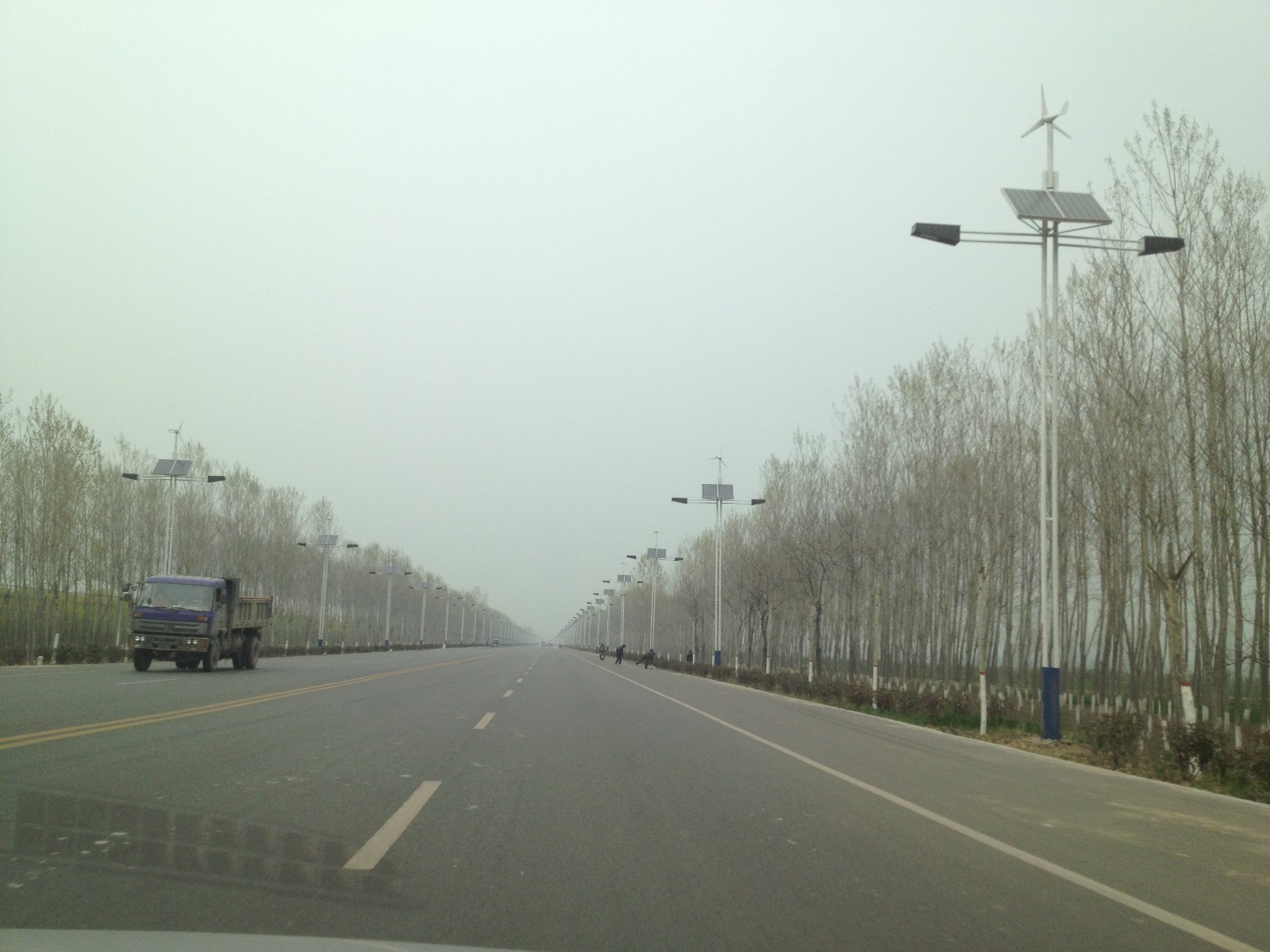

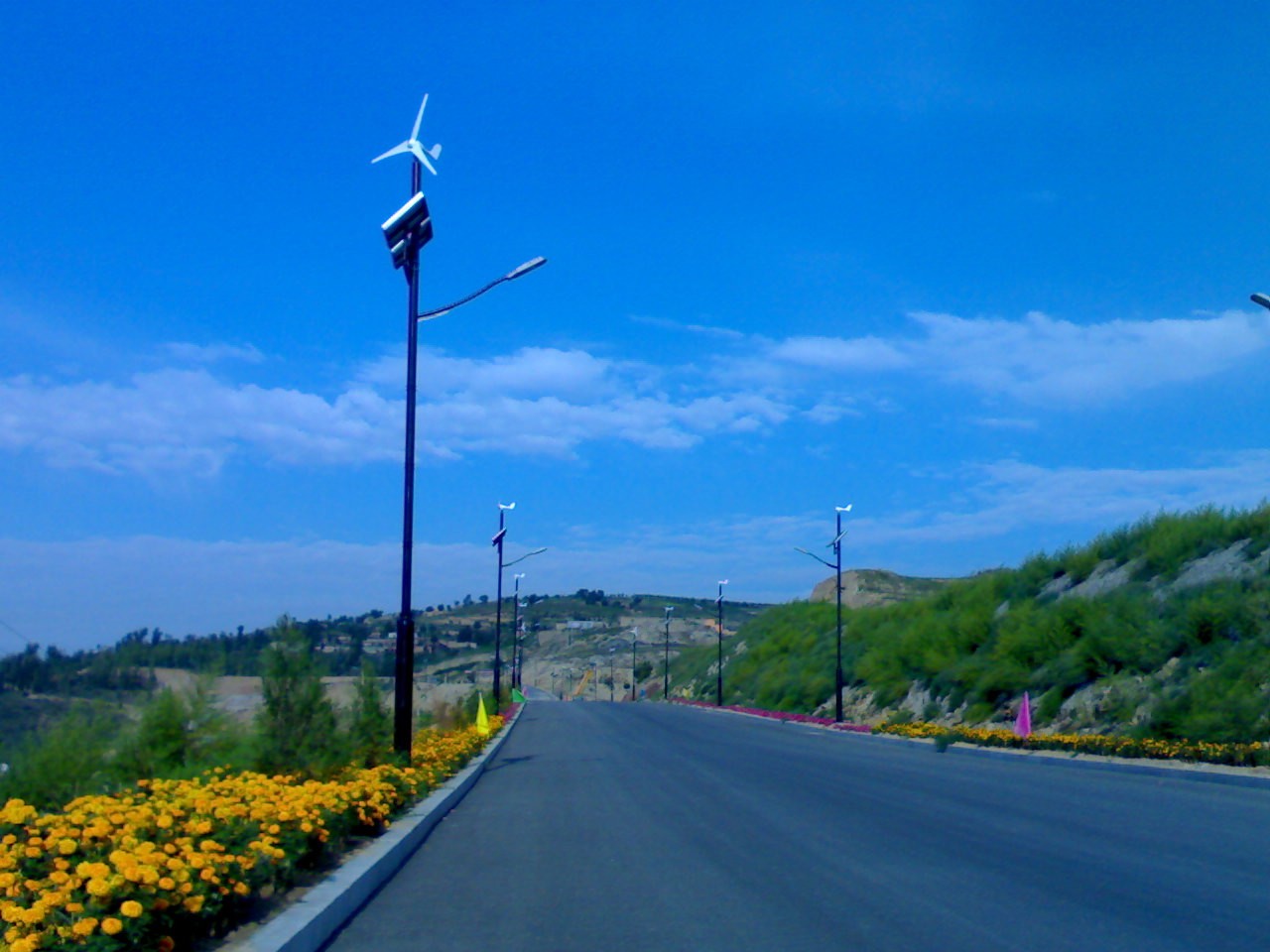

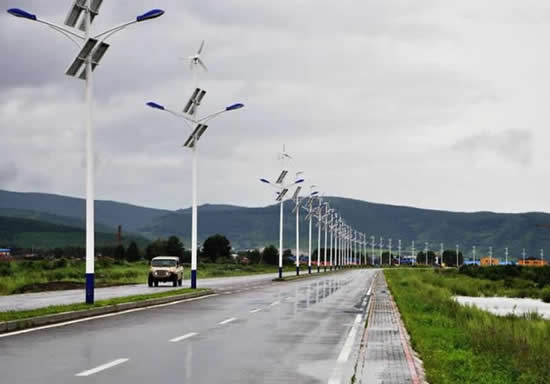

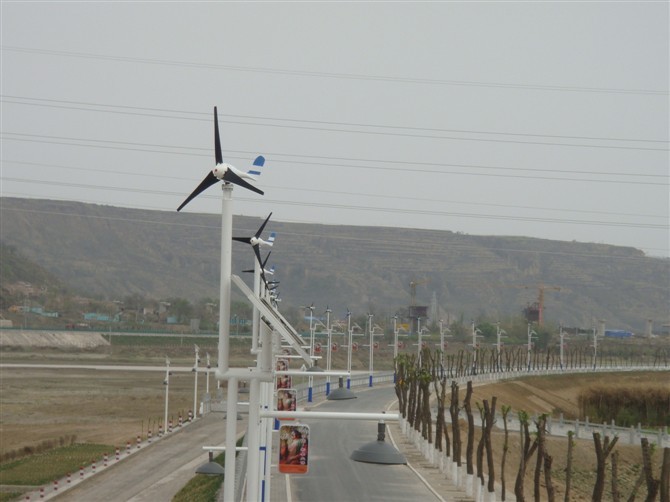

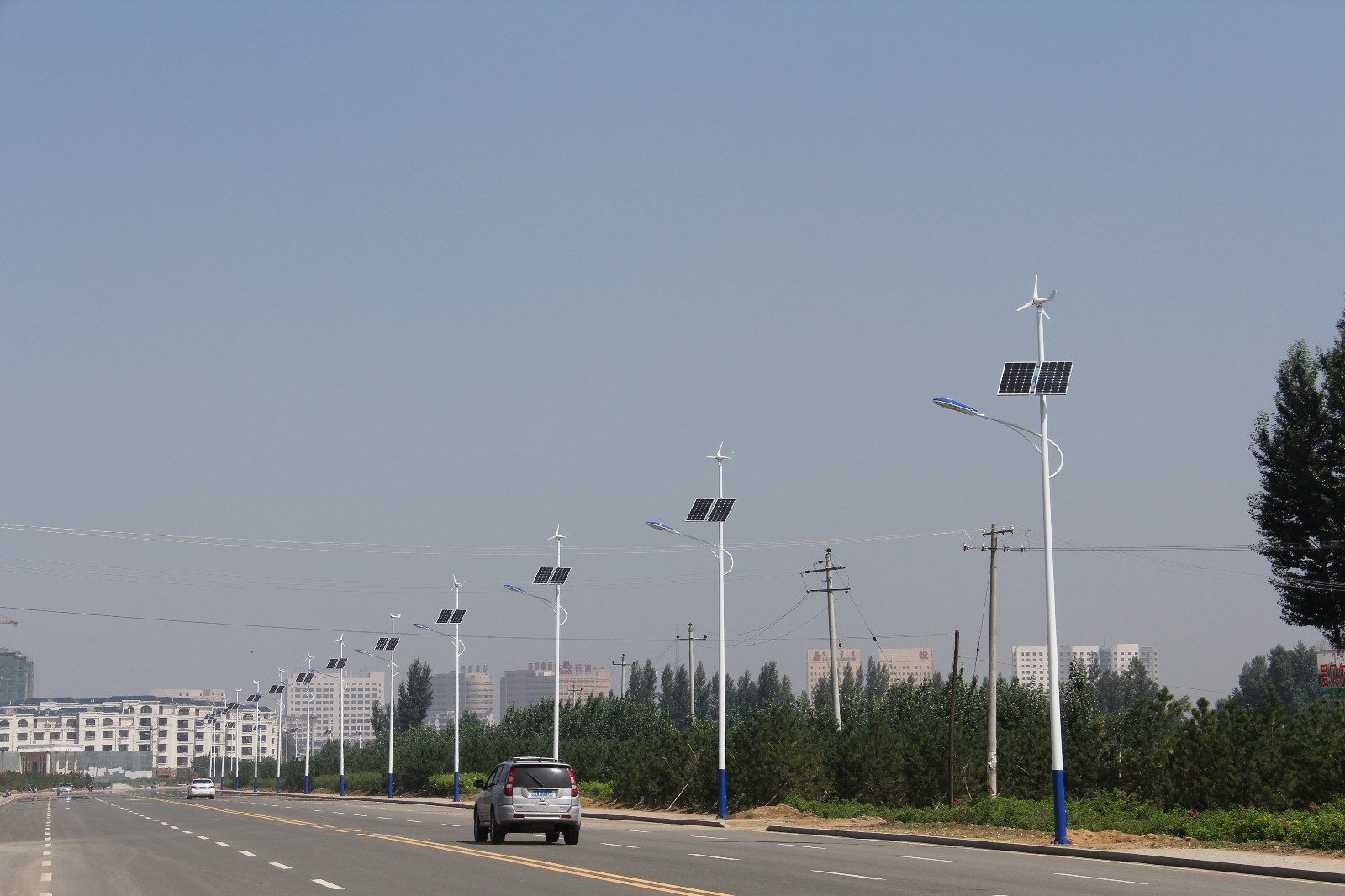

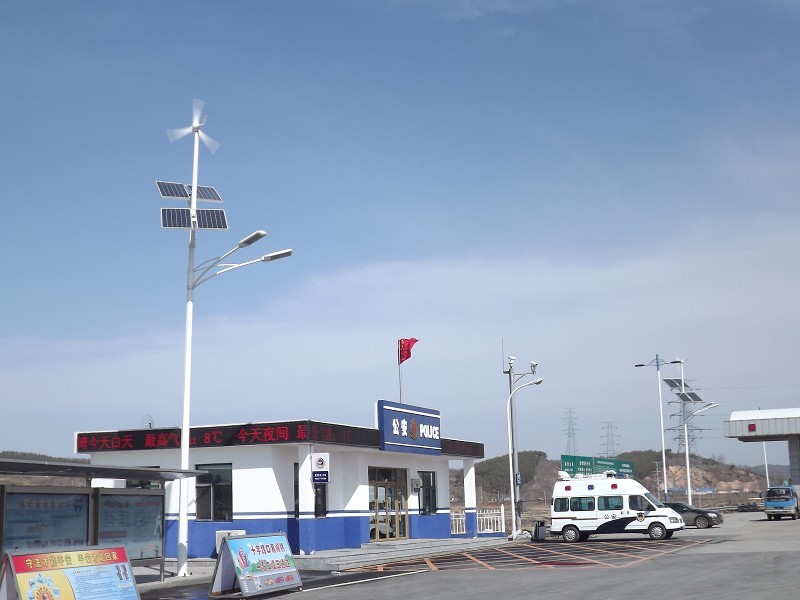

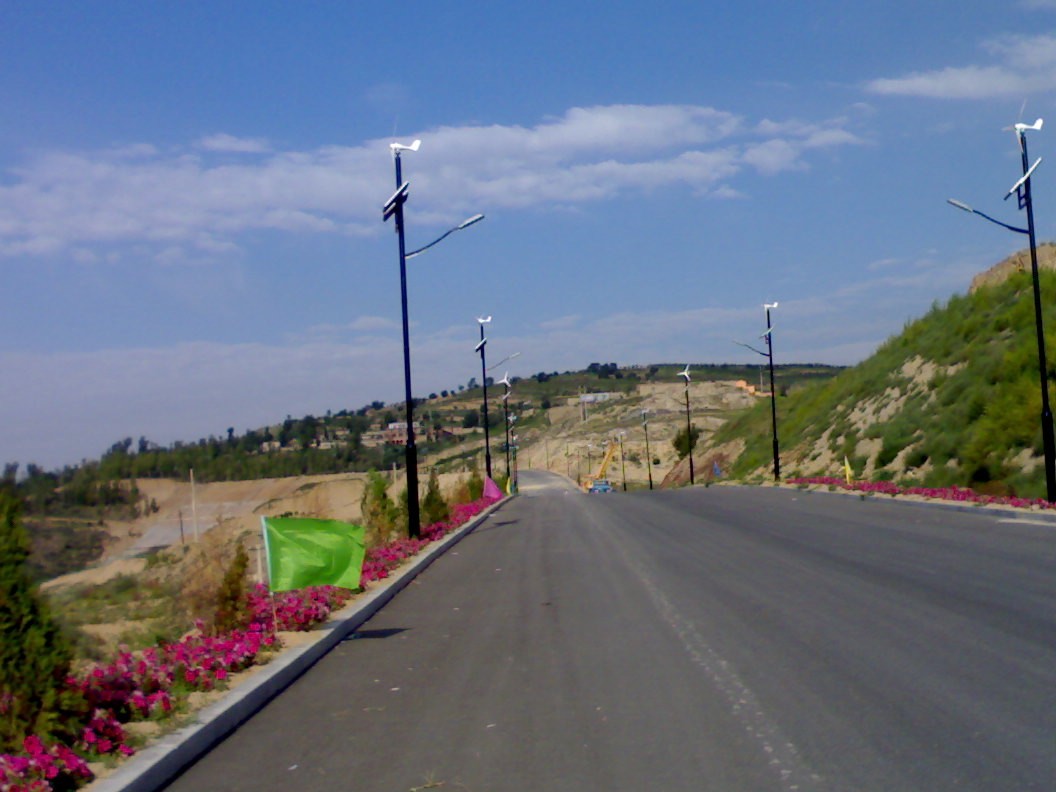

98W Horizontal Wind Turbine and Solar Hybrid Street Lamp
Model: SHJ-LD100-WH
Product Features:
1. Low start up speed; high wind energy utilization; beautiful appearance; low vibration
2. Human friendly design, easy installation, maintenance and repair.
3. Precise injection molding blades together with the optimized design of aerodynamic contour and structure, the blades have such advantages: high utilization of wind energy which contributes to the annual energy output.
4.the generators, adopting patented permanent magnet rotor alternator,with a special kind of stator design, efficiently decrease resistance torque. Meanwhile, it makes the wind turbines match the generators quite well and increase its reliability
5.Aluminum alloy body,anti-corrosion treatment,resistant to to acid and alkali, applicable in salty environmen
Technical Parameter:
Wind Solar hybrid streetlight Model：SHJ-LD100-WH | ||
Wind Speed | Start up wind speed | 2.0m/sec |
Cut in wind speed | 2.5m/sec | |
Rated wind speed | 10.0m/sec | |
Safety wind speed | <60m/sec | |
Safety Control | Brake | Automatic electromagnetic brake |
Blades | Length：850mm, Wheel Diameter：1800mm | |
Material： | 6063 Aluminum, surface spray | |
Color: | White | |
Generator | Type | Permanent magnet generator |
Rated wind speed | 450rpm/min | |
Rated power | 500W | |
Generator case | Aluminum alloy die-casting | |
Solar panel | Mono crystalline solar panel | 150W X 2pcs, installed on the pole |
LED Lamp | Power | 98W |
Flux lumineux | 10000LM—12000LM | |
Working hours | 11 hours per day, (6 hours full power, 5 hours half power) | |
Lifespan | 50000hours | |
Battery | Lithium battery | 100AHX4pcs |
Back up days when there is no sun, no wind | 2 days | |
Life span | 6 years | |
Pole | Height | 10m |
Bottom square pole | 300mmx300mm,thickness: 4mm | |
Bottom height | 1000mm | |
Upper pole diameter | 100mm-210mm,thickness: 4mm | |
Upper height | 9000mm | |
Material | Q235 Steel | |
Housing | Hot-dip galvanizing + spray | |
Controller | Wind solar hybrid model | 600W/MPPT |
Charging system | PWM | |
Lighting control | Time control and Light control function | |
Output voltage | DC24V | |
