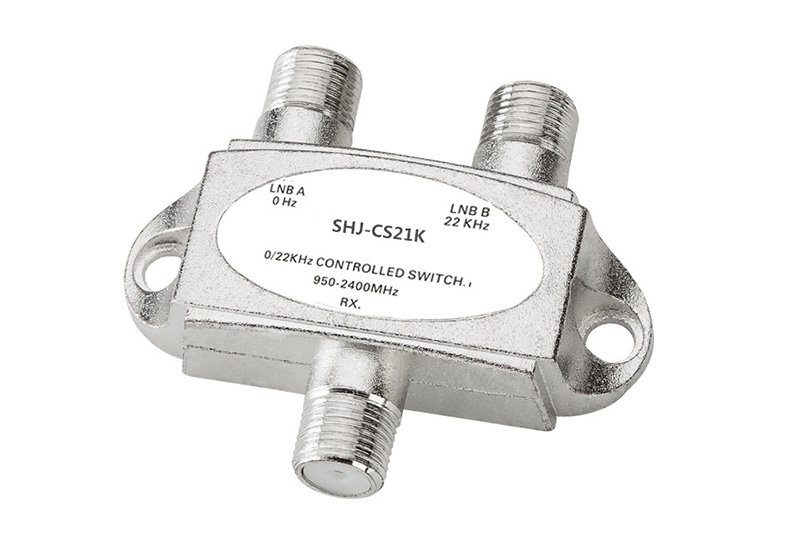

0/22KHz Controlled Switch
MODEL: SHJ-CS21K
Features:
● Zinc die-cast housing, tin-plated
● Excellent quality component , professional circuit design and low loss
● 0/22KHz signal processed by professional method and compatible with more types of satellite receiver
● Select one of two satellite signals through 0/ 22KHz signal supplied from satellite receiver
● Utilize one coaxial cable to transmit control signal and satellite signal simultaneously
Parameter description:
Item | Specification | Item | Specification |
Frequency Range | 950-2400(MHz) | Normal Working Voltage | 12-20(V) |
Insertion Loss | 3(dB) | DC Power Consumption | 10(mA) |
Isolation | 20(dB) | DC Max Power Passing | 500(mA) |
Return Loss | 8(dB) | Impedance(all ports) | 75(Ω) |
