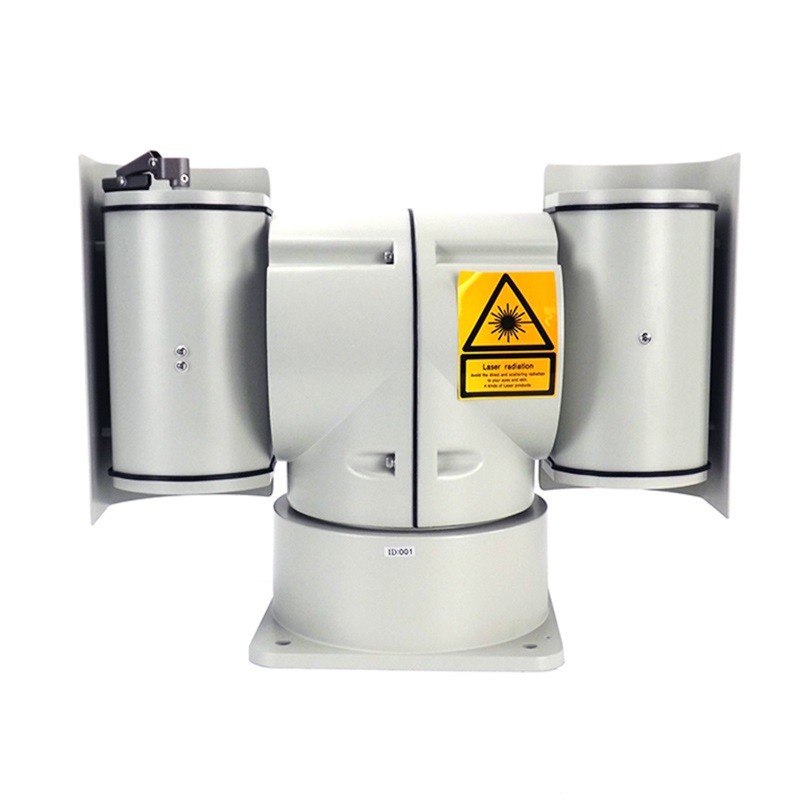

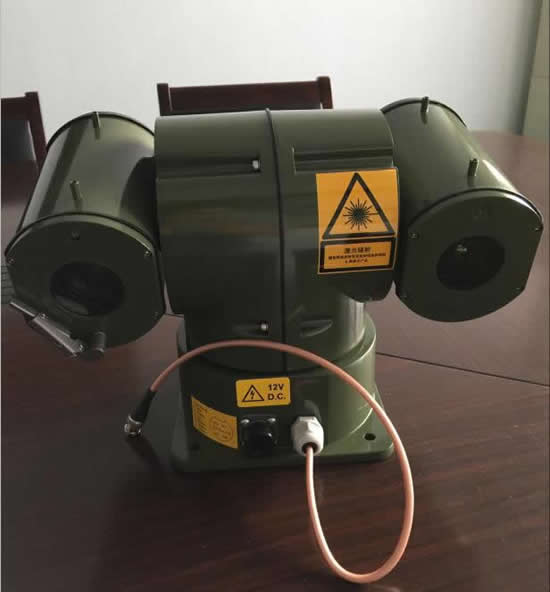

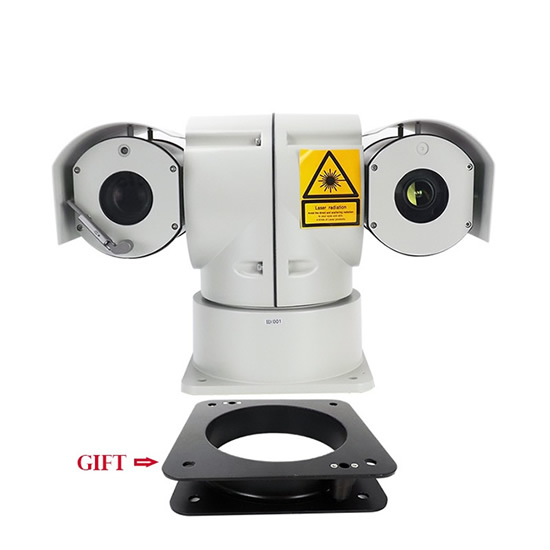

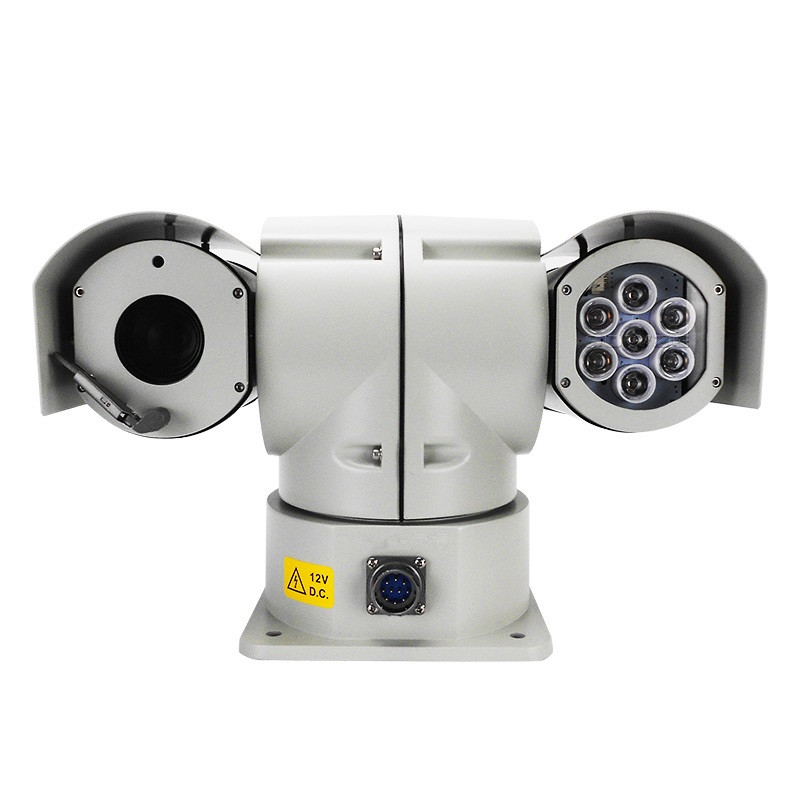

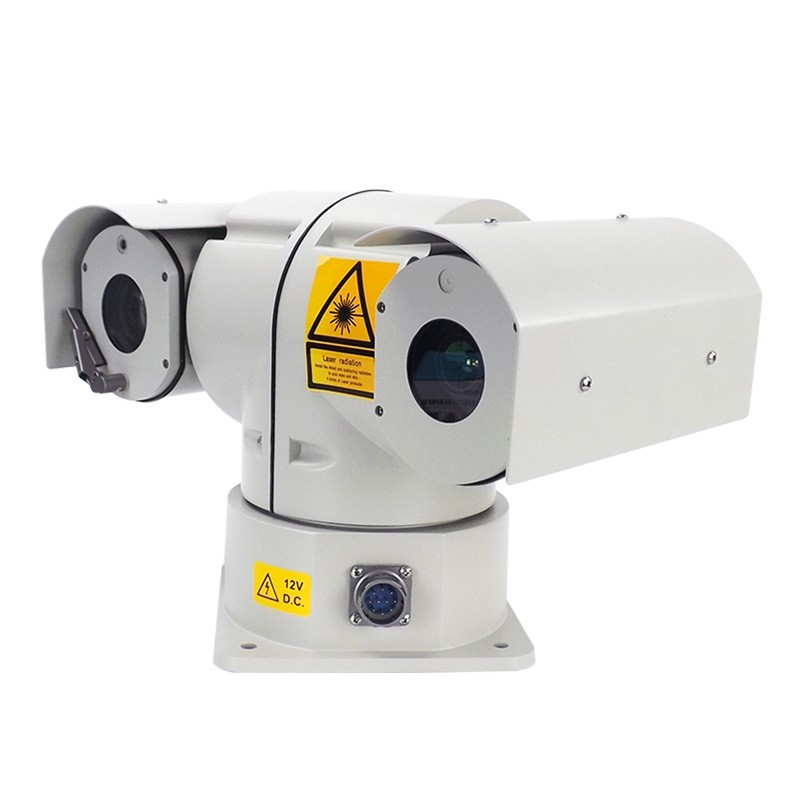

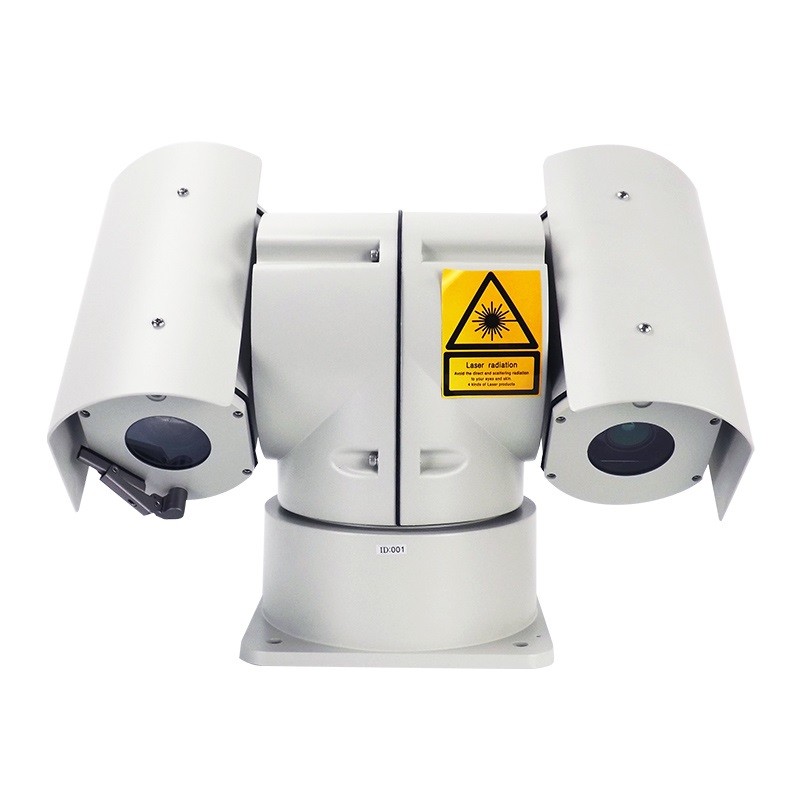

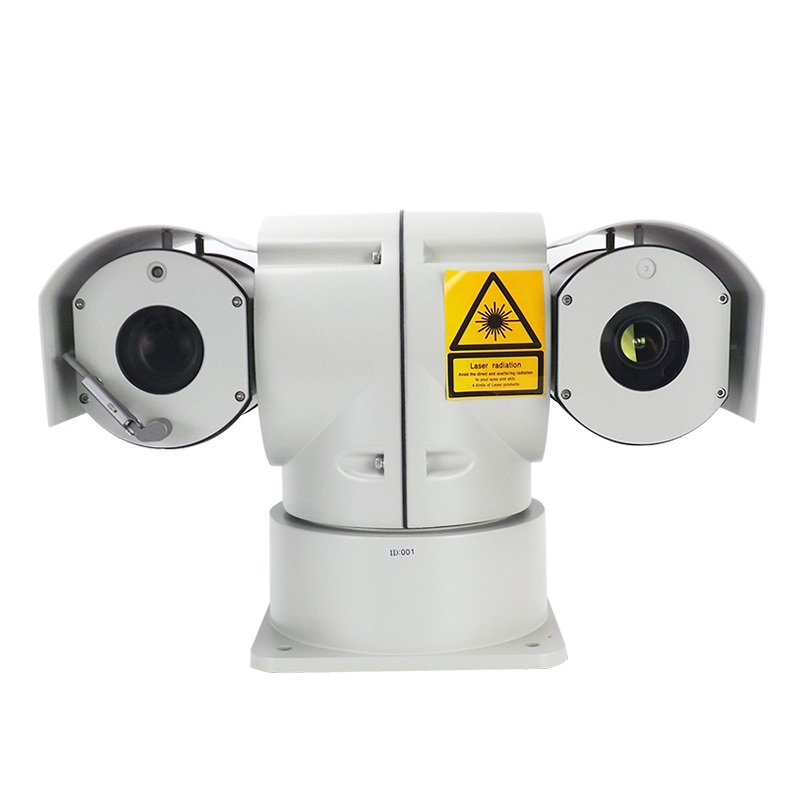

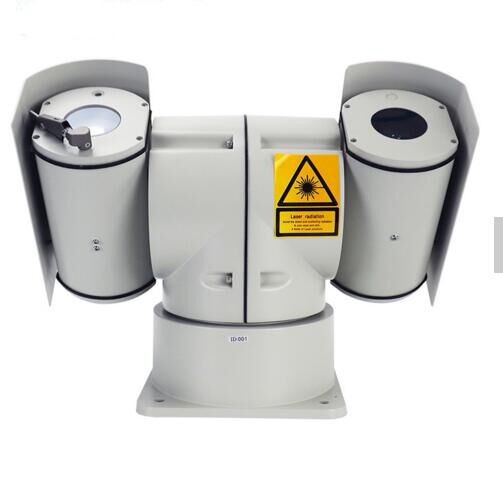

300m-500m Night Vision Laser PTZ Camera(SHJ-TA-L)

300m-500m Night Vision Laser PTZ CameraMODEL:SHJ-TA-LProduct Name:Laser PTZ cameraModel: SHJ-TA-A-L SHJ-TA-HD-L SHJ-TA-SDI-L SHJ-TA-AHD(CVI/TVI)-LFeatures:lIndepend
Availability:
  • Speed

300m-500m Night Vision Laser PTZ Camera(SHJ-TA-L)


300m-500m Night Vision Laser PTZ Camera

MODELSHJ-TA-L

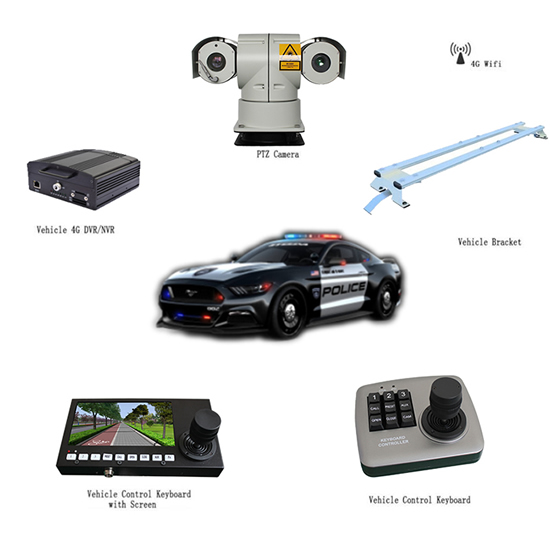

TL Complete System.jpg



Product Name:Laser PTZ camera

Model: SHJ-TA-A-L

SHJ-TA-HD-L

                    SHJ-TA-SDI-L

SHJ-TA-AHD(CVI/TVI)-L

Features

lIndependent defogging and defrosting module, which truly solves the fogging of camera lens caused by temperature difference in outdoor environment

lThe camera compartment uses high-quality heating parts to make the entire warehouse body work together to form an effective anti-fog and defogging pattern.

lAdopting the integrated structure of the upper and lower spindles, the PTZ camera bin and infrared bin will not be bumped and misplaced.

lStandard voltage regulator module filters the instantaneous unstable current of the vehicle to keep the gimbal stable

lPTZ high-speed rotation is smoother, low-speed rotation without jitter

lHigh-strength aluminum alloy design, protection grade IP66

lPTZ full range of dead angle monitoring

Laser:Adopts imported 808nm laser to achieve synchronous zoom, angle adjustable or automatically adjusted according to the camera multiple, laser spot angle of 1 ° to 50 °, laser 3 / 5W optional, night vision 300m-500m

HD IP: PTZ support mainstream megapixeldigital high-definition movement and HD SENSOR HD picture capture, compatible with mainstream HD platform and seamless docking, the maximum support 1080P output, support for dual-stream and high-definition capture, support IE browser

SDI HDPTZ support megapixel HD movement, HD-SDI digital interface output, megapixel digital high-definition image lossless, real-time transmission, no delay, a variety of resolution adjustable (1080p / 60 1080p / 30 1080p / 25 720p / 60 720p / 30 720p / 25)

Coaxial HDPTZ support common AHD / CVI / TVI coaxial HD movement, and support coaxial HD DVR output, the image without any coding compression, full real-time high-definition picture coaxial transmission

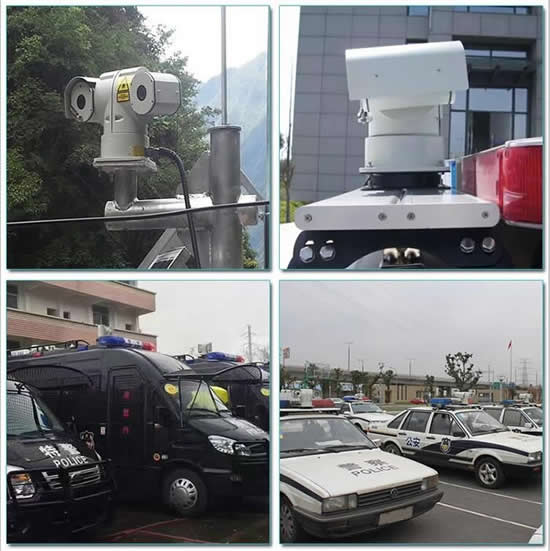

Application:110 police mobile law enforcement / fire emergency command / 120 emergency command system / road mobile patrol / urban management law enforcement / special vehicle mobile inspection

PTZ   Function


Pan preset speed

100°/s

Tilt   preset speed

80°/s

Pan   control speed

0°~60°/S

Tilt   control speed

0°~40°/S

Pan range

360°endless   rotation

Tilt range

+90° ~   -90°

Preset   positionsTracking

256   positions  6 tracking

Control   Way

RS485,   Built-in 16 protocol, Baud Rate from 2400Bps to 19200Bps optional

Relative   Humidity

Less than   90%

IP Grade

IP66

Working   Temperature

-35° ~   +55°

Impact   resistance requirements

≥4G

Wiper

Support

Installation

Variety of   installation according to the environment

Weight

6kg

Network   parameters


Video Compression

H.264/H.265

Audio Compression

G.722.1、G.711-a   law、G.711-u law、MP2L2、G.726、AAC、PCM

Compression output rate

32Kbps—12Mbps

Support Protocol

TCP/IPHTTPDHCPDNSDDNSRTPRTSPPPPoESMTPNTPUPnP

SNMPFTP802.1xQoSHTTPSIPv6   (SIPSRTP   optional)

Interface Protocol

ONVIF/PSIA/CGI/ISAPI

Storage Function

Support   MicroSD storage

Intelligent Arlarm

Motion   detection, mask alarm, full memory, memory mistake

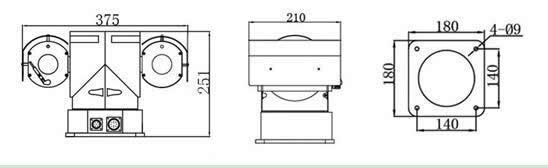

Measures and Diagram(mm)
