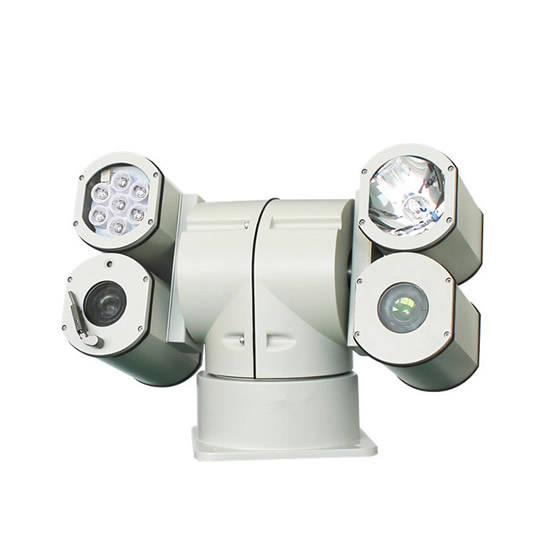

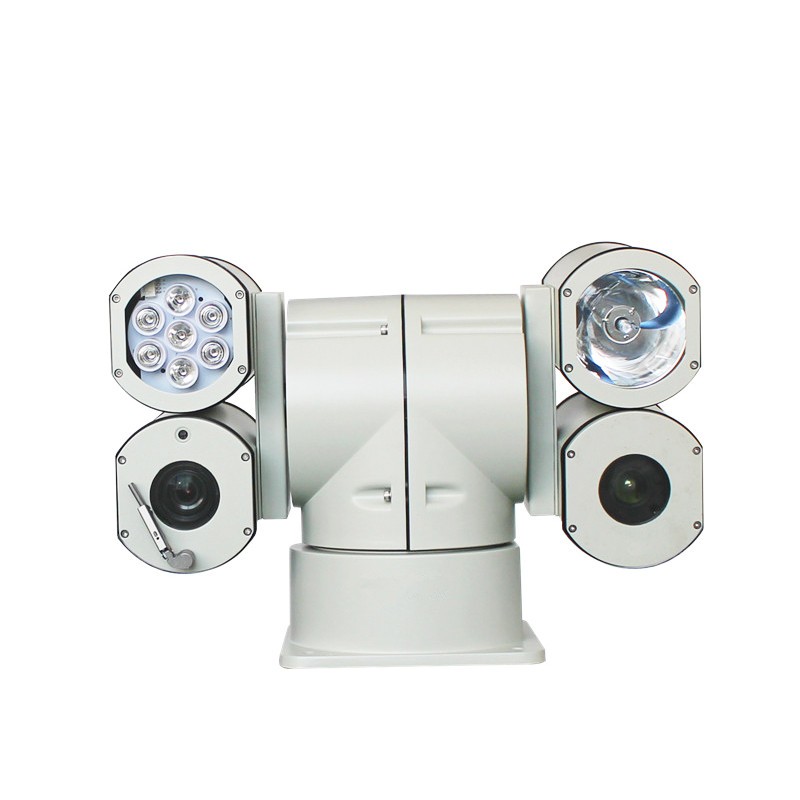

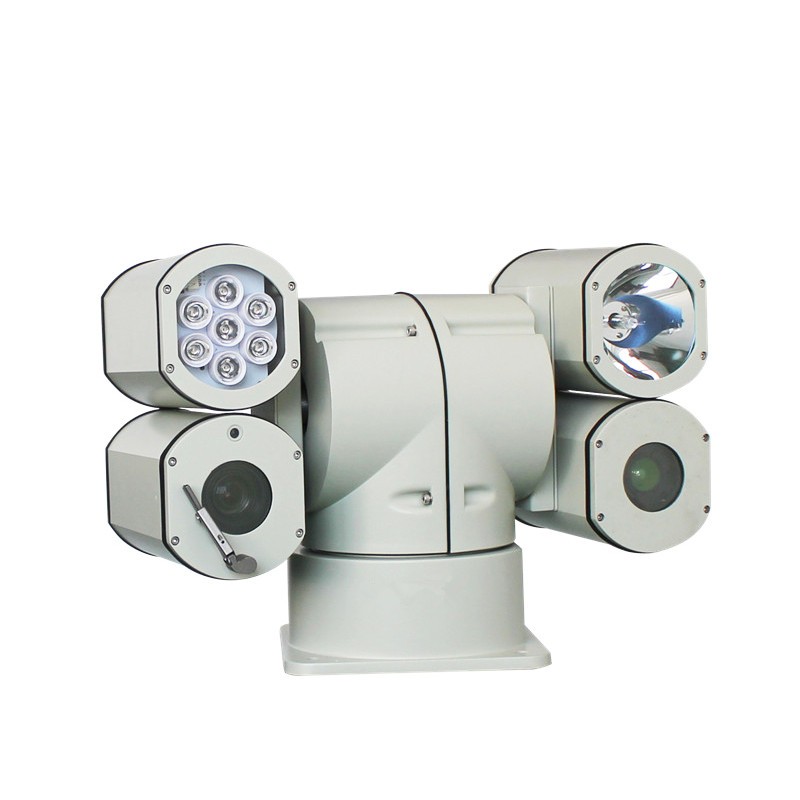

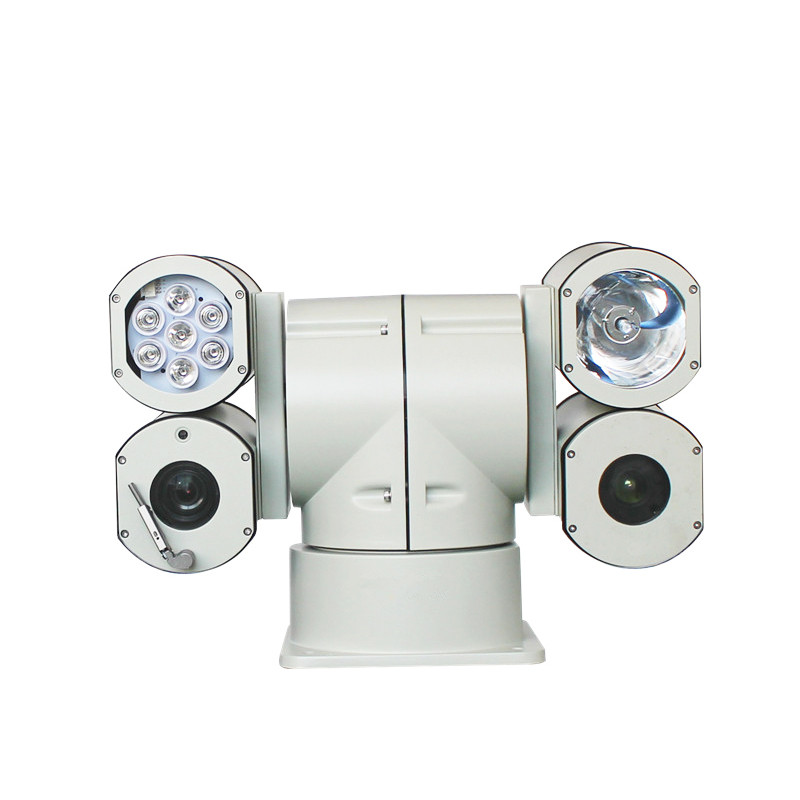

TA Multiple Fill Light PTZ Camera
MODEL: SHJ-TA-M (IR+Xenon Lamp+Laser)
Features：
lIndependent defogging and defrosting module, which truly solves the fogging of camera lens caused by temperature difference in outdoor environment
lThe camera compartment uses high-quality heating parts to make the entire warehouse body work together to form an effective anti-fog and defogging pattern.
lAdopting the integrated structure of the upper and lower spindles, the PTZ camera bin and infrared bin will not be bumped and misplaced.
lStandard voltage regulator module filters the instantaneous unstable current of the vehicle to keep the gimbal stable
lPTZ high-speed rotation is smoother, low-speed rotation without jitter
lHigh-strength aluminum alloy design, protection grade IP66
lPTZ full range of dead angle monitoring
IR：PTZ adopts imported array infrared lights，Multi-angle work together, the working life up to 30,000 hours, night vision is 100-120 meters
Xenon Lamp:PTZ adopts high brightness HID xenon lamp, night vision is 500 meters
Laser:Adopts imported 808nm laser to achieve synchronous zoom, angle adjustable or automatically adjusted according to the camera multiple, laser spot angle of 1 ° to 50 °, laser 3 / 5W optional, night vision 300m-500m
HD IP: PTZ support mainstream megapixeldigital high-definition movement and HD SENSOR HD picture capture, compatible with mainstream HD platform and seamless docking, the maximum support 1080P output, support for dual-stream and high-definition capture, support IE browser
SDI HD：PTZ support megapixel HD movement, HD-SDI digital interface output, megapixel digital high-definition image lossless, real-time transmission, no delay, a variety of resolution adjustable (1080p / 60 1080p / 30 1080p / 25 720p / 60 720p / 30 720p / 25)
Coaxial HD：PTZ support common AHD / CVI / TVI coaxial HD movement, and support coaxial HD DVR output, the image without any coding compression, full real-time high-definition picture coaxial transmission

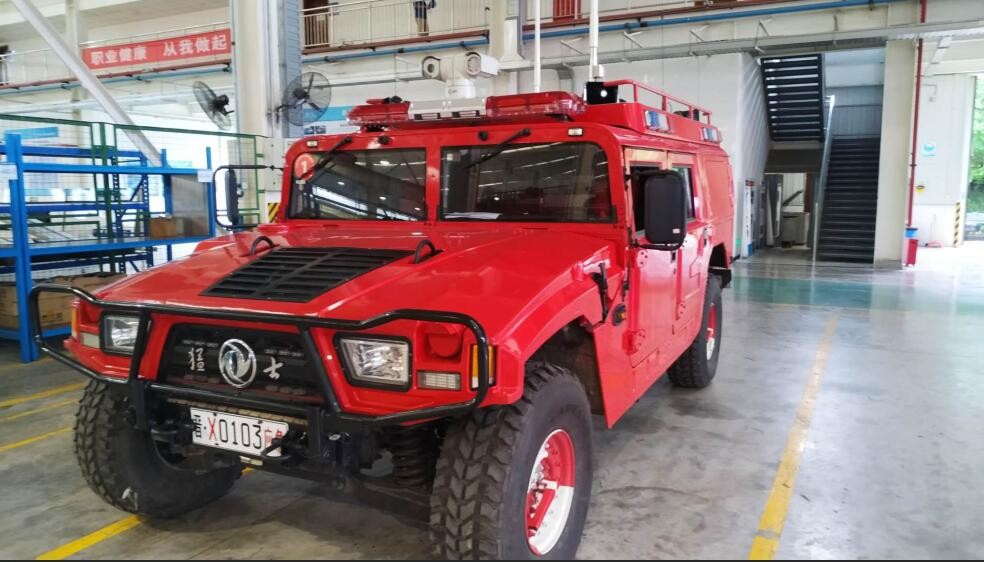

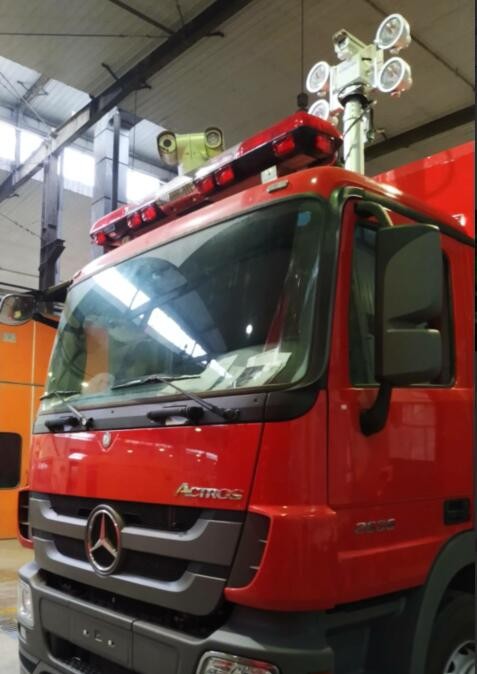

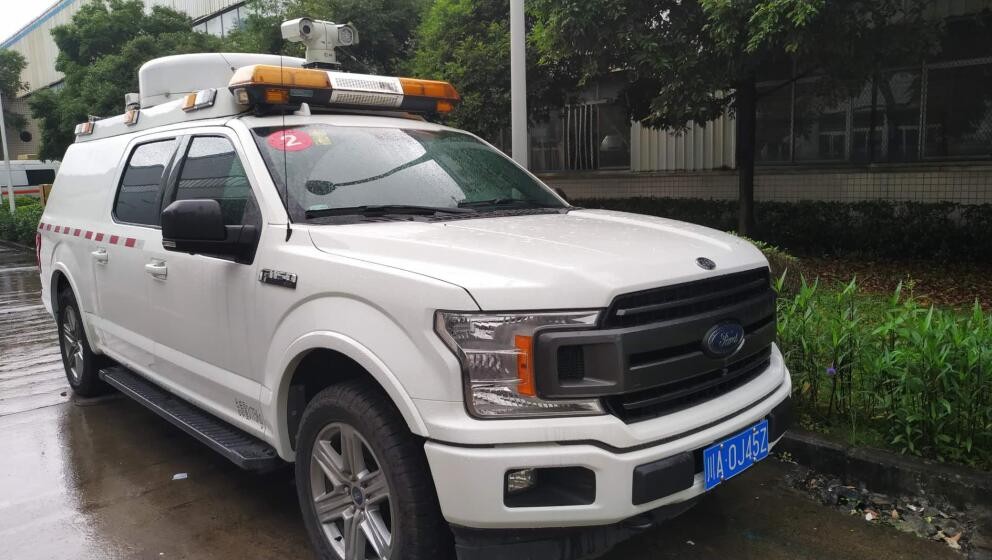

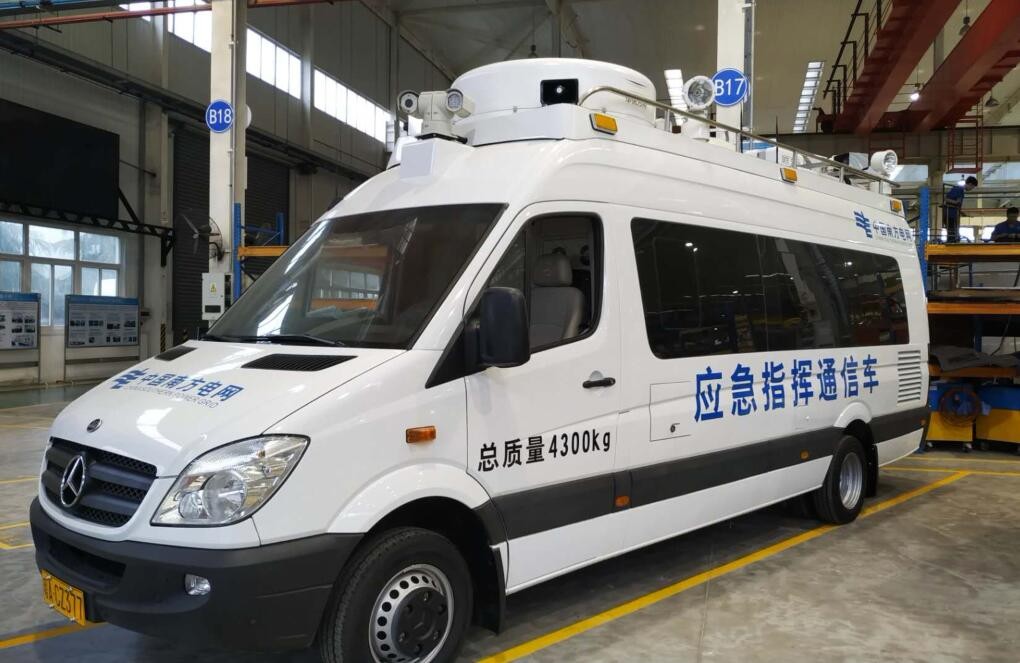

Application:110 police mobile law enforcement / fire emergency command / 120 emergency command system / road mobile patrol / urban management law enforcement / special vehicle mobile inspection
PTZ Function | |
Pan preset speed | 100°/s |
Tilt preset speed | 80°/s |
Pan control speed | 0°~60°/S |
Tilt control speed | 0°~40°/S |
Pan range | 360°endless rotation |
Tilt range | +90° ~ -90° |
Preset positions、Tracking | 256 positions 6 tracking |
Control Way | RS485, Built-in 16 protocol, Baud Rate from 2400Bps to 19200Bps optional |
Relative Humidity | Less than 90% |
IP Grade | IP66 |
Working Temperature | -35° ~ +55° |
Impact resistance requirements | ≥4G |
Wiper | Support |
Installation | Variety of installation according to the environment |
Weight | 8kg |
Network parameters： | |
Video Compression | H.264/H.265 |
Audio Compression | G.722.1、G.711-a law、G.711-u law、MP2L2、G.726、AAC、PCM |
Compression output rate | 32Kbps—12Mbps |
Support Protocol | TCP/IP、HTTP、DHCP、DNS、DDNS、RTP、RTSP、PPPoE、SMTP、NTP、UPnP SNMP、FTP、802.1x、QoS、HTTPS、IPv6 (SIP、SRTP optional) |
Interface Protocol | ONVIF/PSIA/CGI/ISAPI |
Storage Function | Support MicroSD storage |
Intelligent Arlarm | Motion detection, mask alarm, full memory, memory mistake |

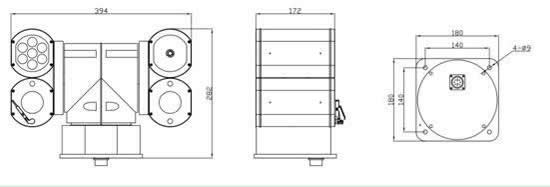

Measures and Diagram：(mm)
