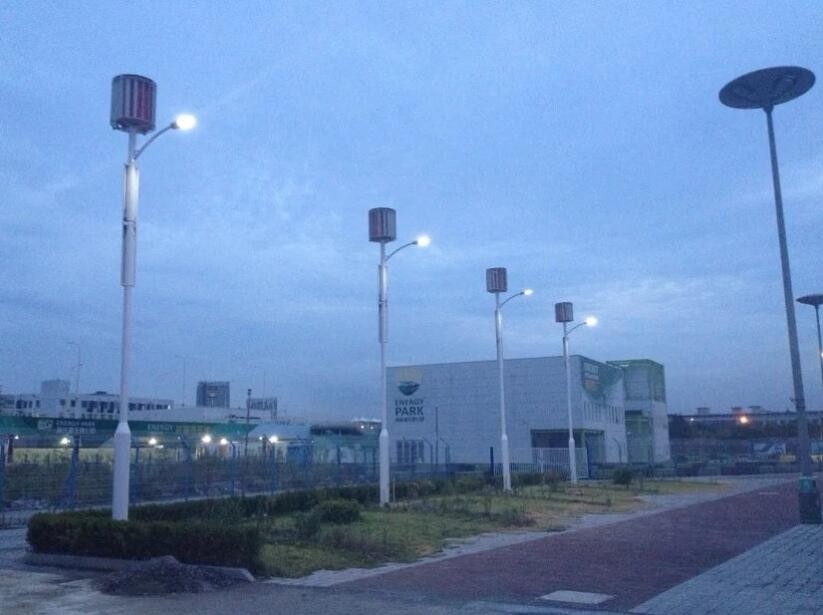

100W 10m Vertical Axis Wind Turbine Solar Hybrid LED Street Lamp(SHJ-LD100-W)

100W 10m Vertical Axis Wind Turbine Solar Hybrid LED Street LampModel: SHJ-LD100-WAdvantages compared with Horziontal Wind Generator and other suppliers products: 1. High Quality2. Competitive Price3.

Availability:



Inquire sales@shj-electronic.com

Brand: Speed

Product Description

100W 10m Vertical Axis Wind Turbine Solar Hybrid LED Street Lamp(SHJ-LD100-W)

100W 10m Vertical Axis Wind Turbine Solar Hybrid LED Street Lamp

Model: SHJ-LD100-W

Advantages compared with Horziontal Wind Generator and other suppliers products:

1. High Quality
2. Competitive Price
3. High Effiency
4. Low Noise
5. Very Beautiful apperance
6. Long Working Life
7. It can bear strong wind speed
8. Fast Delivery Time(We suggest only buy Wind Turbine Generator+Controller+Invert+Solar Panel+Gel Battery)

Technial Parameter:

Wind Solar hybrid streetlight Model: SHJ-LD100-W
Wind Speed	Start up wind speed	0.5m/sec
	Cut in wind speed	1.2m/sec
	Rated wind speed	10.0m/sec
	Safety wind speed	<60m/sec
Safety Control	Brake	Automatic electromagnetic brake
Blades	Length：1000mm, Width：200mm, Diameter：900mm
	Material：	6063 Aluminum, surface spray
	Color:	White
Generator	Type	Maglev generator
	Rated wind speed	150rpm/min
	Rated power	100W
	Generator case	Aluminum alloy die-casting
Solar panel	Mono crystalline solar panel and brackets	100W X 2pcs
LED Lamp	Power	50W
	Flux lumineux	10000LM—12000LM
	Working hours	11 hours per day, (6 hours full power, 5 hours half power)
	Lifespan	50000hours
Battery	Gel battery	100AHX2pcs
	Back up days when there is no sun, no wind	2 days
	Life span	6 years
Pole	Height	8.0m
	Bottom diameter	273mm
	Upper diameter	140mm
	Material	Thickness: 3.5mm-Q235 Steel
	Housing	Hot-dip galvanizing + spray
Controller	Wind solar hybrid model	600W/Low voltage charging function
	Charging system	PWM
	Lighting control	Time control and Light control function
	Output voltage	DC24V
