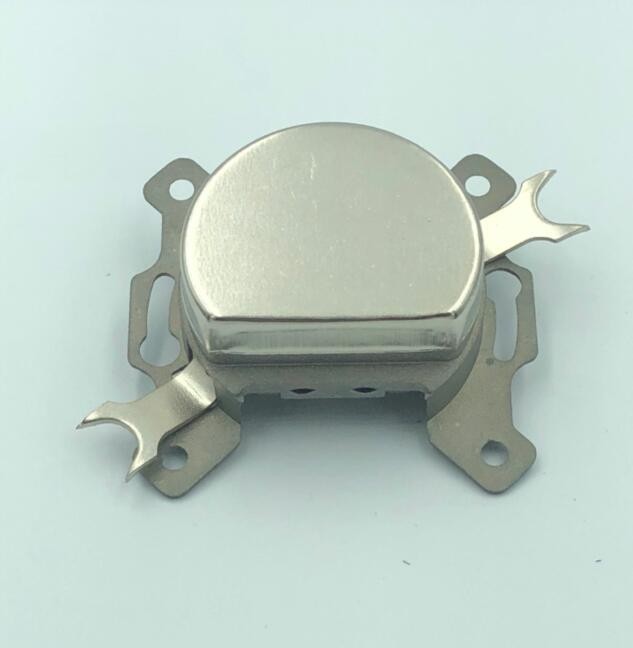

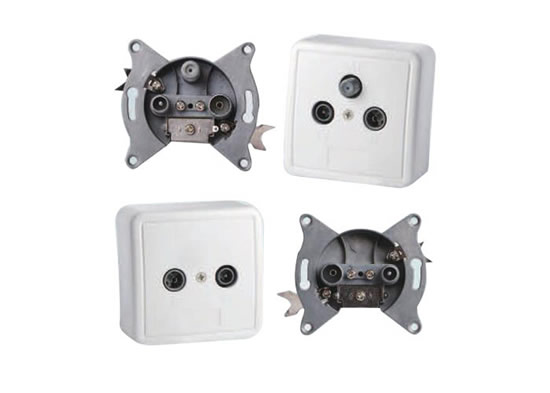

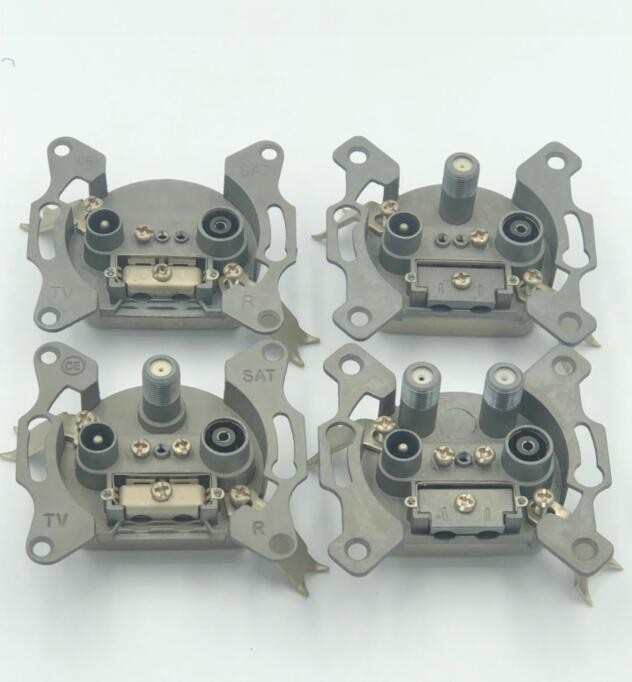

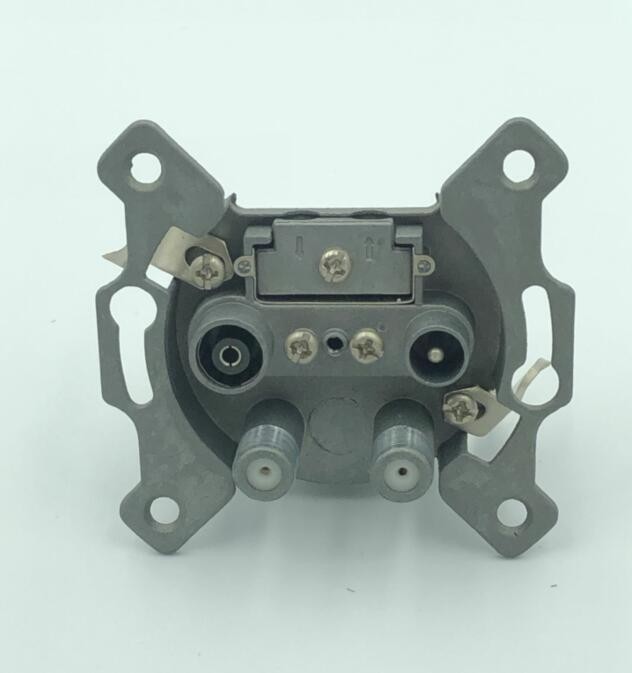

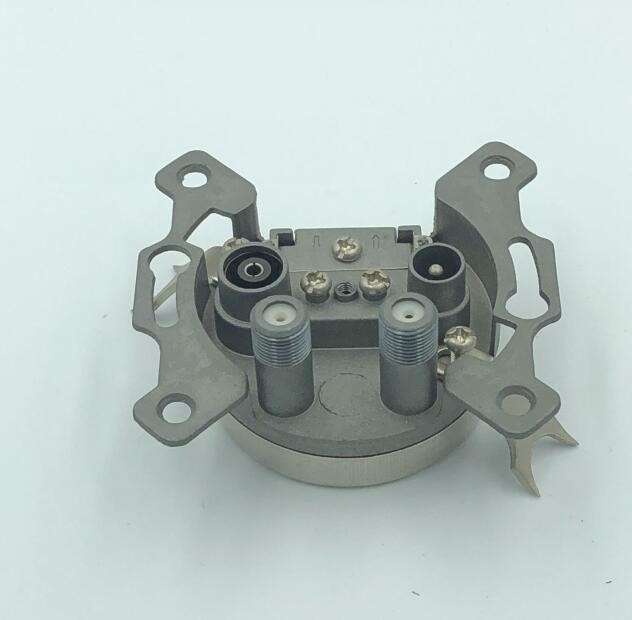

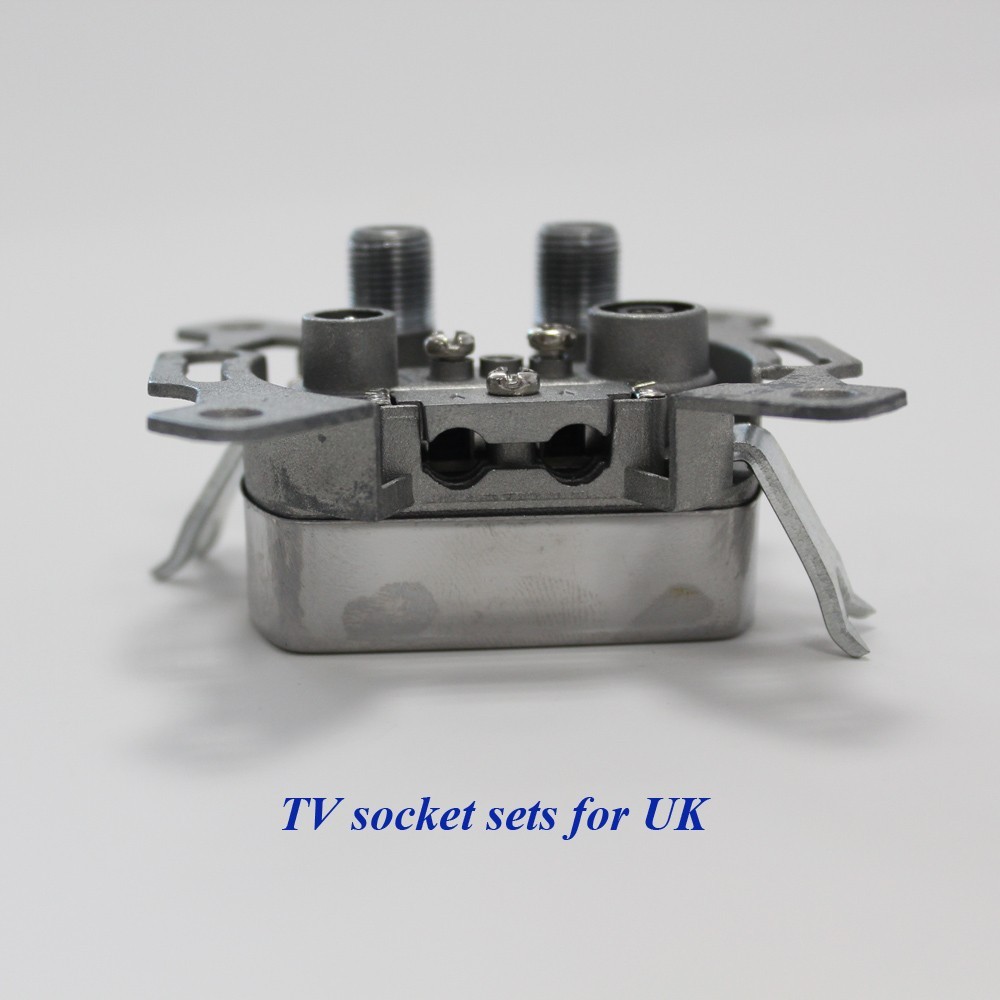

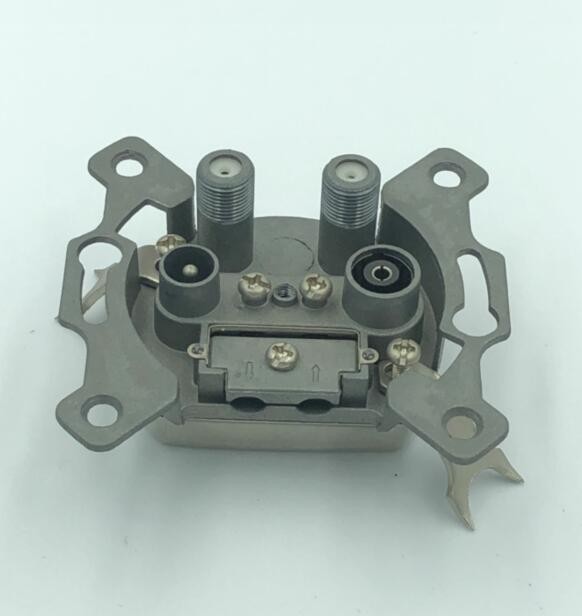

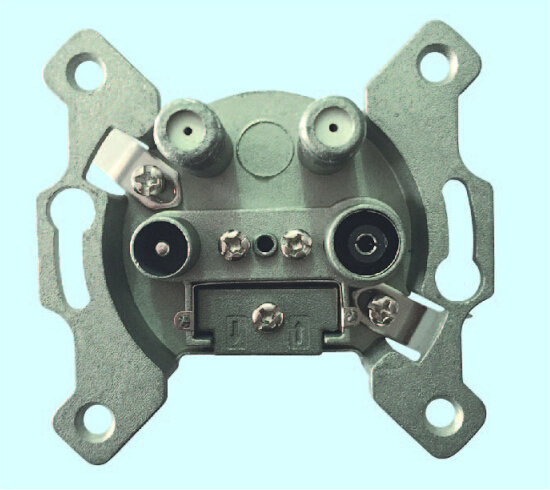

4 Hole 5-2400MHZ TV Wall Socket Outlet(TV+FM+SAT+SAT)
Model: SHJ-TWS007
Product Features:
1. Zinc die cast housing, nickel-plated
2. All ports connector, 75Ω
3. Original and 100% new
4. All tested one by one before shipping, make sure all of our product for audio deviceis without dead spot and grey spot.
5. ODM/OEM accept
6. Competitive price and prompt delivery
Parameter description:
TV+FM+SAT+SAT
Parameter | Frequency Range | ITEM:01T | ITEM:02T | ITEM:TV+SAT | ITEM:TV+FM |
IN2-SAT2 | 950-2300MHz | 2.0dB MAX | |||
IN1-SAT1 | 950-2150MHz | 2.5dB MAX | 2.5dB MAX | 2.5dB MAX | |
2150-2300MHz | 3.5dB MAX | 3.5dB MAX | 3.5dB MAX | ||
IN1-TV | 450-860MHz | 3.0dB MAX | 3.0dB MAX | 3.0dB MAX | 2.5dB MAX |
IN1-FM | 88-103MHz | 2.0dB MAX | |||
88-230MHz | 3.0dB MAX | 3.0dB MAX | |||
ISOLATIONS | 5-860MHz | 20dB MIN | 20dB MIN | 20dB MIN | 20dB MIN |
ALL PORTS | 950-2300MHz | 18dB MIN | 18dB MIN | 18dB MIN | |
Return Loss | 5-860MHz | 8-12dB MIN | 8-12dB MIN | 8-12dB MIN | 8-12dB MIN |
ALL PORTS | 950-2300MHz | 6-10dB MIN | 6-10dB MIN | 6-10dB MIN | |
Power Passing | SAT1,SAT2 | 500mA (Max) | 500mA (Max) | 500mA (Max) |
