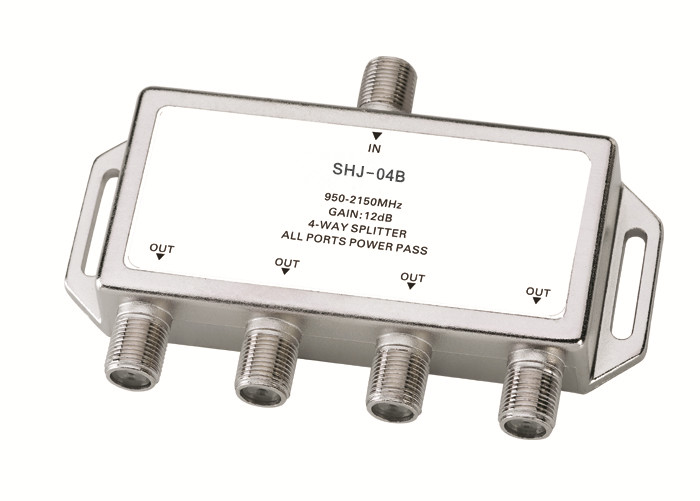

SAT 4-Way Amplifier Splitter
Model: SHJ-04B
Features:
lZinc die-cast housing, nickel-plated
lEasy installation with two edge hole sites
lScreening factor: 950-2150MHz≥100dB
lSuitable for SATV
lPower passing-24V 0.8A(MAX.)
lAll ports F-(f)connector,75Ohm
Parameter description:
Frequency Range (MHz) | Gain(dB) | Return Loss(dB) | Noise Figure(dB) |
950-1750 | ≥10 | ≥20 | ≤12 |
1750-2150 | ≥11.5 | ≥20 | ≤10 |
