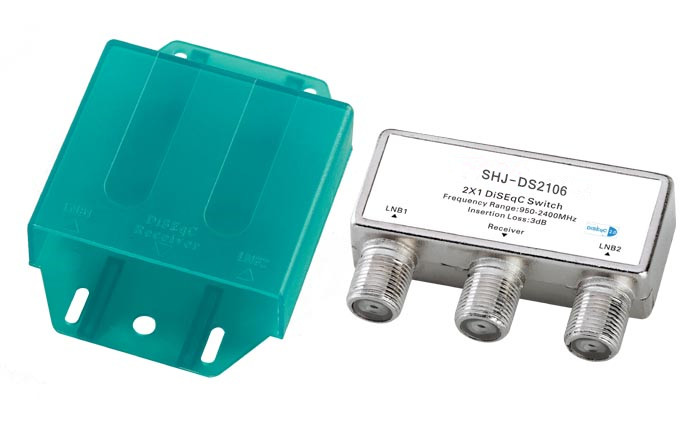

950-2400MHZ 2X1 DiSEqC switch (SHJ-DS2106)
MODEL: SHJ-DS2106
Features:
● Zinc die-cast housing, nickel-plated
● Excellent quality component , professional circuit design and low loss
● Excellent quality chip , professional program design and compatible with more types of satellite receiver
● DiSEqC 2.0 , supports bi-directional DiSEqC full control functions
● Select one of two satellite signals through DiSEqC commands supplied from satellite receiver
● Utilize one coaxial cable to transmit control instruction and satellite signal simultaneously
● Support DiSEqC “standby” command
● Can work normally outdoors under unsheltered circumstance, exquisite plastic case shell attached
Parameter description:
Specifications
Item | Specification | Item | Specification |
Frequency Range | 950-2400(MHz) | Normal Working Voltage | 12-20(V) |
Insertion Loss | 3(dB) | DC Power Consumption | 10(mA) |
Isolation | 20(dB) | DC Max Power Passing | 500(mA) |
Return Loss | 8(dB) | Impedance(all ports) | 75(Ω) |
