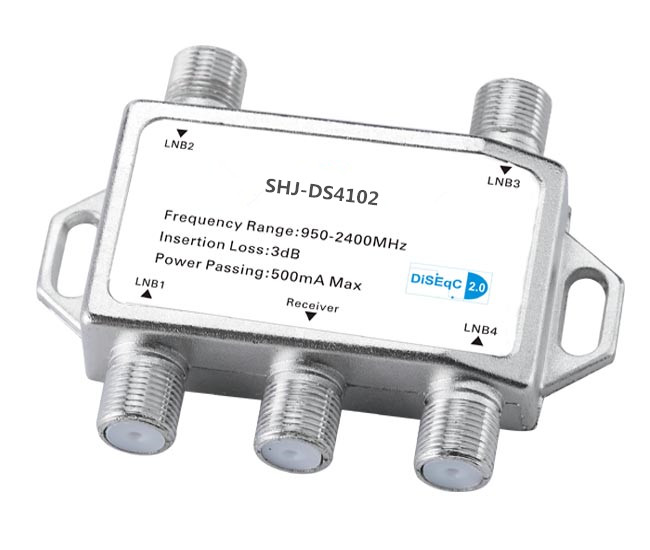

MODEL: SHJ-DS4102
Features:
lZinc die-cast housing, nickel-plated
lExcellent quality component , professional circuit design and low loss
lExcellent quality chip , professional program design and compatible
with more types of satellite receiver
lDiSEqC 2.0 , supports bi-directional DiSEqC full control functions
lSelect one of four satellite signals through DiSEqC commands supplied
from satellite receiver
lUtilize one coaxial cable to transmit control instruction and satellite
signal simultaneously
lSupport DiSEqC “standby” command
Parameter description:
Item | Specification | Item | Specification |
Frequency Range | 950-2400(MHz) | Normal Working Voltage | 12-20(V) |
Insertion Loss | 3(dB) | DC Power Consumption | 10(mA) |
Isolation | 20(dB) | DC Max Power Passing | 500(mA) |
Return Loss | 8(dB) | Impedance(all ports) | 75(Ω) |
