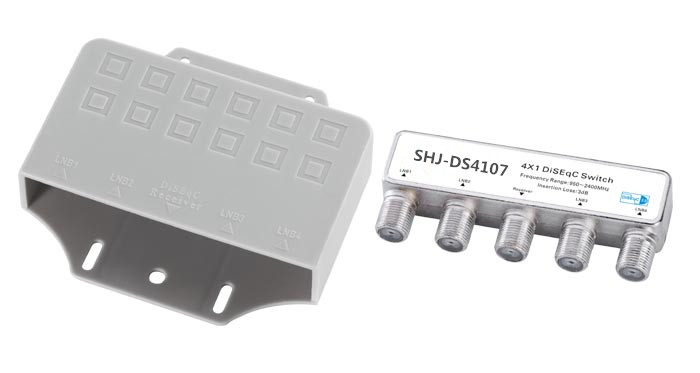

MODEL: SHJ-DS4107
Features:
lZinc die-cast housing, nickel-plated
lExcellent quality component , professional circuit design and low loss
lExcellent quality chip , professional program design and compatible with more types of satellite receiver
lDiSEqC 2.0 , supports bi-directional DiSEqC full control functions
lSelect one of four satellite signals through DiSEqC commands supplied from satellite receiver
lUtilize one coaxial cable to transmit control instruction and satellite signal simultaneously
lSupport DiSEqC “standby” command
lCan work normally outdoors under unsheltered circumstance, exquisite plastic case shell attached
Parameter description:
Item | Specification | Item | Specification |
Frequency Range | 950-2400(MHz) | Normal Working Voltage | 12-20(V) |
Insertion Loss | 3(dB) | DC Power Consumption | 10mA |
Isolation | 20(dB) | DC Max Power Passing | 500mA |
Return Loss | 8(dB) | Impedance(all ports) | 75Ω |
