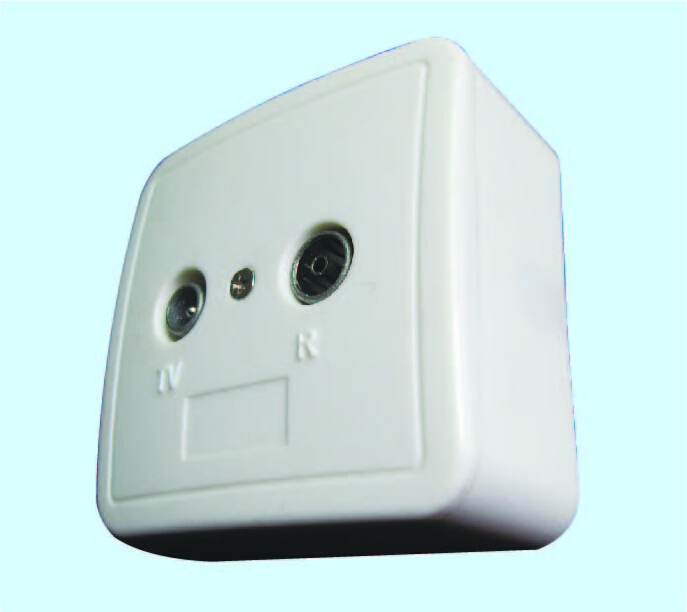

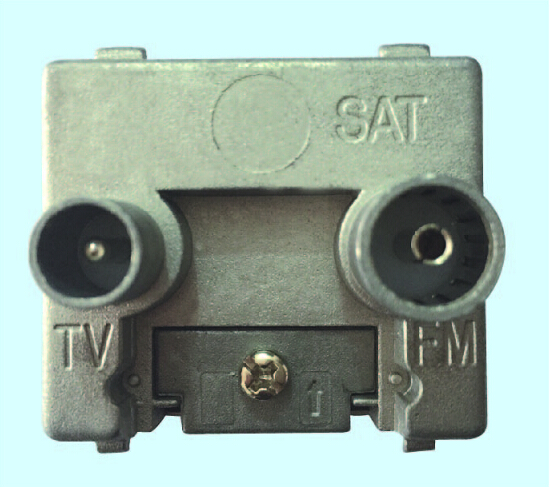

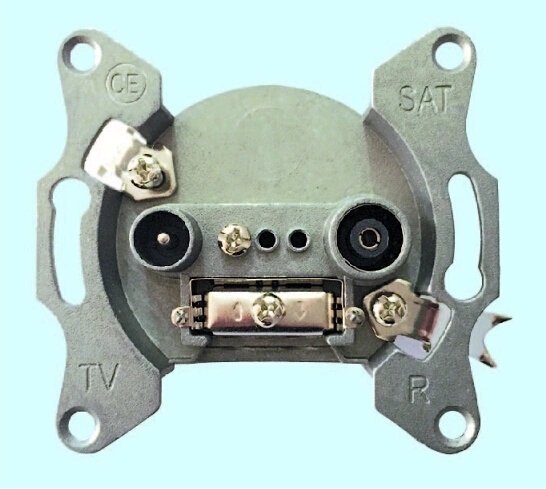

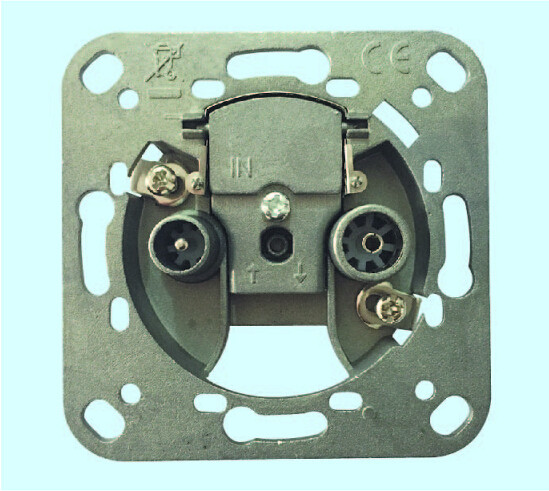

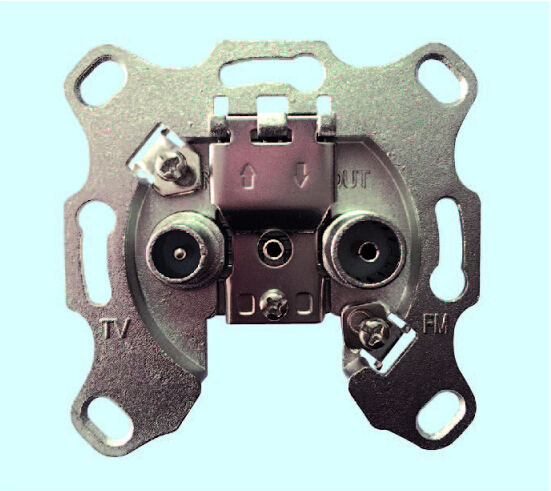

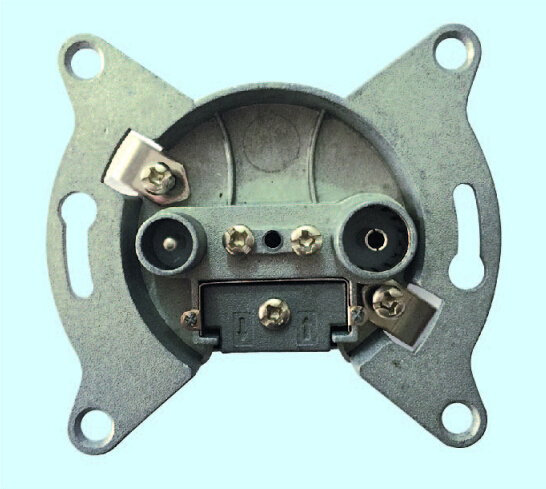

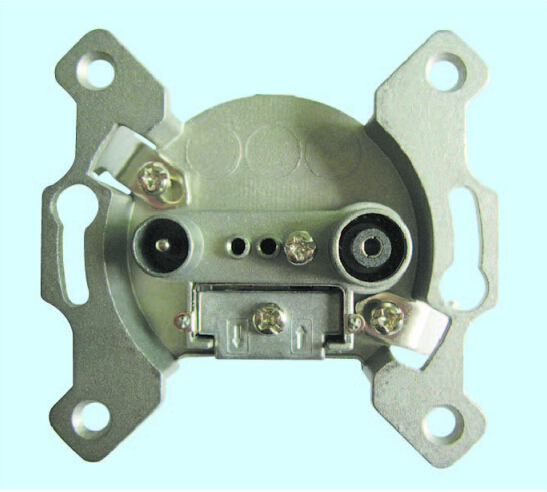

5-1000MHZ TV Wall Socket TV+FM TWS031

5-1000MHZ TV Wall Socket Outlet(TV+FM)Model: SHJ-TWS031 Product Features: l Zinc die cast housing, nickel-platedl All ports connector, 75Ωl Original and 100% newl All tested one by one before shipping

Availability:



Inquire sales@shj-electronic.com

Brand: Speed

Product Description

5-1000MHZ TV Wall Socket TV+FM TWS031

5-1000MHZ TV Wall Socket Outlet(TV+FM)

Model: SHJ-TWS031

Product Features:

l Zinc die cast housing, nickel-plated

l All ports connector, 75Ω

l Original and 100% new

l All tested one by one before shipping, make sure all of our product for audio deviceis without dead spot and grey spot.

l ODM/OEM accept

l Competitive price and prompt delivery

Parameter description:

TV+FM

Parameter	Frequency Range	ITEM:T	ITEM:8	ITEM:10	ITEM:12	ITEM:14	ITEM:16
IN-OUT	5-860MHz		3.0dB MAX	2.7dB MAX	2.5dB MAX	2.0dB MAX	1.8dB MAX
IN-TV	5-68MHz	1.5dB MAX	8.5dB MAX	11.0dB MAX	12.5dB MAX	15.0dB MAX	17.5dB MAX
IN-TV	125-860MHz	2.5dB MAX	9.0dB MAX	11.5dB MAX	13.5dB MAX	15.5dB MAX	17.5dB MAX
IN-FM	87.5-108MHz	2.5dB MAX	9.0dB MAX	12.0dB MAX	13.5dB MAX	15.5dB MAX	17.5dB MAX
ISOLATIONS	5-860MHz	20dB MIN	20dB MIN	20dB MIN	20dB MIN	20dB MIN	20dB MIN
ALL PORTS
Return Loss	5-860MHz	8-12dB MIN	8-12dB MIN	8-12dB MIN	8-12dB MIN	8-12dB MIN	8-12dB MIN
ALL PORTS
