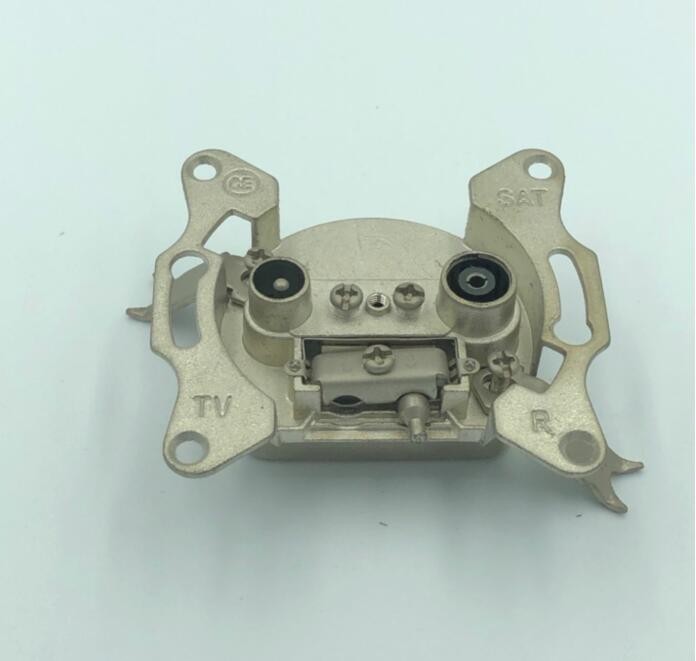

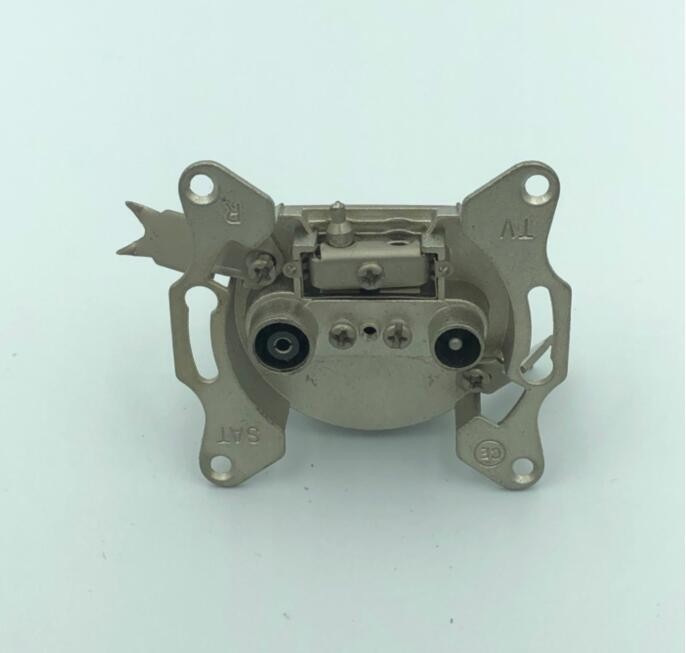

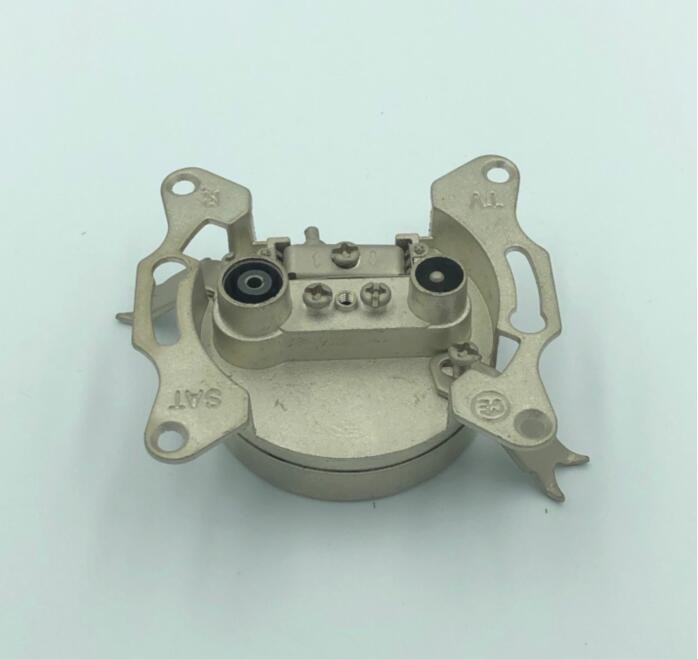

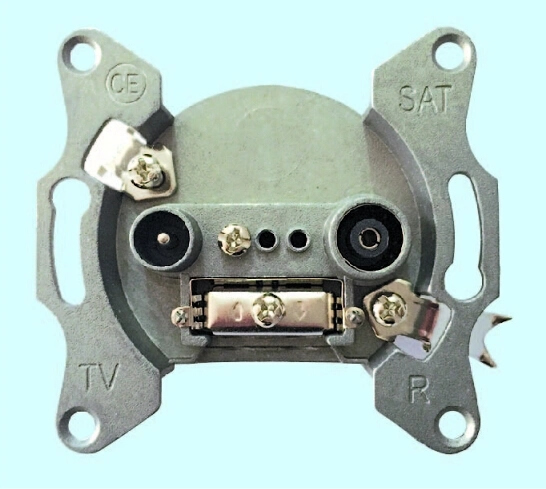

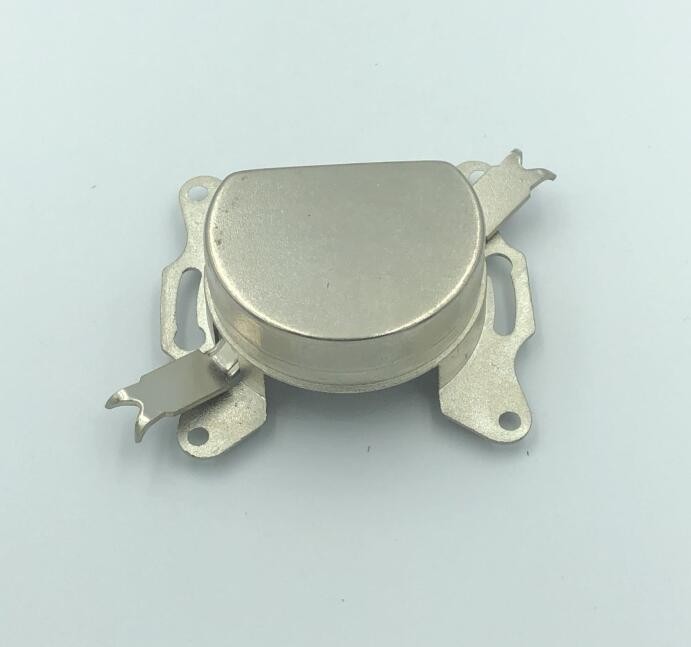

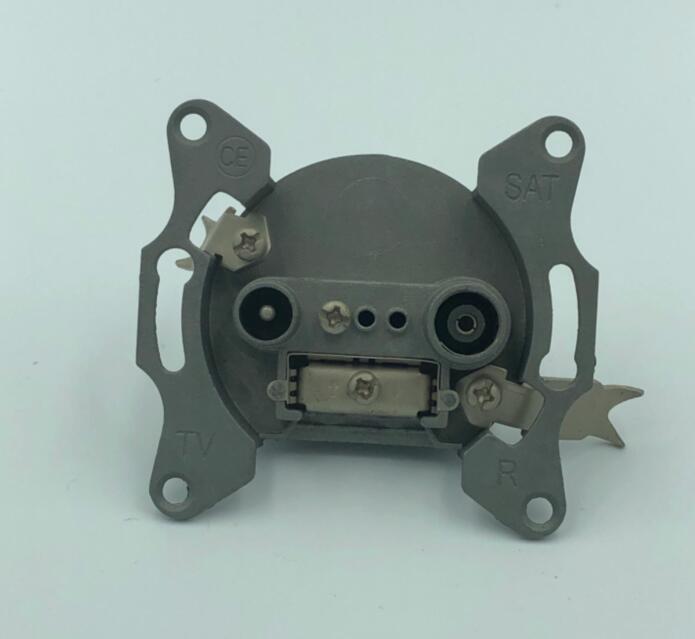

5-1000MHZ TV Wall Socket Outlet(TV+FM)
Model: SHJ-TWS001
Product Features:

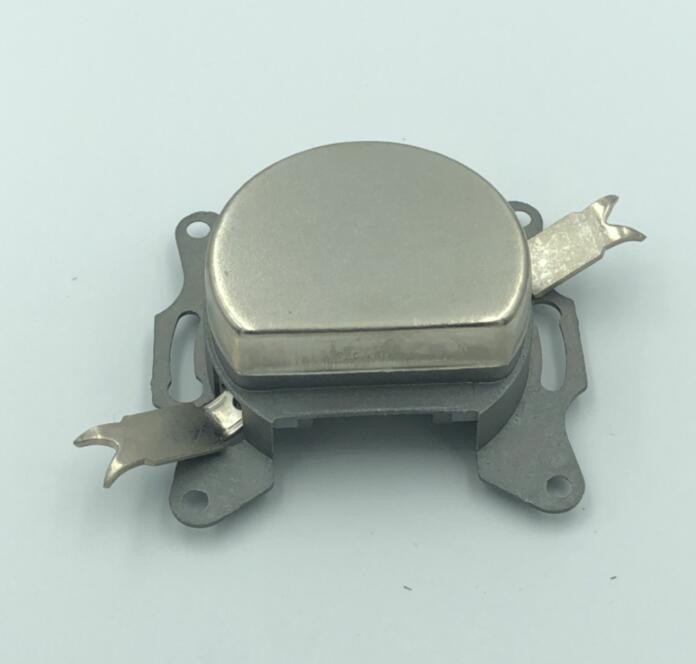

● Zinc die cast housing, nickel-plated
● All ports connector, 75Ω
● Original and 100% new

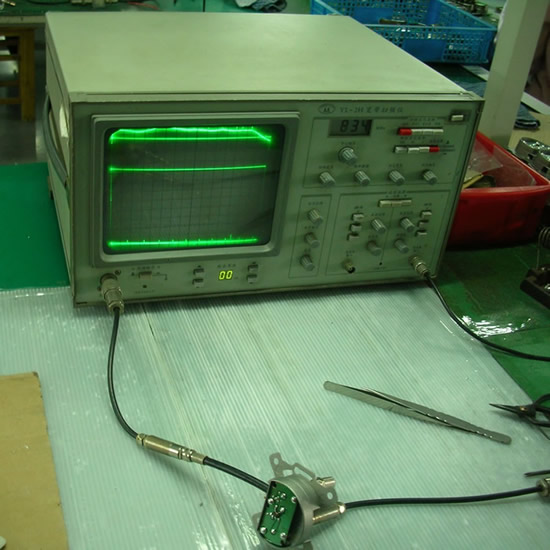

● All tested one by one before shipping, make sure all of our product for audio deviceis without dead spot and grey spot.
● ODM/OEM accept
● Competitive price and prompt delivery
Parameter description:
TV+FM
Parameter | Frequency Range | ITEM:T | ITEM:8 | ITEM:10 | ITEM:12 | ITEM:14 | ITEM:16 |
IN-OUT | 5-860MHz | 3.0dB MAX | 2.7dB MAX | 2.5dB MAX | 2.0dB MAX | 1.8dB MAX | |
IN-TV | 5-68MHz | 1.5dB MAX | 8.5dB MAX | 11.0dB MAX | 12.5dB MAX | 15.0dB MAX | 17.5dB MAX |
125-860MHz | 2.5dB MAX | 9.0dB MAX | 11.5dB MAX | 13.5dB MAX | 15.5dB MAX | 17.5dB MAX | |
IN-FM | 87.5-108MHz | 2.5dB MAX | 9.0dB MAX | 12.0dB MAX | 13.5dB MAX | 15.5dB MAX | 17.5dB MAX |
ISOLATIONS | 5-860MHz | 20dB MIN | 20dB MIN | 20dB MIN | 20dB MIN | 20dB MIN | 20dB MIN |
ALL PORTS | |||||||
Return Loss | 5-860MHz | 8-12dB MIN | 8-12dB MIN | 8-12dB MIN | 8-12dB MIN | 8-12dB MIN | 8-12dB MIN |
ALL PORTS |
