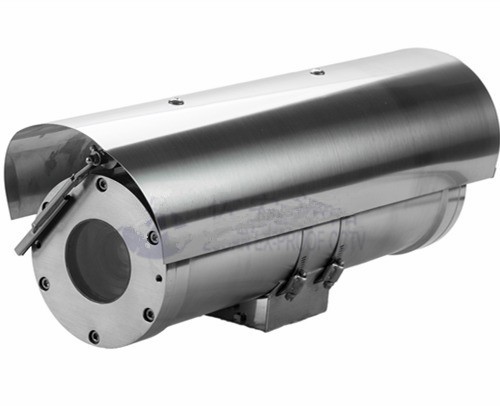

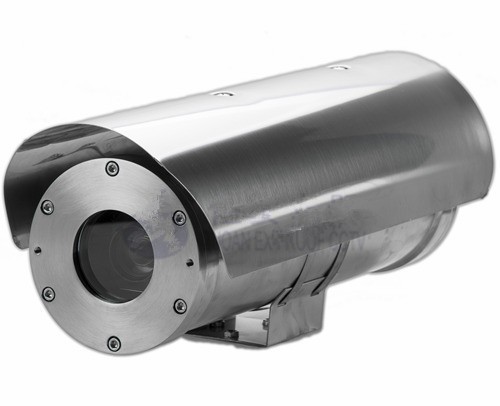

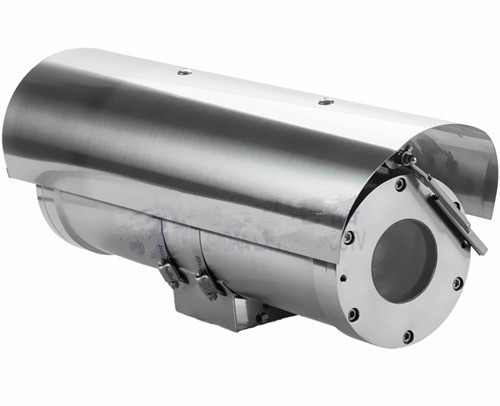

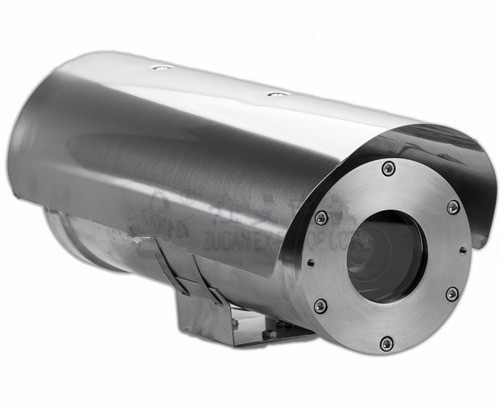

ATEX Certificate 50m Night Vision Explosion-Proof IR Camera
Model: SHJ-AEP001
Product Introduction:
SHJ-AEP001 is we designed classic explosion-proof camera, which can load various camera.The explosion proof camera can apply for Zone 1 and Zone 2 hazardous areas that explosive mixture of group IIA, IIB, IIC, T1~T6 gases, vapors and air may exist..
Certificate
ATEX Certificate Mark | Ⅱ2G Ex db op is ⅡC T6 Gb Ⅱ2D Ex tb op is ⅢC T80 ºC Db |
Certificate | Presafe 17 ATEX 11327X, IECEx PRE18.0013X |
Standards | IEC/EN60079 |
Mechanical
Housing | Stainless steel 304 or 316L |
Surface | Optional electro-polish or painting |
Ingress protection | IP68 (1.2m/ 45min) |
Cable thread hole | 2pcs G3/4 or NPT3/4 |
Electrical
Voltage | AC100V～AC240V or AC24V |
Power | 15W/25W (with thermostat) |
Surge Protect | Optional, TVS6000V surge protect |
Optical Fiber output | Optional, multimode or single mode |
Optical Video signal | 1-way video output |
Optional network signal | RJ45 |
Optical Audio | 1-way input, 1-way output |
Optical Alarm | 2-way alarm input, 1-way alarm output |
Address code: | 0/1 |
Trail cable | 2m integrated cable |
Ambient
Ambient temperature | -25°～+60°/-40℃～+60℃ |
Air pressure | 80Kpa to 110Kpa |
Relative Humidity | ≦95% (no condensation) |
IR Lights
Lights | 50m infrared lights |
Lights Control | Support |
Network
Network Interface | 1pcs of RJ45, support 10M/100M/1000M |
Video Compression | H.264 main profile / MJPEG |
Audio Compression | G.722.1/ G.711-a law/ G7.11-u law/MP2L2/G.726 |
Voice Intercom | Support |
Stream | Support three streams |
Internet Protocol | IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP ,DNS,DDNS,NTP,RTSP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE |
Time Display | Support |
Standard | ONVIF, CGI, GB/T28181, PISA |
IE browser | Support IE7 or above, Google, Firefox, Apple |
Security | Password protection, Multiple access control |
Starlight Camera
Image Sensor | 1/1.8" Progressive Scan CMOS |
Effective pixel | 2MP 1920*1080 |
Shuttle | Auto/Manual |
Min. Illumination | Color 0.001Lux B/W: 0.0001Lux |
Day&night | Auto/ Color/ BW |
S/N ratio | ＞52dB（AGC off） |
Gain | off/ lower/ higher |
Digital noise reduction | 2D/3D DNR |
White Balance | Auto/ Manual/ Auto tracking white balance/ indoor/outdoor/ Sodium Lamp/ Fluorescent Lamp |
3D DNR | Support |
BLC | ON/OFF |
Image setting | Mirror, Saturation, Brightness, Contrast, Sharpness adjustable |
General
Model | SHJ-APE001 |
Overall dimension | 380*335*170mm |
Net Weight | 13.9kg |
