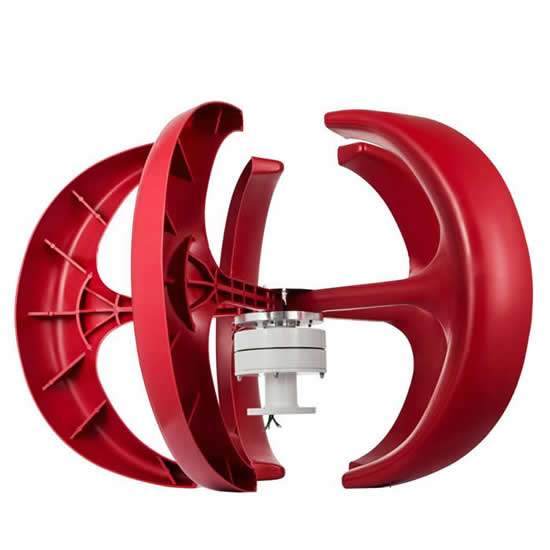

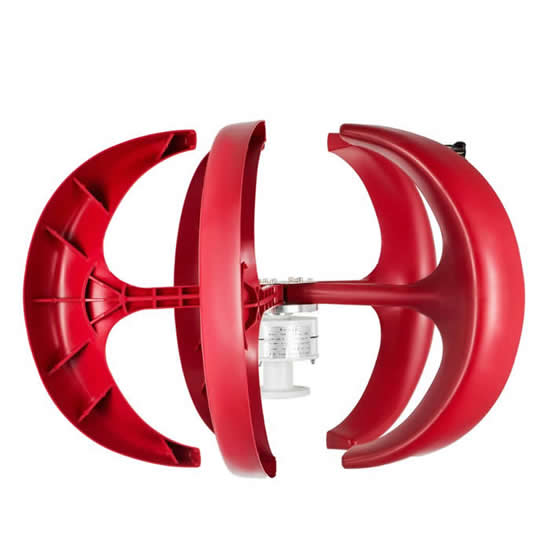

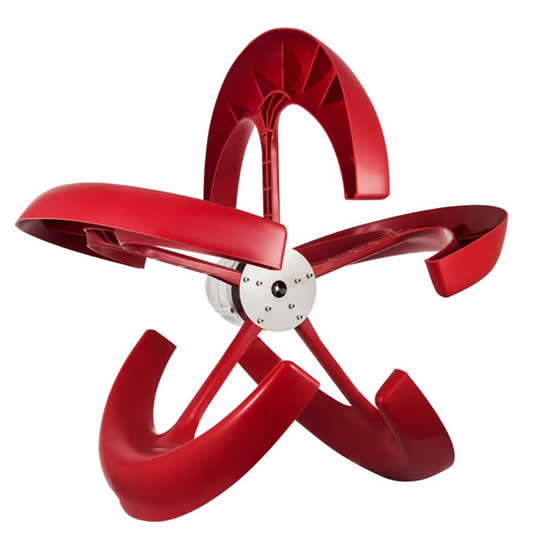

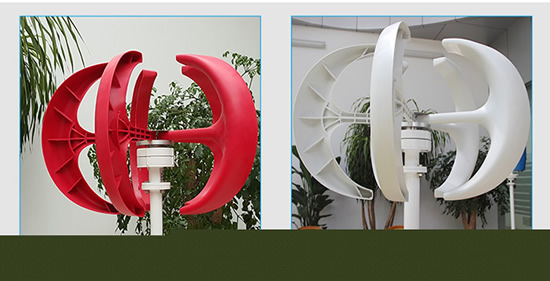

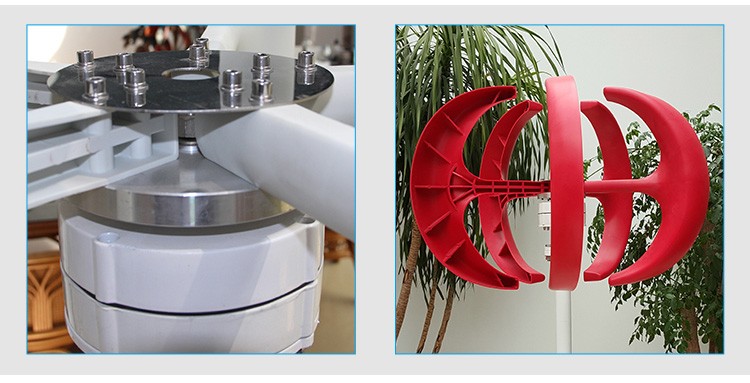

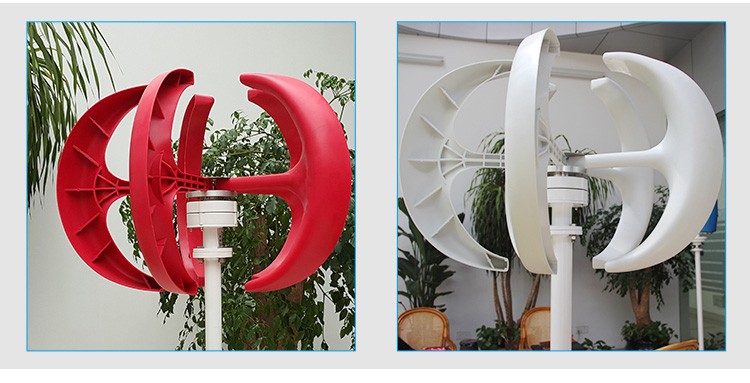

R-Type Vertical Axis Wind Turbine 100W-300W
Product Features:
lLow start up wind speed; beautiful appearance, low vibration operation, low noise

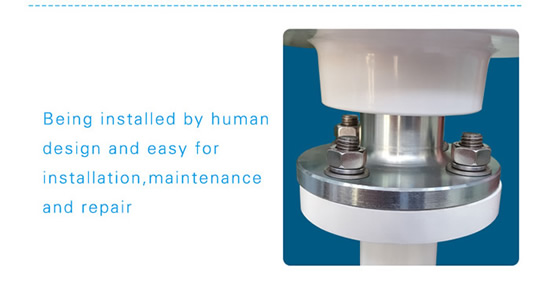

lBeing installed by human design and easy for installation, maintenance and repair.

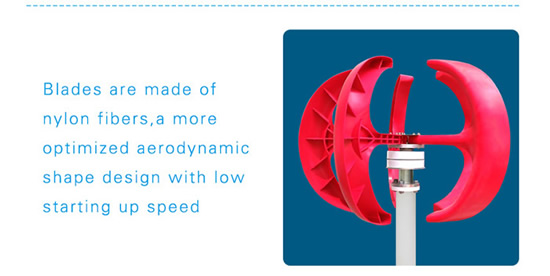

lBeing molded through precise injection with new process, together with the optimized design of aerodynamic contour and structure, our wind turbine blades have such advantages: high utilization of wind energy which contributes to the annual energy output.

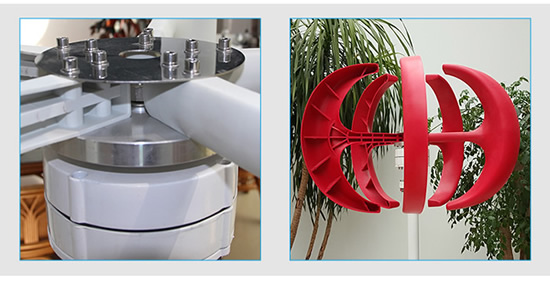

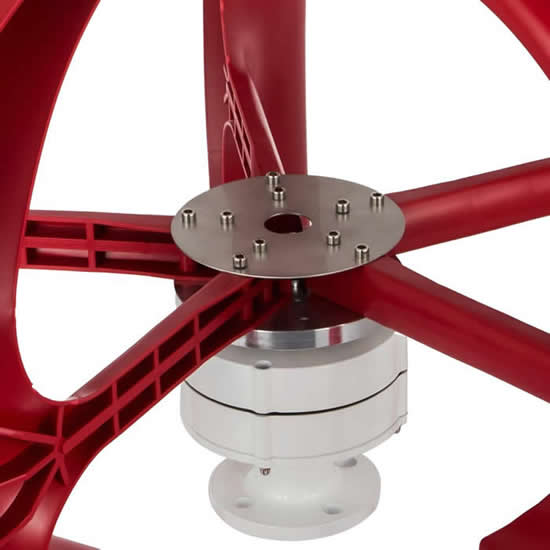

lOur generators, adopting patented permanent magnet rotor alternator, with a special kind of stator design, efficiently decrease resistance torque of the generators.
lFor use in all environments
lExcellent heat dissipation

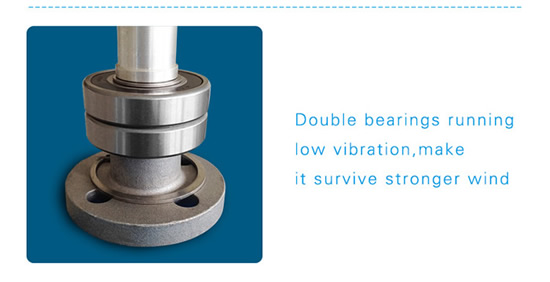

lHigh quality bearing and magnet, easy to send out quantity of heat and keep magnetic property.
lDesigned for 20-year operation life.
Parameter Data:
Model | SHJ-NEV100R | SHJ-NEV200R | SHJ-NEV300R |
Generator power | 100w | 200w | 300w |
Wheel diameter | 0.9m | 0.9m | 0.9m |
turbine height | 0.6m | 0.6m | 0.6m |

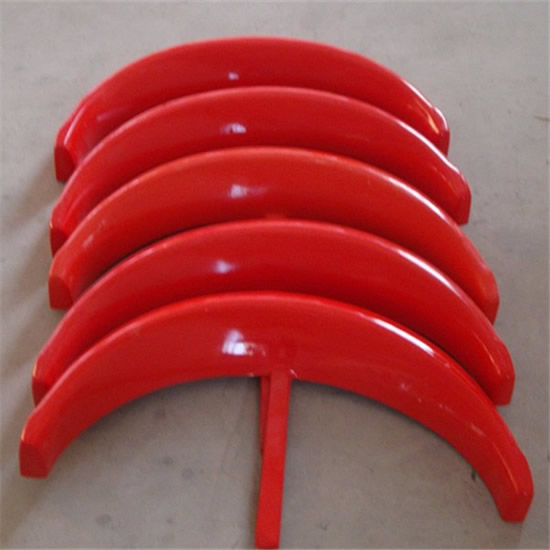

Blades material | Nylon fiber | ||
Number of blades | 5 | 5 | 5 |
Rated wind speed | 11m/s | 11m/s | 11m/s |
Start-up wind turbine | 2.5m/s | 2.5m/s | 2.5m/s |
Survival wind turbine | 45m/s | 45m/s | 45m/s |
Output voltage from controller | 12v/24VDC | 12v/24VDC | 12v/24VDC |
Net Weight | 10.6kg | 11kg | 12kg |
Generator type | 3phase AC PMG | ||
Control system | Electromagnet | ||
Speed regulation | Automatically adjust windward direction | ||
Lubrication way | Lubrication grease | ||
